CCS/IWR1642BOOST: How can I change or modify IWR1642 Traffic model?

Christopher Raymond

Part Number: IWR1642BOOST
Other Parts Discussed in Thread: IWR1642

Tool/software: Code Composer Studio

Hi I am trying to extract the the number count for traffic monitoring with the IWR1642. More specifically I just want to take that car number count that increases in a boundary that we see in the GUI. I want this value to be expressed in a program I am using called "Thing Speak" . Are you familiar with "Thing Speak" ?

over 6 years ago

0 Former Member over 6 years ago

Hello,

Please reference the GUI source code provided which demonstrates how to extract the relevant count information being displayed.

We do not support other programs.

Amanda

0 Christopher Raymond over 6 years ago in reply to Former Member

Prodigy 100 points

Is the GUI source codes in MatLab? Are you suggesting that i extract count information from MatLab.

0 Former Member over 6 years ago in reply to Christopher Raymond

Yes please refer to the documentation and source code provided. It is clearly stated in the lab user's guide that the GUI source code is provided for use with Matlab.

Amanda

0 Christopher Raymond over 6 years ago in reply to Former Member

Prodigy 100 points

Yes I see that. "Thing Speak " is a program owned by MatLab that I would like to use to extract car/people count total? Do you know what variable is being used for this in these source codes?

0 Former Member over 6 years ago in reply to Christopher Raymond

If you check the source code you could do a simple search for Target Count as seen in the GUI and you would see how the variables for the counting in each lane are updated using the variables targetCountTotal and targetCountInBox.

0 Christopher Raymond over 6 years ago in reply to Former Member

Prodigy 100 points

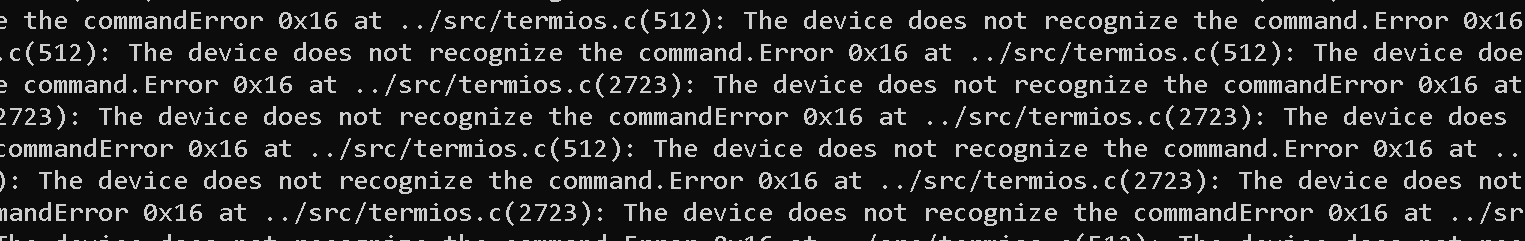

Ok thanks. This is the error i keep getting trying to visualize a simple ppl count in GUI. Any suggestions?

0 Christopher Raymond over 6 years ago in reply to Christopher Raymond

Prodigy 100 points

I figured it out disregard my last post

0 Christopher Raymond over 6 years ago in reply to Former Member

Prodigy 100 points

"matlab.webcam.internal.Utility.enumerateWebcams"...
I am getting this error in my gui code for people count. DO you know whats wrong I am using the latest matlab runtime 2017A .

0 Former Member over 6 years ago in reply to Christopher Raymond

You are likely missing the toolbox required. You can comment out the code sections referring to the webcam.

0 Christopher Raymond over 6 years ago in reply to Former Member

Prodigy 100 points

Yes. I did that I fixed this issue. The issue I have now is finding the variable count that consistently updates in the visualizer. I see the variable but its not updating as the sensor sees a person. I am currently back forth with viz.m and setup.m source codes

0 Christopher Raymond over 6 years ago in reply to Former Member

Prodigy 100 points

No appropriate method, property, or field 'UserData' for class 'matlab.graphics.GraphicsPlaceholder'.

Error in setup>btnConnect_Callback (line 264)
controlSerialPort = hUARTPort.UserData.strPort;

Error in gui_mainfcn (line 95)
feval(varargin{:});

Error in setup (line 42)
gui_mainfcn(gui_State, varargin{:});

0 Former Member over 6 years ago in reply to Christopher Raymond

Hello Christopher,

Since the original issue has been resolved if you have a new mmWave related question please start a new thread. However please note that the support scope will be limited to mmWave specific questions. For issues with modifying and working with Matlab code please refer to Matlab support resources: www.mathworks.com/.../

Amanda
