FDC2214EVM: LED

Janine Lin

Expert 2190 points

Part Number: FDC2214EVM

Dear Kristin and Clancy,

Why is it LED still at red light though it already connected to GUI?

over 6 years ago

0 Kristin Jones93 over 6 years ago

TI__Genius 17440 points

Hi Janine,

This thread explains the functions of the LEDs: e2e.ti.com/.../700086

Are you saying that only your red LDC turns on when the GUI shows that the EVM is connected?

Best Regards,

0 Janine Lin over 6 years ago in reply to Kristin Jones93

Expert 2190 points

only red RED turns on when EVM is connected to GUI.

0 Kristin Jones93 over 6 years ago in reply to Janine Lin

TI__Genius 17440 points

Are you able to read registers on the register page of the GUI? What does the Device_ID register show?

0 Janine Lin over 6 years ago in reply to Kristin Jones93

Expert 2190 points

Dear Kristin

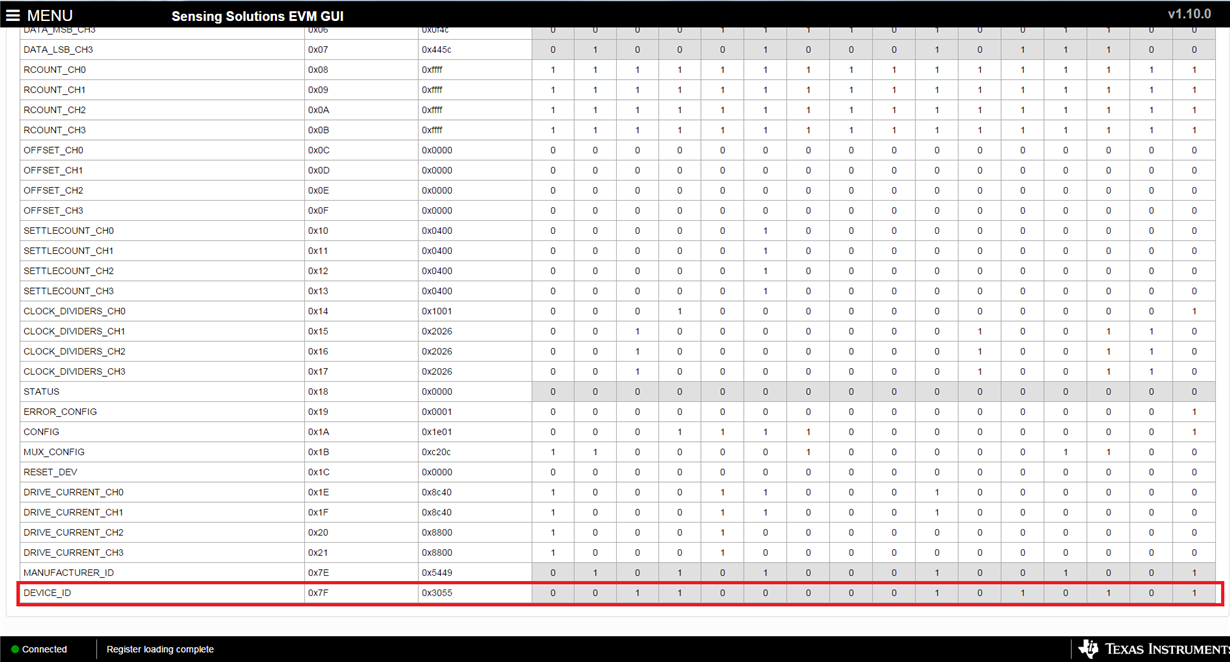

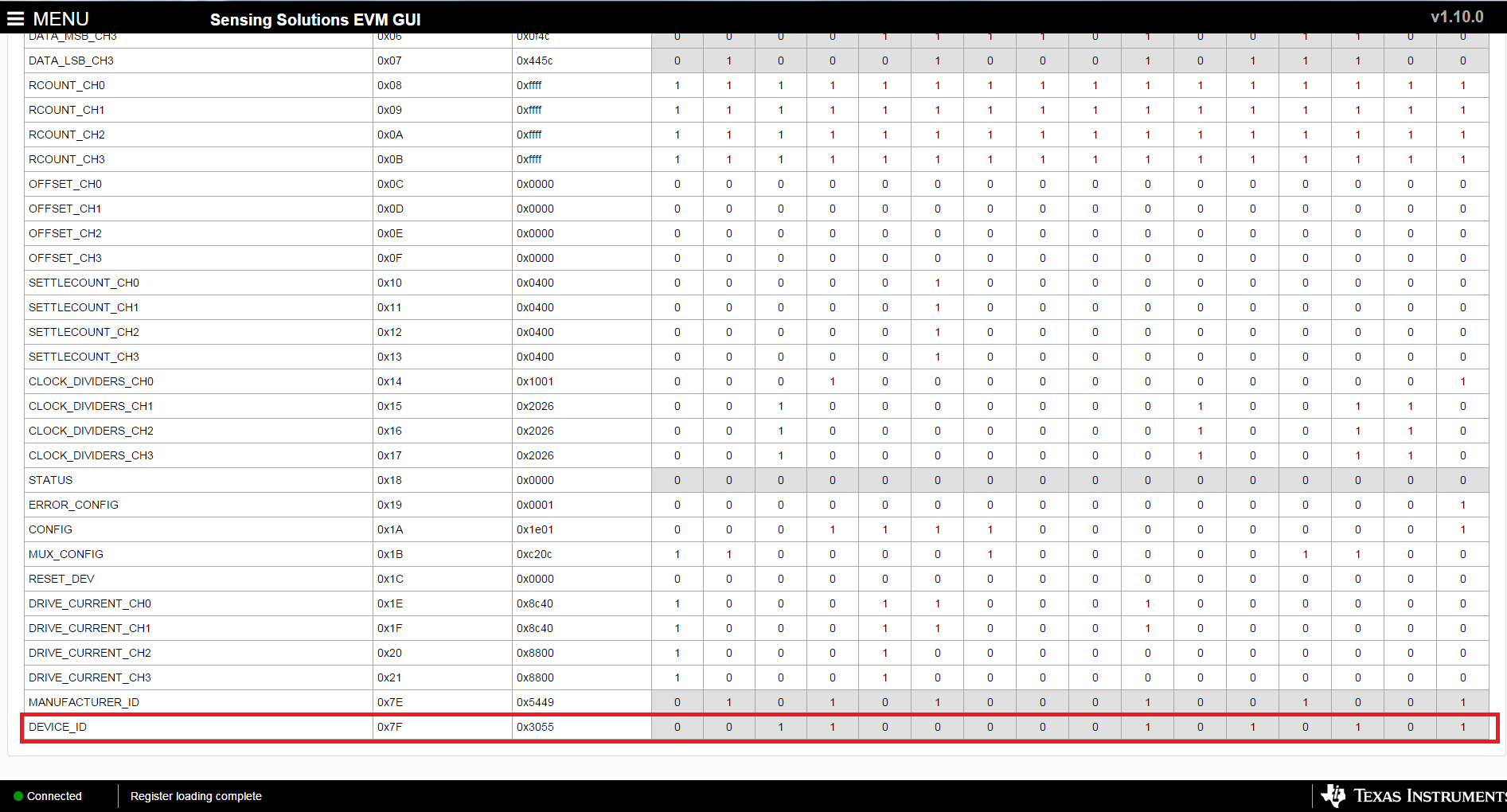

This is what it shows in the register page. Please see figure below. Thank you.

0 Janine Lin over 6 years ago in reply to Janine Lin

Expert 2190 points

Dear Kristin,

How to reset evm?

0 Janine Lin over 6 years ago in reply to Janine Lin

Expert 2190 points

Dear Kristin,

I noticed that if i only used 1 channel when its connected to GUI, LED green will light.
But, If i used 3 channels when its connected to GUI, LED red will light. Why?

Green or red light, still have a variation.

0 Kristin Jones93 over 6 years ago in reply to Janine Lin

TI__Genius 17440 points

Hi Janine,

If you are able to read and write to the registers and stream data from the GUI, I would not worry about what the LEDs are doing. They are not a critical part of the EVM's functionality.

Best Regards,

0 Janine Lin over 6 years ago in reply to Kristin Jones93

Expert 2190 points

ok Kristin. Thank you.
