AWR1843BOOST: How to obtain the radiation pattern of the antenna (far field information)

Fahed Hassanat

Part Number: AWR1843BOOST

We are trying to simulate the 1843BOOST and require the radiation pattern of the antenna (far field) to have a beam as close as possible to the actual antenna in order for the simulation to be as close as possible to reality. One recommendation is to get the ffd file from TI, but that is not available as per TI support. What is the best way to obtain that data? Thanks

over 6 years ago

0 aozer over 6 years ago

TI__Mastermind 30545 points

Hello Fahed,

If you want to do antenna simulations you will need to obtain the design files from the product page and then import the design into the simulation software.

www.ti.com/.../AWR1843BOOST

Regards,

Adrian

0 Fahed Hassanat over 6 years ago in reply to aozer

Prodigy 85 points

Thank you Adrian. I have checked the design files and I could not see any hint that points me to the far field information. Would you be so kind and point me in the right direction (file names, file extensions ...etc)? By the way, my software uses ffd file for radiation pattern, but there might be other ways to export data to an ffd should other formats exist. Thank you again.

0 aozer over 6 years ago in reply to Fahed Hassanat

TI__Mastermind 30545 points

Hello Fahed,

Can you clarify what an ffd file is? What software are you using?

Regards,

Adrian

0 Fahed Hassanat over 6 years ago in reply to aozer

Prodigy 85 points

I am using ANSYS Electronics Desktop, and I believe ffd stands for far field data, and it is basically a text file that contains the beam measurements at certain frequencies.

0 aozer over 6 years ago in reply to Fahed Hassanat

TI__Mastermind 30545 points

Hello Fahed,

Thanks, we should be able to generate the ffd file for you. Can you let us know which center frequencies you need this generated for? Also, which antenna combinations do you need this generated for? i.e. one for each TX and RX or for a certain set of TX/RX pairs?

Regards,

Adrian

0 Fahed Hassanat over 6 years ago in reply to aozer

Prodigy 85 points

Hello Adrian,

That is wonderful. As per what I know, the frequencies that should be the edges and the middle (76GHz, 81GHz and 78.5 GHz) and the software will do the interpolation for frequencies in between. As for which antenna combination I will get informed and get back to you on that.
Thank you very much for all the help.

Hello Adrian,

To follow up, this the information I got:

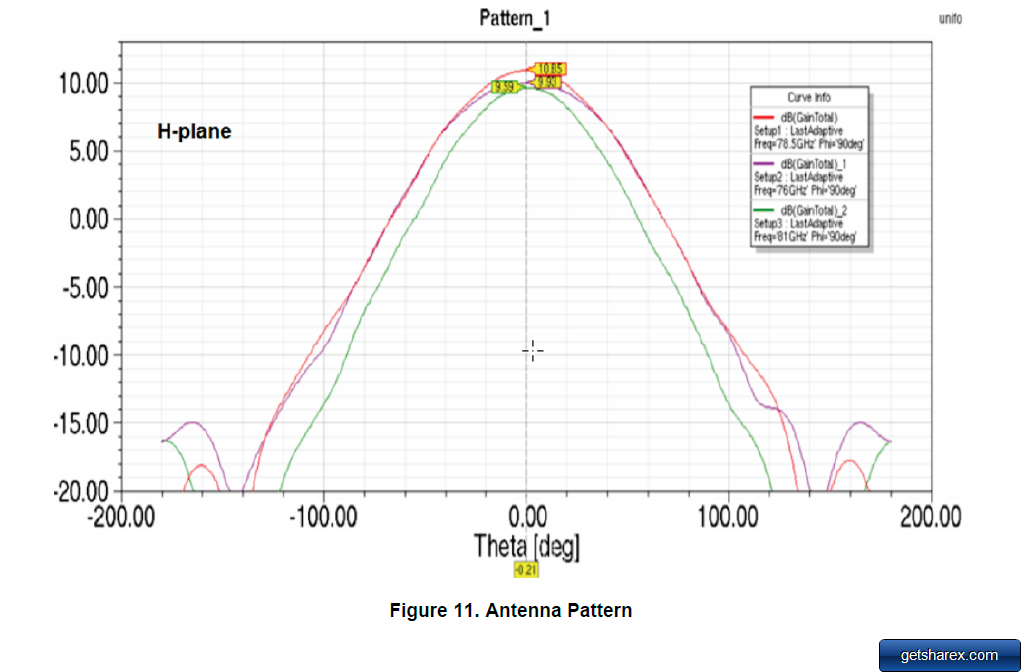

We need the same ffd as plotted here at the 3 frequencies (76, 78.5, 81):

Which is the radiation pattern of this antenna :

Which is the same for the Tx and the Rx function.

Hope this clarifies things.

0 aozer over 6 years ago in reply to Fahed Hassanat

TI__Mastermind 30545 points

Hello Fahed,

The images you have attached are not showing up. Can you try to post them again?

Regards,

Adrian

0 Fahed Hassanat over 6 years ago in reply to aozer

Prodigy 85 points

Hello Adrian,

Here are the images that were missing from the post.

0 aozer over 6 years ago in reply to Fahed Hassanat

TI__Mastermind 30545 points

Hello Fahed,

I have relayed the information to our antenna designer. He will obtain the data and I will provide it to you as soon as it is available.

Regards,

Adrian

0 Fahed Hassanat over 6 years ago in reply to aozer

Prodigy 85 points

Thank you Adrian. What would be the ETA on the ffd files?

0 aozer over 6 years ago in reply to Fahed Hassanat

TI__Mastermind 30545 points

Hello Fahed,

Attached is the data.

Regards,

Adrian

Antenna FFD.zip

0 Fahed Hassanat over 6 years ago in reply to aozer

Prodigy 85 points

Thank you Adrian. I am going to check the file and see if everything is in order. I will get back to you within the next 24 hours.

0 aozer over 6 years ago in reply to Fahed Hassanat

TI__Mastermind 30545 points

Hello Fahed,

Since I haven't heard back I will assume everything was good and close this thread. If there are any issues please start a new thread.

Regards,

Adrian
