CCS/IWR1642: Question on vitalsign host program

chunghee cho

Expert 1180 points

Part Number: IWR1642
Other Parts Discussed in Thread: IWR6843, IWR6843ISK, AWR1642

Tool/software: Code Composer Studio

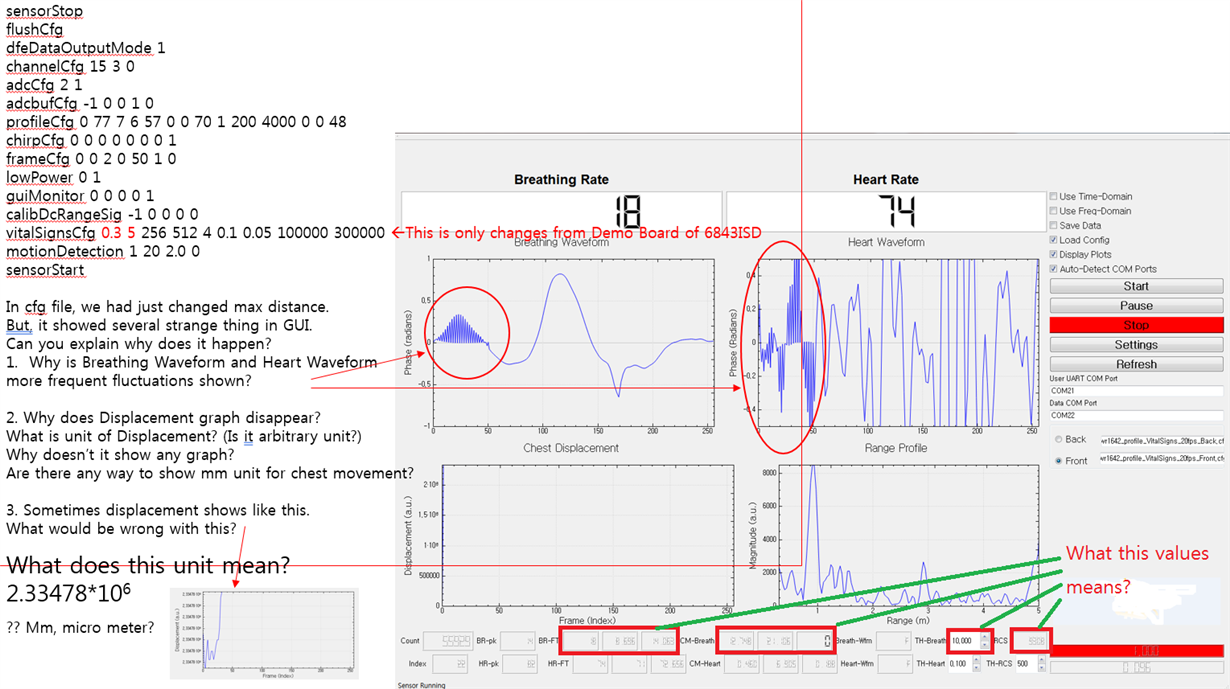

As shown below, we have asked the following questions:

Q1~Q3: is depicted inside of the attached figure.

Q4: in LCD display of the bottom lines, What is BR-FT and CM-Breath's three values? What this values means?

over 6 years ago

0 Akash Gondalia over 6 years ago

TI__Guru 50240 points

Hi Chunghee,

I'll need to discuss this with my team, please allow a few days for a response.

Cheers,

Akash

0 Kyle Cousino over 6 years ago in reply to Akash Gondalia

TI__Mastermind 24955 points

Chunghee,

Are you trying to use this lab on an IWR6843ISK board? If so, you need to use the Vital Signs lab that is designed for IWR6843 that is found in Industrial Toolbox here: http://dev.ti.com/tirex/explore/node?node=AJ3V.naK7FG5g7n7bxAw5A__VLyFKFf__LATEST

Regards,

Kyle

0 chunghee cho over 6 years ago in reply to Kyle Cousino

Expert 1180 points

I have tried both AWR1642 and IWR6843.

Screenshots have been tested with AWR1642 and automotive_toolbox.

Thank you

0 Kyle Cousino over 6 years ago in reply to chunghee cho

TI__Mastermind 24955 points

Chunghee,

You should try to specify narrower bounds on your min and max values for the "vitalSignsCfg" command. You will notice in the original CLI argument that the a min value of 0.3 and a max value of 0.9 are specified. Given these two bounds, during the interframe processing time, the DSP will iterate through all of the range bins starting at 0.3 meters to 0.9 meters and find the greatest peak in the 1D FFT. Specifying a range of 0.3 to 5 meters might be too large for the device to iterate through all of these range bins and this is why you might be seeing strange results.

Please try to narrow the bounds on the range bins of interest.

Regards,

Kyle
