RTOS/AWR1642BOOST: How to fix Rx error of CAN FD ?

WTMEC_Will Hsu

Part Number: AWR1642BOOST

Tool/software: TI-RTOS

Hi Team,
I tested lab0005_object_data_over_can on AWR1642BOOST.
I refer to ObjectDataOverCAN_GettingStartedGuide.pdfto set up my test environment.
Connect the PCAN-USBFD CAN lines to AWR1642BOOST.

The demo is working fine, but there are some error.

How to fix Rx error of CAN FD ?

From Will Hsu

over 6 years ago

0 Jitendra Gupta over 6 years ago

TI__Guru 69960 points

Hi Will,

Did you change any timing parameter in the default application?

Regards,

Jitendra

0 WTMEC_Will Hsu over 6 years ago in reply to Jitendra Gupta

Expert 2620 points

Hi Jitendra,

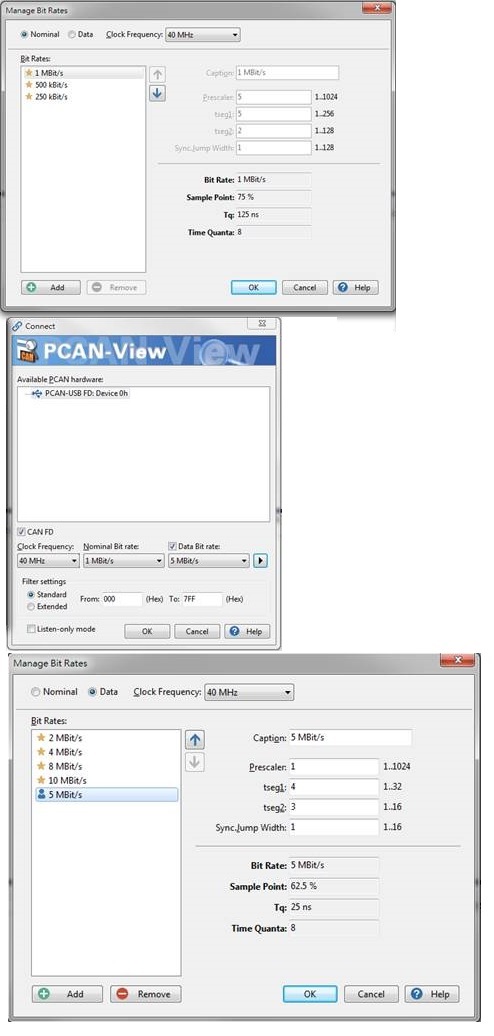

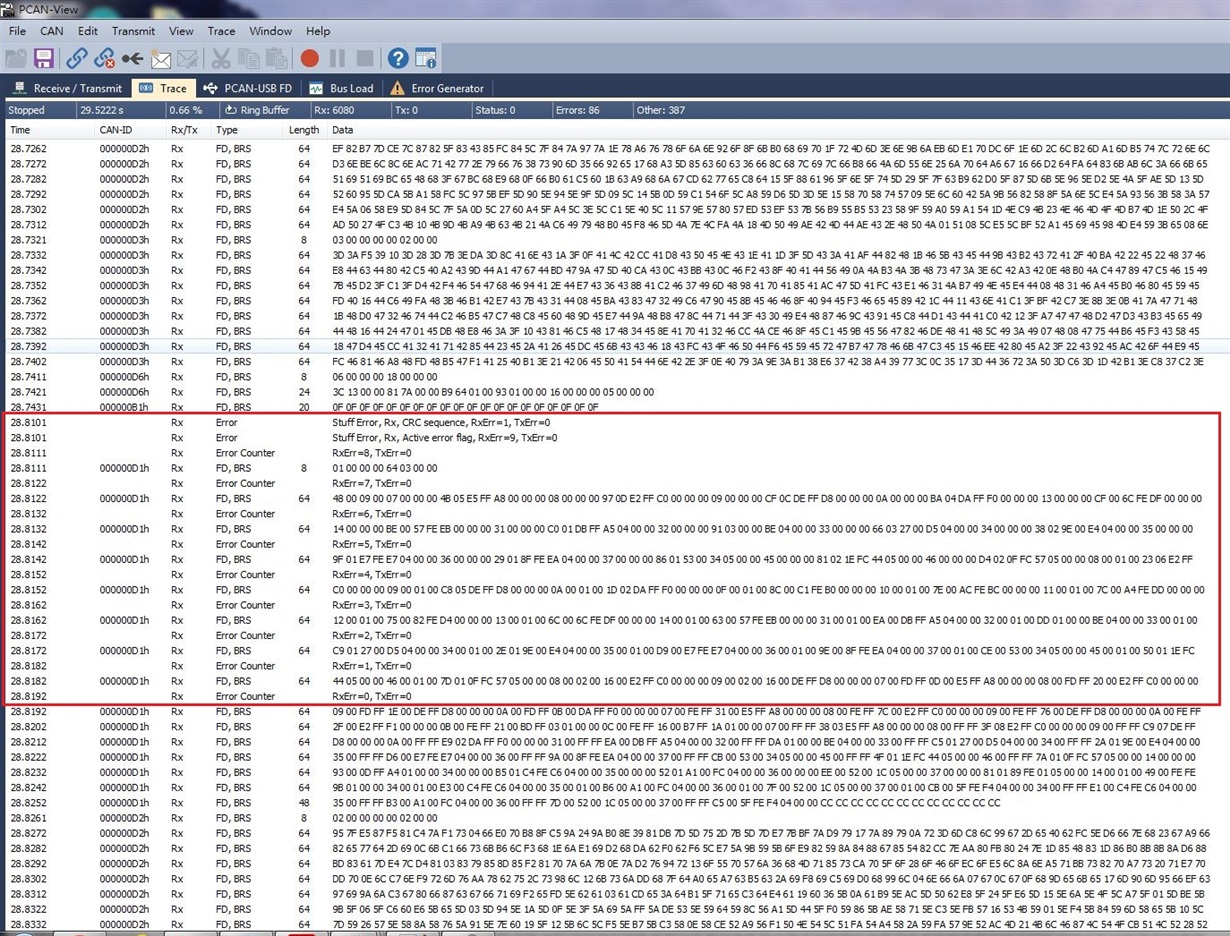

Please refer to my setting below.

0 Raghunandan Kamath over 6 years ago in reply to WTMEC_Will Hsu

TI__Mastermind 22155 points

Hsu,

When any CAN message transmission/reception fails, controller updates LEC(Last Error Code) and DLEC(Data Phase Last Error Code) fields in status register('MCAN_PSR' ).

LEC: this field is updated when error happened in arbitration phase in case of CAN FD message or during full message for classic CAN message.
DLEC: this field is updated when error happened in data phase in case of CAN FD message.

Could you provide the LEC/DLEC fields when the stuff error is seen?

Stuff Error is caused if more than 5 equal bits in a sequence have occurred in a part of a received message where this is not allowed. Do you have receive messages also coming in?

Thanks,

Raghu
