TDC7200EVM: MSP430 launch pad, TDC7200EVM, TDC7200

Asif Shafiq Khan

Part Number: TDC7200EVM
Other Parts Discussed in Thread: TDC7200,

Hi,

Is it possible for TDC7200 to skip the first start pulse in taking measurements? Actually in my application there are two pulses on the start pin with 20us delay and stop pulse comes after 2nd pulse of start pin. My hardware setting is as per TDC7200EVM board.

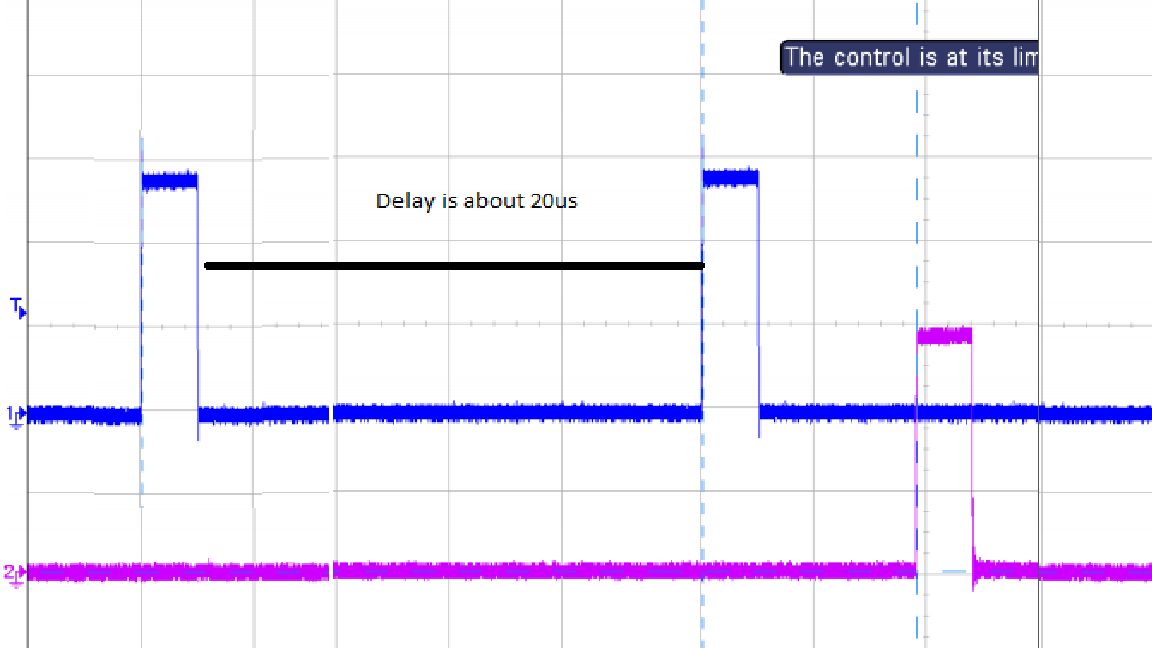

I am using TDC7200EVM GUI in mode1 for time measurements.Please let me know how can i use TDC7200EVM GUI for this task. If it is not possible with GUI than what settings should i do in writing my code. In the attached figure, blue curve is my start pulse and pink is stop pulse. Thanks

over 6 years ago

0 Bharat Aravamudhan over 6 years ago

TI__Genius 11015 points

Asif,

Let me check into issue and get back with you by Wednesday.

0 Asif Shafiq Khan over 6 years ago in reply to Bharat Aravamudhan

Prodigy 20 points

hI Bharat,

I am waiting for your response.

Thanks

0 Bharat Aravamudhan over 6 years ago in reply to Bharat Aravamudhan

TI__Genius 11015 points

Asif,

The TDC7200 is design to count the time between a single START signal and multiple STOP signals.

The GUI & TDC7200EVM cannot be modified to use only the second STOP signal.

However the INTB pins needs to be High while the device is making a measurement and is pulled low post completion of measurement.

Please try to keep the INTB pin low until the completion of the first START which you would like to skip. Then the device will only pick the second START pulse.
