CCS/AWR1843BOOST: Error on CCS when configuring GPIO for AWR1843

Tuan Hua1

Part Number: AWR1843BOOST
Other Parts Discussed in Thread: AWR1843, , SYSBIOS

Tool/software: Code Composer Studio

Hi everyone,

I am trying to implement a simple GPIO configuration for the AWR1843 BOOST module on CCS. Unfortunately, I got the error below. I tried to search on the internet but there is no hope.

I also added the following files to the workspace configuration:

Could you please help me out? Thanks for reading.

over 5 years ago

0 Jitendra Gupta over 5 years ago

TI__Guru 69960 points

Hi Tuan,

I would recommend referring mmw demo of mmWave SDK where it uses GPIO (as button switch and LED of AWR1843BOOST).

GPIO peripheral access is only applicable for MSS application not for DSS.

Add these to include library and search path.

${COM_TI_MMWAVE_SDK_LIBRARIES}
${BIOS_LIBRARIES}
libosal_xwr16xx.aer4f
libgpio_xwr16xx.aer4f
libpinmux_xwr16xx.aer4f
rtsv7R4_T_le_v3D16_eabi.lib
libc.a

${COM_TI_MMWAVE_SDK_LIBRARY_PATH}
${BIOS_LIBRARY_PATH}
${CG_TOOL_ROOT}/lib
${COM_TI_MMWAVE_SDK_INSTALL_DIR}/packages/ti/drivers/gpio/lib
${COM_TI_MMWAVE_SDK_INSTALL_DIR}/packages/ti/drivers/osal/lib
${COM_TI_MMWAVE_SDK_INSTALL_DIR}/packages/ti/drivers/pinmux/lib
${CG_TOOL_ROOT}/include

Regards.

Jitendra.

0 Tuan Hua1 over 5 years ago in reply to Jitendra Gupta

Prodigy 170 points

Hi Jitendra,

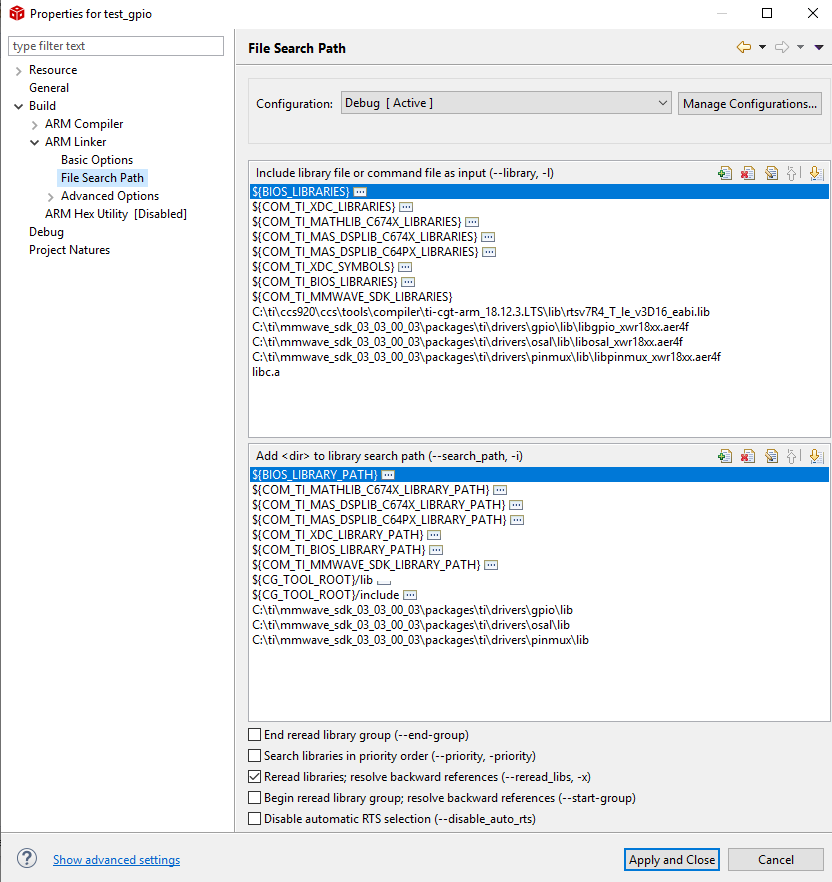

I have included the library and search path as you showed, but the errors are not fixed.

0 Jitendra Gupta over 5 years ago in reply to Tuan Hua1

TI__Guru 69960 points

Hi Tuan,

Here is the project setting what I build for GPIO (pinmux, soc, osal) featured CCS application project

And Predefined symbols under Project Properties-> Build-> ARM Compiler -> Predefined Symbols---->

${COM_TI_MMWAVE_SDK_SYMBOLS}
${BIOS_SYMBOLS}
SOC_XWR16XX
SUBSYS_MSS

I tried the CCS project (MSS) from this location and added GPIO, pinmux feature in the MSS application with the above project settings which works at my end.

Regards,

Jitendra
