FDC1004EVM: FDC1004EVM to measure height in cylinder tube

Ofer Bendet

Prodigy 120 points

Part Number: FDC1004EVM
Other Parts Discussed in Thread: FDC1004, TIDA-00317

Hi,

I have to measure height of water in a cylinder.

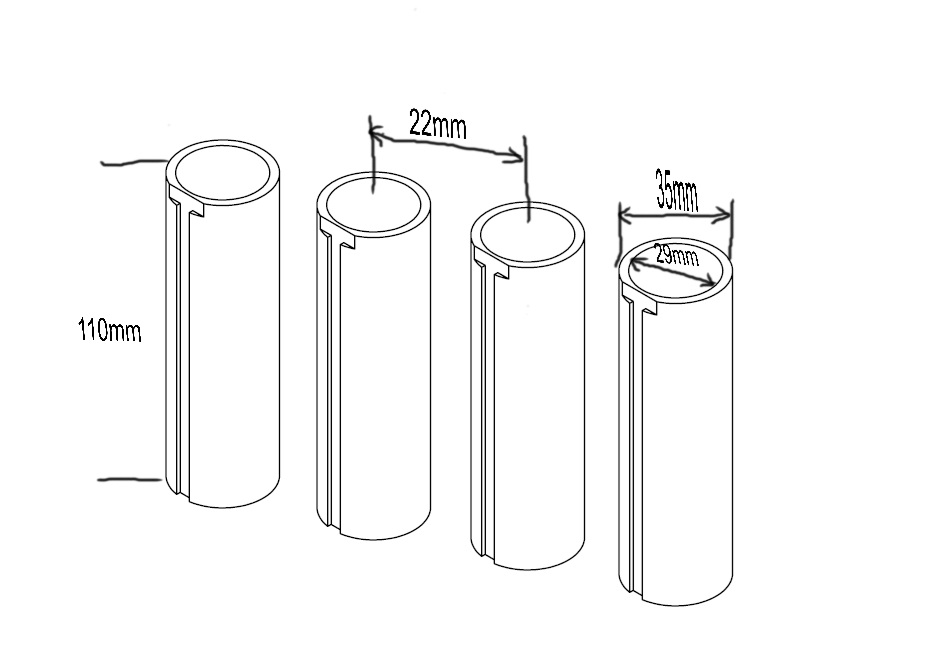

We have 4 cylinders side by side with distance of 22 mm between the centers.

Cylinder Dimensions:

Outer Diameter (O.D): 35 mm
Inner Diameter (I.D): 35 mm
Height : 110 mm

Please advice ,what is the best capacitive sensing method for our application?

Thanks,

Ofer

over 5 years ago

0 Arjun_Prakash over 5 years ago

TI__Expert 7599 points

Hello Ofer,

Thanks for using TI solutions. The FDC1004 is the part that can be a target for liquid level sensing applications. To Begin with please refer to the design guide of using our solutions to measure liquid.

http://www.ti.com/tool/TIDA-00317

For your application, you may need a sensor per tube to monitor the liquid. The app note does describe and provide guidance on designing the sensor and also provide the basics to help scale the design for different applications.

0 Ofer Bendet over 5 years ago in reply to Arjun_Prakash

Prodigy 120 points

Hello Arjun,

Thanks for your reply,

I'm familiar with TIDA-00317 document and I'm considering to buy/manufacture few (10) sensors based on this document for testing purposes.

Your help with the following will be much appreciated:

Can you recommend on the best solution for my application?
Do you know where I can buy TIDA-00317 or similar sensor, for the best of my knowledge, TI doesn't offer/sell the sensor.

Thanks,

Ofer

0 Sharath Vallamkonda over 5 years ago in reply to Ofer Bendet

TI__Expert 3435 points

Hi Ofer,

I am closing this thread as I followed up on the other thread

https://e2e.ti.com/support/sensors/f/1023/p/878323/3274761#3274761

Sharath.
