AWR1243: The packet formats supported on AWR22xx/AWR12xx devices.

w w3

Part Number: AWR1243
Other Parts Discussed in Thread: AWR1642, , AWR2243

Hi，

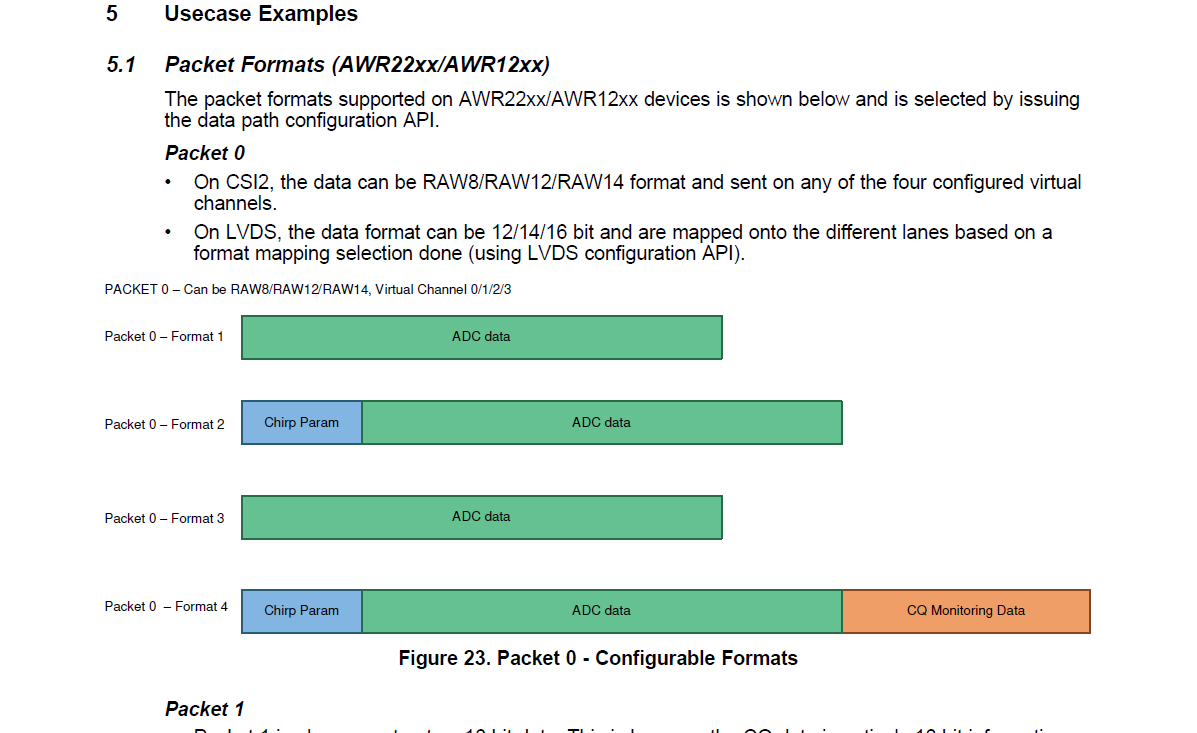

In the AWR1xx and AWR22xx Data Path Programmer’s Guide.pdf there is something talk about Packet Formats (AWR22xx/AWR12xx) in 5.1.I don’t understand what it means.

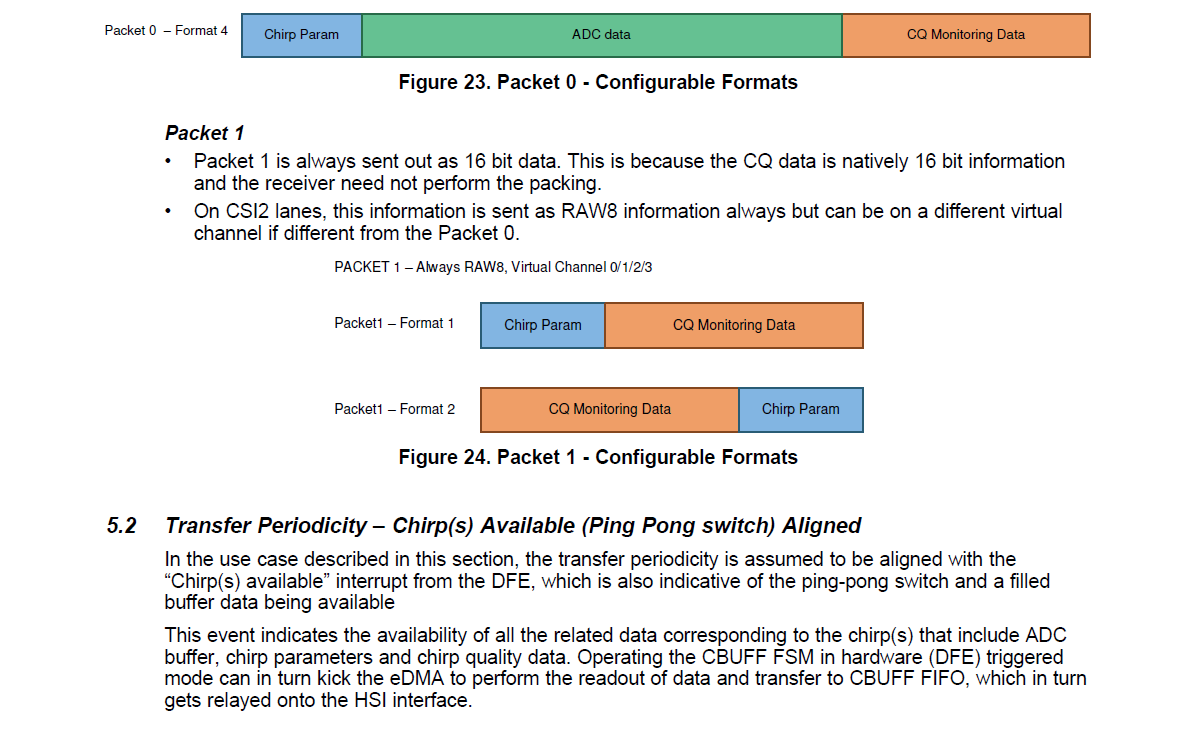

1. Is packet1 necessary?And is packet1 after packet0?

2.Are all the data collected by AWR1243 packaged and then output for signal processing?Is the data collected by AWR1642 also packaged and output?

Waiting for your reply.thank you.

over 5 years ago

0 Jitendra Gupta over 5 years ago

TI__Guru 69960 points

Packet 1 & 2 format depends on the configuration you do on the device. CP/CQ data can be sent as seperate packet2 and ADC in packet1 to simplify the end capture and processing. These option can be opted based on the host processor CSI-2 interface capability.

Refer the interface control document (ICD) [AWR_DEV_RX_DATA_PATH_CONF_SET_SB]

Regards,

Jitendra
