MMWCAS-RF-EVM: Raw data and postprocess

vincent fayet1
Intellectual 365 points
Part Number: MMWCAS-RF-EVM
Other Parts Discussed in Thread: AWR1243, AWR2243

Hello

I am trying to postprocess data from a MMWCAS-RF-EVM with AWR2243p mmwave chips but in am facing an issue with the content of binaries files.

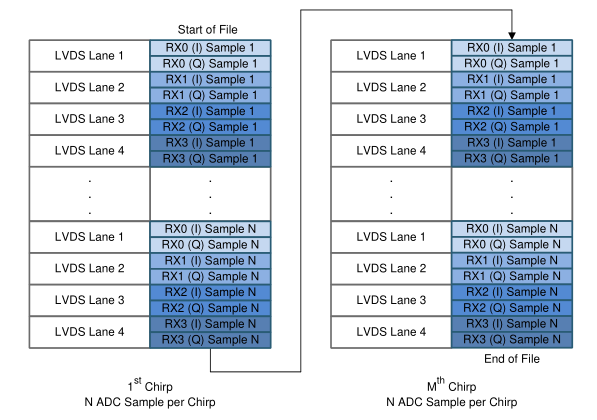

I found the following picture concerning raw data for WR12 and 14 but that seems to be different with wr22.

I have configured my evaluation board using "Cascade_Configuration_MIMO.lua" script with the "xwr22xx_metaImage.bin"

Can someone explain how data are stored inside 4 binaries files extracted from the DSP EVM SSD ?
