AWR2243BOOST: Confusion about AWR2243BOOST RX antennas

Hangyu Liu

Part Number: AWR2243BOOST
Other Parts Discussed in Thread: AWR1243BOOST

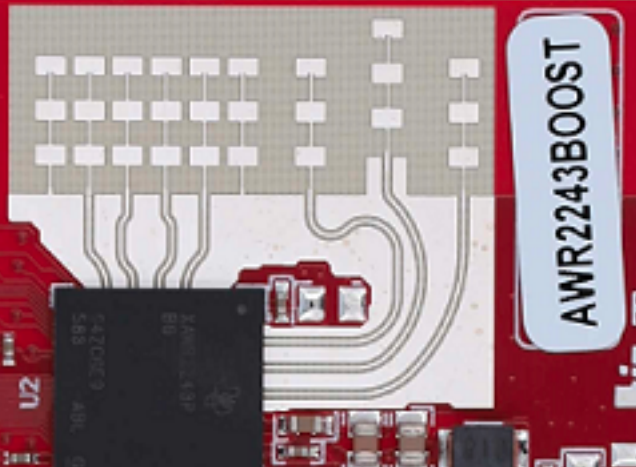

As shown in the figure above, there are two additional antennas connected to the copper plane besides the four RX antennas.

I'm confused about these two "antennas". I have noticed this type of design in several other EVM such as AWR1243BOOST and mmWave cascaded imaging radar.

So what's the function of this design? In other words, what would happen if there were not these two "antennas"?

over 5 years ago

0 Ishita Kochar over 5 years ago

TI__Mastermind 31680 points

Hello,

Please refer to the below thread:

Regards,

Ishita

0 Hangyu Liu over 5 years ago in reply to Ishita Kochar

Prodigy 80 points

I have browsed the URL contents you provided. Is it means that if there were no "dummy" antennas, RX antennas in the middle of the array would be slightly different from those on the sides in performance? In other words, these two "dummy" antennas keep the four RX antennas working "uniformly", is that right?

0 Ishita Kochar over 5 years ago in reply to Hangyu Liu

TI__Mastermind 31680 points

Hello,

Yes, that is correct, dummy antennas are for a symmetric performance across all RXs.

Regards,

Ishita
