IWR6843: How to burn a .bin image to IWR6843 through a MCU?

hui Chen

Part Number: IWR6843
Other Parts Discussed in Thread: UNIFLASH,

Hi Support team

In my application, there is a MCU(STM32F103) to control the whole board. IWR6843 RS232_RX/RS232_TX(CFG UART) are connected to MCU’s UART0, MSS_logger is connected to MCU’s UART1. The .bin image has been stored in a FLASH which is connected to MCU’s SPI interface. Now I want to use MCU to burn the IWR6843 (Using MCU firmware to simulate the function of UniFlash), are there some examples/DEMO available?

Thanks

over 5 years ago

0 Charles Oladimeji over 5 years ago

TI__Mastermind 33805 points

Hi,

Please see linked post below. it discusses the available example for running without SFLASH connected using the SPI interface.

https://e2e.ti.com/support/sensors/f/1023/p/923940/3417773#3417773

Regards,

Charles O

0 hui Chen over 5 years ago in reply to Charles Oladimeji

Intellectual 450 points

I have studied the case and the thread, it looks that is not what I want. :(

There is no other SPI interface in my MCU, all of them are used for other purposes( SPI flash, sensor and so on), so I have to use UART to burn the flash of IWR6843.

So, is there more information about this usage available?

Regards

0 hui Chen over 5 years ago in reply to Charles Oladimeji

Intellectual 450 points

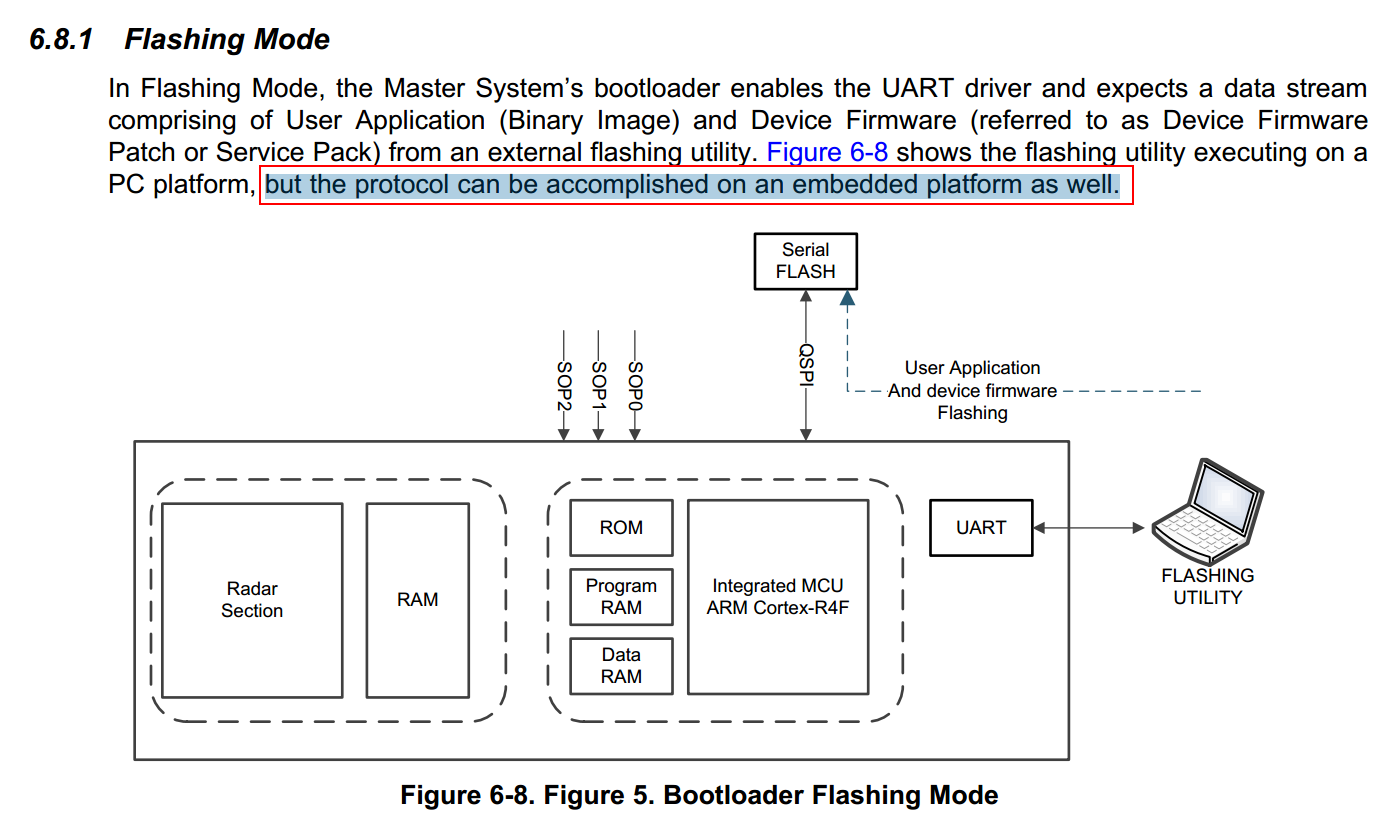

More details about what I want to do is below. :)

Regards

0 Charles Oladimeji over 5 years ago in reply to hui Chen

TI__Mastermind 33805 points

Hi,

The process of flashing can be accomplished at an embedded platform level, flashing here means downloading the binary to the the SFLASH connected to the QSPI lines of the IWR6843.

However, can you confirm if Bootmode – UART paragraph of section 4.4 applies to your application. Please note that we do not currently provide example for this.

https://www.ti.com/lit/an/swra551/swra551.pdf

Regards,

Charles O

0 hui Chen over 5 years ago in reply to Charles Oladimeji

Intellectual 450 points

The description in the section 4.4 applies to my application fully, however it looks too brief to guide us to complete the firmware design. For example, the initial handshake starts with a UART break issued
by the external host. how to generate a "UART Break "? Is this a command code or a hardware signal?

Could you help to promote the R&D to develop a example?

Regards

0 Charles Oladimeji over 5 years ago in reply to hui Chen

TI__Mastermind 33805 points

Hi,

The UART Break is a command code.

There is currently no set timeline for this example.

Please refer to Page13 of the 6843 bootloader appnote: https://www.ti.com/lit/an/swra627/swra627.pdf

The bootloading over the UART also follows the same sequence as flashing sequence.The METAIMAGE received over the UART is interpreted and loaded to the appropriate memories. Once the bootloading is complete, the ROM is eclipsed and execution control is passed to the application residing in MSS TCMA. The METAIMAGE should not have the CRC32 appended (unlike the image to be flashed)

Changes needed:

The open command should select the Storage type SRAM (Value: 4)

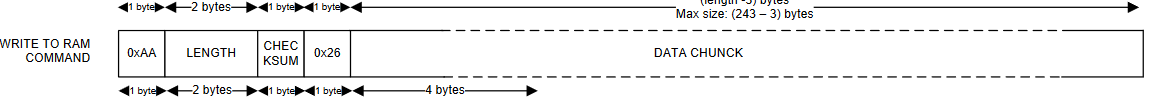

The ‘WRITE to SRAM” command is to be used for writing.

Regards,

Charles O

0 hui Chen over 5 years ago in reply to Charles Oladimeji

Intellectual 450 points

Hi Thanks for your reply, I will study this case and have a try. :)
