Other Parts Discussed in Thread: AWR1843
Hi,

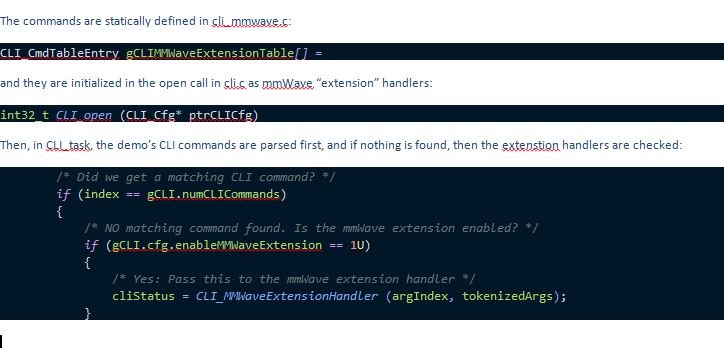

1) What c file in the demo takes the inputs from the CLI script and configures the AWR1843 demo (SDK 3.2 or 3.4)? The mmw_cli.c file in the mss folder, unlike the cli.c file in SDK2.0, looks like it only configures the data processing parts of the AWR, like CFAR, clutterRemoval, LVDS, etc. See attachment below. Where is BPM configured?
/*
* @file mmw_cli.c
*
* @brief
* Mmw (Milli-meter wave) DEMO CLI Implementation
*
* \par
* NOTE:
* (C) Copyright 2018 Texas Instruments, Inc.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the
* distribution.
*
* Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
* "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
* LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
* A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
* OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
* LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
* DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
* THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
* OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/**************************************************************************
*************************** Include Files ********************************
**************************************************************************/
/* Standard Include Files. */
#include <stdint.h>
#include <stdlib.h>
#include <stddef.h>
#include <string.h>
#include <stdio.h>
/* BIOS/XDC Include Files. */
#include <xdc/runtime/System.h>
/* mmWave SDK Include Files: */
#include <ti/common/sys_common.h>
#include <ti/common/mmwave_sdk_version.h>
#include <ti/drivers/uart/UART.h>
#include <ti/control/mmwavelink/mmwavelink.h>
#include <ti/utils/cli/cli.h>
#include <ti/utils/mathutils/mathutils.h>
/* Demo Include Files */
#include <ti/demo/xwr18xx/mmw/include/mmw_config.h>
#include <ti/demo/xwr18xx/mmw/mss/mmw_mss.h>
#include <ti/demo/utils/mmwdemo_adcconfig.h>
#include <ti/demo/utils/mmwdemo_rfparser.h>
/**************************************************************************
*************************** Local function prototype****************************
**************************************************************************/
/* CLI Extended Command Functions */
static int32_t MmwDemo_CLICfarCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIMultiObjBeamForming (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLICalibDcRangeSig (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIClutterRemoval (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLISensorStart (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLISensorStop (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIGuiMonSel (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIADCBufCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLICompRangeBiasAndRxChanPhaseCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIMeasureRangeBiasAndRxChanPhaseCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLICfarFovCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIAoAFovCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIExtendedMaxVelocity (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIChirpQualityRxSatMonCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIChirpQualitySigImgMonCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIAnalogMonitorCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLILvdsStreamCfg (int32_t argc, char* argv[]);
static int32_t MmwDemo_CLIConfigDataPort (int32_t argc, char* argv[]);
/**************************************************************************
*************************** Extern Definitions *******************************
**************************************************************************/
extern MmwDemo_MSS_MCB gMmwMssMCB;
/**************************************************************************
*************************** Local Definitions ****************************
**************************************************************************/
#define MMWDEMO_DATAUART_MAX_BAUDRATE_SUPPORTED 3125000
/**************************************************************************
*************************** CLI Function Definitions **************************
**************************************************************************/
/**
* @b Description
* @n
* This is the CLI Handler for the sensor start command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLISensorStart (int32_t argc, char* argv[])
{
bool doReconfig = true;
int32_t retVal = 0;
/* Only following command syntax will be supported
sensorStart
sensorStart 0
*/
if (argc == 2)
{
doReconfig = (bool) atoi (argv[1]);
if (doReconfig == true)
{
CLI_write ("Error: Reconfig is not supported, only argument of 0 is\n"
"(do not reconfig, just re-start the sensor) valid\n");
return -1;
}
}
else
{
/* In case there is no argument for sensorStart, always do reconfig */
doReconfig = true;
}
/***********************************************************************************
* Do sensor state management to influence the sensor actions
***********************************************************************************/
/* Error checking initial state: no partial config is allowed
until the first sucessful sensor start state */
if ((gMmwMssMCB.sensorState == MmwDemo_SensorState_INIT) ||
(gMmwMssMCB.sensorState == MmwDemo_SensorState_OPENED))
{
MMWave_CtrlCfg ctrlCfg;
/* need to get number of sub-frames so that next function to check
* pending state can work */
CLI_getMMWaveExtensionConfig (&ctrlCfg);
gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.numSubFrames =
MmwDemo_RFParser_getNumSubFrames(&ctrlCfg);
if (MmwDemo_isAllCfgInPendingState() == 0)
{
CLI_write ("Error: Full configuration must be provided before sensor can be started "
"the first time\n");
/* Although not strictly needed, bring back to the initial value since we
* are rejecting this first time configuration, prevents misleading debug. */
gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.numSubFrames = 0;
return -1;
}
}
if (gMmwMssMCB.sensorState == MmwDemo_SensorState_STARTED)
{
CLI_write ("Ignored: Sensor is already started\n");
return 0;
}
if (doReconfig == false)
{
/* User intends to issue sensor start without config, check if no
config was issued after stop and generate error if this is the case. */
if (MmwDemo_isAllCfgInNonPendingState() == 0)
{
/* Message user differently if all config was issued or partial config was
issued. */
if (MmwDemo_isAllCfgInPendingState())
{
CLI_write ("Error: You have provided complete new configuration, "
"issue \"sensorStart\" (without argument) if you want it to "
"take effect\n");
}
else
{
CLI_write ("Error: You have provided partial configuration between stop and this "
"command and partial configuration cannot be undone."
"Issue the full configuration and do \"sensorStart\" \n");
}
return -1;
}
}
else
{
/* User intends to issue sensor start with full config, check if all config
was issued after stop and generate error if is the case. */
MMWave_CtrlCfg ctrlCfg;
/* need to get number of sub-frames so that next function to check
* pending state can work */
CLI_getMMWaveExtensionConfig (&ctrlCfg);
gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.numSubFrames =
MmwDemo_RFParser_getNumSubFrames(&ctrlCfg);
if (MmwDemo_isAllCfgInPendingState() == 0)
{
/* Message user differently if no config was issued or partial config was
issued. */
if (MmwDemo_isAllCfgInNonPendingState())
{
CLI_write ("Error: You have provided no configuration, "
"issue \"sensorStart 0\" OR provide "
"full configuration and issue \"sensorStart\"\n");
}
else
{
CLI_write ("Error: You have provided partial configuration between stop and this "
"command and partial configuration cannot be undone."
"Issue the full configuration and do \"sensorStart\" \n");
}
/* Although not strictly needed, bring back to the initial value since we
* are rejecting this first time configuration, prevents misleading debug. */
gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.numSubFrames = 0;
return -1;
}
}
/***********************************************************************************
* Retreive and check mmwave Open related config before calling openSensor
***********************************************************************************/
/* Fill demo's MCB mmWave openCfg structure from the CLI configs*/
if (gMmwMssMCB.sensorState == MmwDemo_SensorState_INIT)
{
/* Get the open configuration: */
CLI_getMMWaveExtensionOpenConfig (&gMmwMssMCB.cfg.openCfg);
/* call sensor open */
retVal = MmwDemo_openSensor(true);
if(retVal != 0)
{
return -1;
}
gMmwMssMCB.sensorState = MmwDemo_SensorState_OPENED;
}
else
{
/* openCfg related configurations like chCfg, lowPowerMode, adcCfg
* are only used on the first sensor start. If they are different
* on a subsequent sensor start, then generate a fatal error
* so the user does not think that the new (changed) configuration
* takes effect, the board needs to be reboot for the new
* configuration to be applied.
*/
MMWave_OpenCfg openCfg;
CLI_getMMWaveExtensionOpenConfig (&openCfg);
/* Compare openCfg->chCfg*/
if(memcmp((void *)&gMmwMssMCB.cfg.openCfg.chCfg, (void *)&openCfg.chCfg,
sizeof(rlChanCfg_t)) != 0)
{
MmwDemo_debugAssert(0);
}
/* Compare openCfg->lowPowerMode*/
if(memcmp((void *)&gMmwMssMCB.cfg.openCfg.lowPowerMode, (void *)&openCfg.lowPowerMode,
sizeof(rlLowPowerModeCfg_t)) != 0)
{
MmwDemo_debugAssert(0);
}
/* Compare openCfg->adcOutCfg*/
if(memcmp((void *)&gMmwMssMCB.cfg.openCfg.adcOutCfg, (void *)&openCfg.adcOutCfg,
sizeof(rlAdcOutCfg_t)) != 0)
{
MmwDemo_debugAssert(0);
}
}
/***********************************************************************************
* Retrieve mmwave Control related config before calling startSensor
***********************************************************************************/
/* Get the mmWave ctrlCfg from the CLI mmWave Extension */
if(doReconfig)
{
/* if MmwDemo_openSensor has non-first time related processing, call here again*/
/* call sensor config */
CLI_getMMWaveExtensionConfig (&gMmwMssMCB.cfg.ctrlCfg);
retVal = MmwDemo_configSensor();
if(retVal != 0)
{
return -1;
}
}
retVal = MmwDemo_startSensor();
if(retVal != 0)
{
return -1;
}
/***********************************************************************************
* Set the state
***********************************************************************************/
gMmwMssMCB.sensorState = MmwDemo_SensorState_STARTED;
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the sensor stop command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLISensorStop (int32_t argc, char* argv[])
{
if ((gMmwMssMCB.sensorState == MmwDemo_SensorState_STOPPED) ||
(gMmwMssMCB.sensorState == MmwDemo_SensorState_INIT) ||
(gMmwMssMCB.sensorState == MmwDemo_SensorState_OPENED))
{
CLI_write ("Ignored: Sensor is already stopped\n");
return 0;
}
MmwDemo_stopSensor();
MmwDemo_resetStaticCfgPendingState();
gMmwMssMCB.sensorState = MmwDemo_SensorState_STOPPED;
return 0;
}
/**
* @b Description
* @n
* Utility function to get sub-frame number
*
* @param[in] argc Number of arguments
* @param[in] argv Arguments
* @param[in] expectedArgc Expected number of arguments
* @param[out] subFrameNum Sub-frame Number (0 based)
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIGetSubframe (int32_t argc, char* argv[], int32_t expectedArgc,
int8_t* subFrameNum)
{
int8_t subframe;
/* Sanity Check: Minimum argument check */
if (argc != expectedArgc)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/*Subframe info is always in position 1*/
subframe = (int8_t) atoi(argv[1]);
if(subframe >= (int8_t)RL_MAX_SUBFRAMES)
{
CLI_write ("Error: Subframe number is invalid\n");
return -1;
}
*subFrameNum = (int8_t)subframe;
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for gui monitoring configuration
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIGuiMonSel (int32_t argc, char* argv[])
{
MmwDemo_GuiMonSel guiMonSel;
int8_t subFrameNum;
if(MmwDemo_CLIGetSubframe(argc, argv, 8, &subFrameNum) < 0)
{
return -1;
}
/* Initialize the guiMonSel configuration: */
memset ((void *)&guiMonSel, 0, sizeof(MmwDemo_GuiMonSel));
/* Populate configuration: */
guiMonSel.detectedObjects = atoi (argv[2]);
guiMonSel.logMagRange = atoi (argv[3]);
guiMonSel.noiseProfile = atoi (argv[4]);
guiMonSel.rangeAzimuthHeatMap = atoi (argv[5]);
guiMonSel.rangeDopplerHeatMap = atoi (argv[6]);
guiMonSel.statsInfo = atoi (argv[7]);
MmwDemo_CfgUpdate((void *)&guiMonSel, MMWDEMO_GUIMONSEL_OFFSET,
sizeof(MmwDemo_GuiMonSel), subFrameNum);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for CFAR configuration
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLICfarCfg (int32_t argc, char* argv[])
{
DPU_CFARCAProc_CfarCfg cfarCfg;
uint32_t procDirection;
int8_t subFrameNum;
float threshold;
if(MmwDemo_CLIGetSubframe(argc, argv, 10, &subFrameNum) < 0)
{
return -1;
}
/* Initialize configuration: */
memset ((void *)&cfarCfg, 0, sizeof(cfarCfg));
/* Populate configuration: */
procDirection = (uint32_t) atoi (argv[2]);
cfarCfg.averageMode = (uint8_t) atoi (argv[3]);
cfarCfg.winLen = (uint8_t) atoi (argv[4]);
cfarCfg.guardLen = (uint8_t) atoi (argv[5]);
cfarCfg.noiseDivShift = (uint8_t) atoi (argv[6]);
cfarCfg.cyclicMode = (uint8_t) atoi (argv[7]);
threshold = (float) atof (argv[8]);
cfarCfg.peakGroupingEn = (uint8_t) atoi (argv[9]);
if (threshold > 100.0)
{
CLI_write("Error: Maximum value for CFAR thresholdScale is 100.0 dB.\n");
return -1;
}
/* threshold is a float value from 0-100dB. It needs to
be later converted to linear scale (conversion can only be done
when the number of virtual antennas is known) before passing it
to CFAR DPU.
For now, the threshold will be coded in a 16bit integer in the following
way:
suppose threshold is a float represented as XYZ.ABC
it will be saved as a 16bit integer XYZAB
that is, 2 decimal cases are saved.*/
threshold = threshold * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR;
cfarCfg.thresholdScale = (uint16_t) threshold;
/* Save Configuration to use later */
if (procDirection == 0)
{
MmwDemo_CfgUpdate((void *)&cfarCfg, MMWDEMO_CFARCFGRANGE_OFFSET,
sizeof(cfarCfg), subFrameNum);
}
else
{
MmwDemo_CfgUpdate((void *)&cfarCfg, MMWDEMO_CFARCFGDOPPLER_OFFSET,
sizeof(cfarCfg), subFrameNum);
}
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for CFAR FOV (Field Of View) configuration
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLICfarFovCfg (int32_t argc, char* argv[])
{
DPU_CFARCAProc_FovCfg fovCfg;
uint32_t procDirection;
int8_t subFrameNum;
if(MmwDemo_CLIGetSubframe(argc, argv, 5, &subFrameNum) < 0)
{
return -1;
}
/* Initialize configuration: */
memset ((void *)&fovCfg, 0, sizeof(fovCfg));
/* Populate configuration: */
procDirection = (uint32_t) atoi (argv[2]);
fovCfg.min = (float) atof (argv[3]);
fovCfg.max = (float) atof (argv[4]);
/* Save Configuration to use later */
if (procDirection == 0)
{
MmwDemo_CfgUpdate((void *)&fovCfg, MMWDEMO_FOVRANGE_OFFSET,
sizeof(fovCfg), subFrameNum);
}
else
{
MmwDemo_CfgUpdate((void *)&fovCfg, MMWDEMO_FOVDOPPLER_OFFSET,
sizeof(fovCfg), subFrameNum);
}
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for AoA FOV (Field Of View) configuration
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIAoAFovCfg (int32_t argc, char* argv[])
{
DPU_AoAProc_FovAoaCfg fovCfg;
int8_t subFrameNum;
if(MmwDemo_CLIGetSubframe(argc, argv, 6, &subFrameNum) < 0)
{
return -1;
}
/* Initialize configuration: */
memset ((void *)&fovCfg, 0, sizeof(fovCfg));
/* Populate configuration: */
fovCfg.minAzimuthDeg = (float) atoi (argv[2]);
fovCfg.maxAzimuthDeg = (float) atoi (argv[3]);
fovCfg.minElevationDeg = (float) atoi (argv[4]);
fovCfg.maxElevationDeg = (float) atoi (argv[5]);
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&fovCfg, MMWDEMO_FOVAOA_OFFSET,
sizeof(fovCfg), subFrameNum);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for extended maximum velocity configuration
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIExtendedMaxVelocity (int32_t argc, char* argv[])
{
DPU_AoAProc_ExtendedMaxVelocityCfg cfg;
int8_t subFrameNum;
if(MmwDemo_CLIGetSubframe(argc, argv, 3, &subFrameNum) < 0)
{
return -1;
}
/* Initialize configuration: */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.enabled = (uint8_t) atoi (argv[2]);
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&cfg, MMWDEMO_EXTMAXVEL_OFFSET,
sizeof(cfg), subFrameNum);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for multi object beam forming configuration
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIMultiObjBeamForming (int32_t argc, char* argv[])
{
DPU_AoAProc_MultiObjBeamFormingCfg cfg;
int8_t subFrameNum;
if(MmwDemo_CLIGetSubframe(argc, argv, 4, &subFrameNum) < 0)
{
return -1;
}
/* Initialize configuration: */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.enabled = (uint8_t) atoi (argv[2]);
cfg.multiPeakThrsScal = (float) atof (argv[3]);
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&cfg, MMWDEMO_MULTIOBJBEAMFORMING_OFFSET,
sizeof(cfg), subFrameNum);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for DC range calibration
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLICalibDcRangeSig (int32_t argc, char* argv[])
{
DPU_RangeProc_CalibDcRangeSigCfg cfg;
uint32_t log2NumAvgChirps;
int8_t subFrameNum;
if(MmwDemo_CLIGetSubframe(argc, argv, 6, &subFrameNum) < 0)
{
return -1;
}
/* Initialize configuration for DC range signature calibration */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.enabled = (uint16_t) atoi (argv[2]);
cfg.negativeBinIdx = (int16_t) atoi (argv[3]);
cfg.positiveBinIdx = (int16_t) atoi (argv[4]);
cfg.numAvgChirps = (uint16_t) atoi (argv[5]);
if (cfg.negativeBinIdx > 0)
{
CLI_write ("Error: Invalid negative bin index\n");
return -1;
}
if ((cfg.positiveBinIdx - cfg.negativeBinIdx + 1) > DPU_RANGEPROC_SIGNATURE_COMP_MAX_BIN_SIZE)
{
CLI_write ("Error: Number of bins exceeds the limit\n");
return -1;
}
log2NumAvgChirps = (uint32_t) mathUtils_ceilLog2(cfg.numAvgChirps);
if (cfg.numAvgChirps != (1U << log2NumAvgChirps))
{
CLI_write ("Error: Number of averaged chirps is not power of two\n");
return -1;
}
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&cfg, MMWDEMO_CALIBDCRANGESIG_OFFSET,
sizeof(cfg), subFrameNum);
return 0;
}
/**
* @b Description
* @n
* Clutter removal Configuration
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIClutterRemoval (int32_t argc, char* argv[])
{
DPC_ObjectDetection_StaticClutterRemovalCfg_Base cfg;
int8_t subFrameNum;
if(MmwDemo_CLIGetSubframe(argc, argv, 3, &subFrameNum) < 0)
{
return -1;
}
/* Initialize configuration for clutter removal */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.enabled = (uint16_t) atoi (argv[2]);
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&cfg, MMWDEMO_STATICCLUTTERREMOFVAL_OFFSET,
sizeof(cfg), subFrameNum);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for data logger set command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIADCBufCfg (int32_t argc, char* argv[])
{
MmwDemo_ADCBufCfg adcBufCfg;
int8_t subFrameNum;
if (gMmwMssMCB.sensorState == MmwDemo_SensorState_STARTED)
{
CLI_write ("Ignored: This command is not allowed after sensor has started\n");
return 0;
}
if(MmwDemo_CLIGetSubframe(argc, argv, 6, &subFrameNum) < 0)
{
return -1;
}
/* Initialize the ADC Output configuration: */
memset ((void *)&adcBufCfg, 0, sizeof(adcBufCfg));
/* Populate configuration: */
adcBufCfg.adcFmt = (uint8_t) atoi (argv[2]);
adcBufCfg.iqSwapSel = (uint8_t) atoi (argv[3]);
adcBufCfg.chInterleave = (uint8_t) atoi (argv[4]);
adcBufCfg.chirpThreshold = (uint8_t) atoi (argv[5]);
/* This demo is using HWA for 1D processing which does not allow multi-chirp
* processing */
if (adcBufCfg.chirpThreshold != 1)
{
CLI_write("Error: chirpThreshold must be 1, multi-chirp is not allowed\n");
return -1;
}
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&adcBufCfg,
MMWDEMO_ADCBUFCFG_OFFSET,
sizeof(MmwDemo_ADCBufCfg), subFrameNum);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for compensation of range bias and channel phase offsets
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLICompRangeBiasAndRxChanPhaseCfg (int32_t argc, char* argv[])
{
DPU_AoAProc_compRxChannelBiasCfg cfg;
int32_t Re, Im;
int32_t argInd;
int32_t i;
/* Sanity Check: Minimum argument check */
if (argc != (1+1+SYS_COMMON_NUM_TX_ANTENNAS*SYS_COMMON_NUM_RX_CHANNEL*2))
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Initialize configuration: */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.rangeBias = (float) atof (argv[1]);
argInd = 2;
for (i=0; i < SYS_COMMON_NUM_TX_ANTENNAS*SYS_COMMON_NUM_RX_CHANNEL; i++)
{
Re = (int32_t) (atof (argv[argInd++]) * 32768.);
MATHUTILS_SATURATE16(Re);
cfg.rxChPhaseComp[i].real = (int16_t) Re;
Im = (int32_t) (atof (argv[argInd++]) * 32768.);
MATHUTILS_SATURATE16(Im);
cfg.rxChPhaseComp[i].imag = (int16_t) Im;
}
/* Save Configuration to use later */
memcpy((void *) &gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.compRxChanCfg,
&cfg, sizeof(cfg));
gMmwMssMCB.objDetCommonCfg.isCompRxChannelBiasCfgPending = 1;
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for measurement configuration of range bias
* and channel phase offsets
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIMeasureRangeBiasAndRxChanPhaseCfg (int32_t argc, char* argv[])
{
DPC_ObjectDetection_MeasureRxChannelBiasCfg cfg;
/* Sanity Check: Minimum argument check */
if (argc != 4)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Initialize configuration: */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.enabled = (uint8_t) atoi (argv[1]);
cfg.targetDistance = (float) atof (argv[2]);
cfg.searchWinSize = (float) atof (argv[3]);
/* Save Configuration to use later */
memcpy((void *) &gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.measureRxChannelBiasCfg,
&cfg, sizeof(cfg));
gMmwMssMCB.objDetCommonCfg.isMeasureRxChannelBiasCfgPending = 1;
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for configuring CQ RX Saturation monitor
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIChirpQualityRxSatMonCfg (int32_t argc, char* argv[])
{
rlRxSatMonConf_t cqSatMonCfg;
if (gMmwMssMCB.sensorState == MmwDemo_SensorState_STARTED)
{
CLI_write ("Ignored: This command is not allowed after sensor has started\n");
return 0;
}
/* Sanity Check: Minimum argument check */
if (argc != 6)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Initialize configuration: */
memset ((void *)&cqSatMonCfg, 0, sizeof(rlRxSatMonConf_t));
/* Populate configuration: */
cqSatMonCfg.profileIndx = (uint8_t) atoi (argv[1]);
if(cqSatMonCfg.profileIndx < RL_MAX_PROFILES_CNT)
{
cqSatMonCfg.satMonSel = (uint8_t) atoi (argv[2]);
cqSatMonCfg.primarySliceDuration = (uint16_t) atoi (argv[3]);
cqSatMonCfg.numSlices = (uint16_t) atoi (argv[4]);
cqSatMonCfg.rxChannelMask = (uint8_t) atoi (argv[5]);
/* Save Configuration to use later */
gMmwMssMCB.cqSatMonCfg[cqSatMonCfg.profileIndx] = cqSatMonCfg;
return 0;
}
else
{
return -1;
}
}
/**
* @b Description
* @n
* This is the CLI Handler for configuring CQ Signal & Image band monitor
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIChirpQualitySigImgMonCfg (int32_t argc, char* argv[])
{
rlSigImgMonConf_t cqSigImgMonCfg;
if (gMmwMssMCB.sensorState == MmwDemo_SensorState_STARTED)
{
CLI_write ("Ignored: This command is not allowed after sensor has started\n");
return 0;
}
/* Sanity Check: Minimum argument check */
if (argc != 4)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Initialize configuration: */
memset ((void *)&cqSigImgMonCfg, 0, sizeof(rlSigImgMonConf_t));
/* Populate configuration: */
cqSigImgMonCfg.profileIndx = (uint8_t) atoi (argv[1]);
if(cqSigImgMonCfg.profileIndx < RL_MAX_PROFILES_CNT)
{
cqSigImgMonCfg.numSlices = (uint8_t) atoi (argv[2]);
cqSigImgMonCfg.timeSliceNumSamples = (uint16_t) atoi (argv[3]);
/* Save Configuration to use later */
gMmwMssMCB.cqSigImgMonCfg[cqSigImgMonCfg.profileIndx] = cqSigImgMonCfg;
return 0;
}
else
{
return -1;
}
}
/**
* @b Description
* @n
* This is the CLI Handler for enabling analog monitors
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIAnalogMonitorCfg (int32_t argc, char* argv[])
{
if (gMmwMssMCB.sensorState == MmwDemo_SensorState_STARTED)
{
CLI_write ("Ignored: This command is not allowed after sensor has started\n");
return 0;
}
/* Sanity Check: Minimum argument check */
if (argc != 3)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Save Configuration to use later */
gMmwMssMCB.anaMonCfg.rxSatMonEn = atoi (argv[1]);
gMmwMssMCB.anaMonCfg.sigImgMonEn = atoi (argv[2]);
gMmwMssMCB.isAnaMonCfgPending = 1;
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the High Speed Interface
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLILvdsStreamCfg (int32_t argc, char* argv[])
{
MmwDemo_LvdsStreamCfg cfg;
int8_t subFrameNum;
if (gMmwMssMCB.sensorState == MmwDemo_SensorState_STARTED)
{
CLI_write ("Ignored: This command is not allowed after sensor has started\n");
return 0;
}
if(MmwDemo_CLIGetSubframe(argc, argv, 5, &subFrameNum) < 0)
{
return -1;
}
/* Initialize configuration for DC range signature calibration */
memset ((void *)&cfg, 0, sizeof(MmwDemo_LvdsStreamCfg));
/* Populate configuration: */
cfg.isHeaderEnabled = (bool) atoi(argv[2]);
cfg.dataFmt = (uint8_t) atoi(argv[3]);
cfg.isSwEnabled = (bool) atoi(argv[4]);
/* If both h/w and s/w are enabled, HSI header must be enabled, because
* we don't allow mixed h/w session without HSI header
* simultaneously with s/w session with HSI header (s/w session always
* streams HSI header) */
if ((cfg.isSwEnabled == true) && (cfg.dataFmt != MMW_DEMO_LVDS_STREAM_CFG_DATAFMT_DISABLED))
{
if (cfg.isHeaderEnabled == false)
{
CLI_write("Error: header must be enabled when both h/w and s/w streaming are enabled\n");
return -1;
}
}
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&cfg,
MMWDEMO_LVDSSTREAMCFG_OFFSET,
sizeof(MmwDemo_LvdsStreamCfg), subFrameNum);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for configuring the data port
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIConfigDataPort (int32_t argc, char* argv[])
{
uint32_t baudrate;
bool ackPing;
UART_Params uartParams;
uint8_t ackData[16];
if (gMmwMssMCB.sensorState == MmwDemo_SensorState_STARTED)
{
CLI_write ("Ignored: This command is not allowed after sensor has started\n");
return 0;
}
/* Populate configuration: */
baudrate = (uint32_t) atoi(argv[1]);
ackPing = (bool) atoi(argv[2]);
/* check if requested value is less than max supported value */
if (baudrate > MMWDEMO_DATAUART_MAX_BAUDRATE_SUPPORTED)
{
CLI_write ("Ignored: Invalid baud rate (%d) specified\n",baudrate);
return 0;
}
/* re-open UART port if requested baud rate is different than current */
if (gMmwMssMCB.cfg.platformCfg.loggingBaudRate != baudrate)
{
/* close previous opened handle */
/* since the sensor is not running at this time, it is safe to close
the existing port */
if (gMmwMssMCB.loggingUartHandle != NULL)
{
UART_close(gMmwMssMCB.loggingUartHandle);
gMmwMssMCB.loggingUartHandle = NULL;
}
/* Setup the default UART Parameters */
UART_Params_init(&uartParams);
uartParams.writeDataMode = UART_DATA_BINARY;
uartParams.readDataMode = UART_DATA_BINARY;
uartParams.clockFrequency = gMmwMssMCB.cfg.platformCfg.sysClockFrequency;
uartParams.baudRate = baudrate;
uartParams.isPinMuxDone = 1U;
/* Open the Logging UART Instance: */
gMmwMssMCB.loggingUartHandle = UART_open(1, &uartParams);
if (gMmwMssMCB.loggingUartHandle == NULL)
{
CLI_write ("Error: Unable to open the Logging UART Instance\n");
return -1;
}
gMmwMssMCB.cfg.platformCfg.loggingBaudRate = baudrate;
CLI_write ("Data port baud rate changed to %d\n",baudrate);
}
/* regardless of baud rate update, ack back to the host over this UART
port if handle is valid and user has requested the ack back */
if ((gMmwMssMCB.loggingUartHandle != NULL) && (ackPing == true))
{
memset(ackData,0xFF,sizeof(ackData));
UART_writePolling (gMmwMssMCB.loggingUartHandle,
(uint8_t*)ackData,
sizeof(ackData));
}
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for querying Demo status
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_CLIQueryDemoStatus (int32_t argc, char* argv[])
{
CLI_write ("Sensor State: %d\n",gMmwMssMCB.sensorState);
CLI_write ("Data port baud rate: %d\n",gMmwMssMCB.cfg.platformCfg.loggingBaudRate);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Execution Task
*
* @retval
* Not Applicable.
*/
void MmwDemo_CLIInit (uint8_t taskPriority)
{
CLI_Cfg cliCfg;
char demoBanner[256];
uint32_t cnt;
/* Create Demo Banner to be printed out by CLI */
sprintf(&demoBanner[0],
"******************************************\n" \
"xWR18xx MMW Demo %02d.%02d.%02d.%02d\n" \
"******************************************\n",
MMWAVE_SDK_VERSION_MAJOR,
MMWAVE_SDK_VERSION_MINOR,
MMWAVE_SDK_VERSION_BUGFIX,
MMWAVE_SDK_VERSION_BUILD
);
/* Initialize the CLI configuration: */
memset ((void *)&cliCfg, 0, sizeof(CLI_Cfg));
/* Populate the CLI configuration: */
cliCfg.cliPrompt = "mmwDemo:/>";
cliCfg.cliBanner = demoBanner;
cliCfg.cliUartHandle = gMmwMssMCB.commandUartHandle;
cliCfg.taskPriority = taskPriority;
cliCfg.socHandle = gMmwMssMCB.socHandle;
cliCfg.mmWaveHandle = gMmwMssMCB.ctrlHandle;
cliCfg.enableMMWaveExtension = 1U;
cliCfg.usePolledMode = true;
cliCfg.overridePlatform = false;
cliCfg.overridePlatformString = NULL;
cnt=0;
cliCfg.tableEntry[cnt].cmd = "sensorStart";
cliCfg.tableEntry[cnt].helpString = "[doReconfig(optional, default:enabled)]";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLISensorStart;
cnt++;
cliCfg.tableEntry[cnt].cmd = "sensorStop";
cliCfg.tableEntry[cnt].helpString = "No arguments";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLISensorStop;
cnt++;
cliCfg.tableEntry[cnt].cmd = "guiMonitor";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <detectedObjects> <logMagRange> <noiseProfile> <rangeAzimuthHeatMap> <rangeDopplerHeatMap> <statsInfo>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIGuiMonSel;
cnt++;
cliCfg.tableEntry[cnt].cmd = "cfarCfg";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <procDirection> <averageMode> <winLen> <guardLen> <noiseDiv> <cyclicMode> <thresholdScale> <peakGroupingEn>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLICfarCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "multiObjBeamForming";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <enabled> <threshold>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIMultiObjBeamForming;
cnt++;
cliCfg.tableEntry[cnt].cmd = "calibDcRangeSig";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <enabled> <negativeBinIdx> <positiveBinIdx> <numAvgFrames>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLICalibDcRangeSig;
cnt++;
cliCfg.tableEntry[cnt].cmd = "clutterRemoval";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <enabled>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIClutterRemoval;
cnt++;
cliCfg.tableEntry[cnt].cmd = "adcbufCfg";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <adcOutputFmt> <SampleSwap> <ChanInterleave> <ChirpThreshold>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIADCBufCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "compRangeBiasAndRxChanPhase";
cliCfg.tableEntry[cnt].helpString = "<rangeBias> <Re00> <Im00> <Re01> <Im01> <Re02> <Im02> <Re03> <Im03> <Re10> <Im10> <Re11> <Im11> <Re12> <Im12> <Re13> <Im13> ";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLICompRangeBiasAndRxChanPhaseCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "measureRangeBiasAndRxChanPhase";
cliCfg.tableEntry[cnt].helpString = "<enabled> <targetDistance> <searchWin>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIMeasureRangeBiasAndRxChanPhaseCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "aoaFovCfg";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <minAzimuthDeg> <maxAzimuthDeg> <minElevationDeg> <maxElevationDeg>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIAoAFovCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "cfarFovCfg";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <procDirection> <min (meters or m/s)> <max (meters or m/s)>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLICfarFovCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "extendedMaxVelocity";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <enabled>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIExtendedMaxVelocity;
cnt++;
cliCfg.tableEntry[cnt].cmd = "CQRxSatMonitor";
cliCfg.tableEntry[cnt].helpString = "<profile> <satMonSel> <priSliceDuration> <numSlices> <rxChanMask>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIChirpQualityRxSatMonCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "CQSigImgMonitor";
cliCfg.tableEntry[cnt].helpString = "<profile> <numSlices> <numSamplePerSlice>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIChirpQualitySigImgMonCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "analogMonitor";
cliCfg.tableEntry[cnt].helpString = "<rxSaturation> <sigImgBand>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIAnalogMonitorCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "lvdsStreamCfg";
cliCfg.tableEntry[cnt].helpString = "<subFrameIdx> <enableHeader> <dataFmt> <enableSW>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLILvdsStreamCfg;
cnt++;
cliCfg.tableEntry[cnt].cmd = "configDataPort";
cliCfg.tableEntry[cnt].helpString = "<baudrate> <ackPing>";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIConfigDataPort;
cnt++;
cliCfg.tableEntry[cnt].cmd = "queryDemoStatus";
cliCfg.tableEntry[cnt].helpString = "";
cliCfg.tableEntry[cnt].cmdHandlerFxn = MmwDemo_CLIQueryDemoStatus;
cnt++;
/* Open the CLI: */
if (CLI_open (&cliCfg) < 0)
{
System_printf ("Error: Unable to open the CLI\n");
return;
}
System_printf ("Debug: CLI is operational\n");
return;
}
2) Is CLI_MMWaveBPMCfgAdvanced configured in the answer to question 1? If not, how do you configure the device to this? Should we call a separate file? For instance, cli_mmwave.c file in \ti\utils\cli\src\cli_mmwave.c configures all the necessary functions, including bpmcfgadvanced, but does not configure bpmCfg (as seen in the SDK)?
/*
* @file cli_mmwave.c
*
* @brief
* CLI Extension which handles the mmWave configuration
*
* \par
* NOTE:
* (C) Copyright 2016 Texas Instruments, Inc.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the
* distribution.
*
* Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
* "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
* LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
* A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
* OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
* LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
* DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
* THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
* OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/**************************************************************************
*************************** Include Files ********************************
**************************************************************************/
/* Standard Include Files. */
#include <stdint.h>
#include <stdlib.h>
#include <stddef.h>
#include <string.h>
#include <stdio.h>
/* mmWave SDK Include Files: */
#include <ti/common/sys_common.h>
#include <ti/common/mmwave_sdk_version.h>
#include <ti/drivers/uart/UART.h>
#include <ti/control/mmwavelink/mmwavelink.h>
#include <ti/control/mmwave/mmwave.h>
#include <ti/utils/cli/cli.h>
#include <ti/utils/cli/include/cli_internal.h>
/**************************************************************************
******************* CLI mmWave Extension Local Definitions****************
**************************************************************************/
/*This is used in several formulas that translate CLI input to mmwavelink units.
It must be defined as double to achieve the correct precision
on the formulas (if defined as float there will be small precision errors
that may result in the computed value being out of mmwavelink range if the
CLI input is a borderline value).
The vaiable is initialized in @ref CLI_MMWaveExtensionInit() */
double gCLI_mmwave_freq_scale_factor;
/**************************************************************************
******************* CLI mmWave Extension Local Functions *****************
**************************************************************************/
/* CLI Command Functions */
static int32_t CLI_MMWaveVersion (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveFlushCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveDataOutputMode (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveChannelCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveADCCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveProfileCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveChirpCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveFrameCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveAdvFrameCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveSubFrameCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveLowPowerCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveContModeCfg (int32_t argc, char* argv[]);
static int32_t CLI_MMWaveBPMCfgAdvanced (int32_t argc, char* argv[]);
#undef CLI_MMWAVE_HELP_SUPPORT
/**************************************************************************
************************ CLI mmWave Extension Globals ********************
**************************************************************************/
/**
* @brief
* This is the mmWave extension table added to the CLI.
*/
CLI_CmdTableEntry gCLIMMWaveExtensionTable[] =
{
{
"version",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"No arguments",
#else
NULL,
#endif
CLI_MMWaveVersion
},
{
"flushCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"No arguments",
#else
NULL,
#endif
CLI_MMWaveFlushCfg
},
{
"dfeDataOutputMode",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<modeType> 1-Chirp and 2-Continuous",
#else
NULL,
#endif
CLI_MMWaveDataOutputMode
},
{
"channelCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<rxChannelEn> <txChannelEn> <cascading>",
#else
NULL,
#endif
CLI_MMWaveChannelCfg
},
{
"adcCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<numADCBits> <adcOutputFmt>",
#else
NULL,
#endif
CLI_MMWaveADCCfg
},
{
"profileCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<profileId> <startFreq> <idleTime> <adcStartTime> <rampEndTime> <txOutPower> <txPhaseShifter> <freqSlopeConst> <txStartTime> <numAdcSamples> <digOutSampleRate> <hpfCornerFreq1> <hpfCornerFreq2> <rxGain>",
#else
NULL,
#endif
CLI_MMWaveProfileCfg
},
{
"chirpCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<startIdx> <endIdx> <profileId> <startFreqVar> <freqSlopeVar> <idleTimeVar> <adcStartTimeVar> <txEnable>",
#else
NULL,
#endif
CLI_MMWaveChirpCfg
},
{
"frameCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<chirpStartIdx> <chirpEndIdx> <numLoops> <numFrames> <framePeriodicity> <triggerSelect> <frameTriggerDelay>",
#else
NULL,
#endif
CLI_MMWaveFrameCfg
},
{
"advFrameCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<numOfSubFrames> <forceProfile> <numFrames> <triggerSelect> <frameTrigDelay>",
#else
NULL,
#endif
CLI_MMWaveAdvFrameCfg
},
{
"subFrameCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<subFrameNum> <forceProfileIdx> <chirpStartIdx> <numOfChirps> <numLoops> <burstPeriodicity> <chirpStartIdxOffset> <numOfBurst> <numOfBurstLoops> <subFramePeriodicity>",
#else
NULL,
#endif
CLI_MMWaveSubFrameCfg
},
{
"lowPower",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<reserved> <lpAdcMode>",
#else
NULL,
#endif
CLI_MMWaveLowPowerCfg
},
{
"contModeCfg",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<startFreq> <txOutPower> <txPhaseShifter> <digOutSampleRate> <hpfCornerFreq1> <hpfCornerFreq2> <rxGain> <reserved> <numSamples>",
#else
NULL,
#endif
CLI_MMWaveContModeCfg,
},
{
"bpmCfgAdvanced",
#ifdef CLI_MMWAVE_HELP_SUPPORT
"<chirpStartIdx> <chirpEndIdx> <constBpmVal>",
#else
NULL,
#endif
CLI_MMWaveBPMCfgAdvanced
},
{
NULL,
NULL,
NULL
}
};
/**
* @brief
* Global MMWave configuration tracked by the module.
*/
MMWave_CtrlCfg gCLIMMWaveControlCfg;
/**
* @brief
* Global MMWave open configuration tracked by the module.
*/
MMWave_OpenCfg gCLIMMWaveOpenCfg;
/**
* @brief
* Global mmwave device part number and string table
*/
CLI_partInfoString partInfoStringArray[] =
{
/* Maximum part number string size is CLI_MAX_PARTNO_STRING_LEN */
#ifdef SOC_XWR14XX
{SOC_AWR14XX_nonSecure_PartNumber, "AWR14xx non-secure"},
{SOC_IWR14XX_nonSecure_PartNumber, "IWR14xx non-secure"},
#endif
#ifdef SOC_XWR16XX
{SOC_AWR16XX_nonSecure_PartNumber, "AWR16xx non-secure"},
{SOC_IWR16XX_nonSecure_PartNumber, "IWR16xx non-secure"},
{SOC_AWR16XX_Secure_PartNumber, "AWR16xx secure"},
{SOC_IWR16XX_Secure_PartNumber, "IWR16xx secure"},
#endif
#ifdef SOC_XWR18XX
{SOC_AWR18XX_nonSecure_PartNumber, "AWR18xx non-secure"},
{SOC_IWR18XX_nonSecure_PartNumber, "IWR18xx non-secure"},
{SOC_AWR18XX_Secure_PartNumber, "AWR18xx secure"},
#endif
#ifdef SOC_XWR68XX
{SOC_IWR64XX_nonSecure_PartNumber, "IWR64xx non-secure"},
{SOC_IWR68XX_nonSecure_PartNumber, "IWR68xx non-secure"},
{SOC_IWR68XX_Secure_PartNumber, "IWR68xx secure"},
{SOC_AWR64XX_nonSecure_PartNumber, "AWR64xx non-secure"},
{SOC_AWR68XX_nonSecure_PartNumber, "AWR68xx non-secure"},
{SOC_IWR68XX_AOP_nonSecure_PartNumber, "IWR68xx AOP non-secure"},
{SOC_IWR68XX_AOP_Secure_PartNumber, "IWR68xx AOP secure"},
#endif
/* last entry of the table */
{0U, "Not Supported"}
};
/**************************************************************************
********************** CLI mmWave Extension Functions ********************
**************************************************************************/
/**
* @b Description
* @n
* This is the CLI Handler for the version command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveVersion (int32_t argc, char* argv[])
{
rlVersion_t verArgs;
int32_t retVal;
uint8_t rfPatchBuildVer, rfPatchDebugVer;
rlRfDieIdCfg_t dieId = { 0 };
SOC_PartNumber devicePartNumber;
uint8_t index;
int32_t errCode;
if(gCLI.cfg.overridePlatform == false)
{
/* print the platform */
#ifdef SOC_XWR14XX
CLI_write ("Platform : xWR14xx\n");
#elif defined(SOC_XWR16XX)
CLI_write ("Platform : xWR16xx\n");
#elif defined(SOC_XWR18XX)
CLI_write ("Platform : xWR18xx\n");
#elif defined(SOC_XWR68XX)
CLI_write ("Platform : xWR68xx\n");
#else
CLI_write ("Platform : unknown\n");
#endif
}
else
{
CLI_write ("Platform : %s\n", gCLI.cfg.overridePlatformString);
}
/* Get the version string: */
retVal = SOC_getDevicePartNumber(gCLI.cfg.socHandle, &devicePartNumber, &errCode);
if (retVal < 0)
{
CLI_write ("Error: Unable to get the device version from SOC[Error %d]\n", errCode);
return -1;
}
/* Get the version string: */
retVal = rlDeviceGetVersion(RL_DEVICE_MAP_INTERNAL_BSS, &verArgs);
if (retVal < 0)
{
CLI_write ("Error: Unable to get the device version from mmWave link [Error %d]\n", retVal);
return -1;
}
/* Display the version information on the CLI Console: */
CLI_write ("mmWave SDK Version : %02d.%02d.%02d.%02d\n",
MMWAVE_SDK_VERSION_MAJOR,
MMWAVE_SDK_VERSION_MINOR,
MMWAVE_SDK_VERSION_BUGFIX,
MMWAVE_SDK_VERSION_BUILD);
index = 0;
while(partInfoStringArray[index].partNumber !=0U)
{
if(devicePartNumber == partInfoStringArray[index].partNumber)
{
/* found device in supported list */
break;
}
index++;
}
if(partInfoStringArray[index].partNumber ==0U)
{
/* Device is not found in the list: */
/* Display the device information on the CLI Console: */
CLI_write ("Device Info : Device#%x ES %02d.%02d\n",
devicePartNumber,verArgs.rf.hwMajor, verArgs.rf.hwMinor);
}
else
{
/* Display the device information on the CLI Console: */
CLI_write ("Device Info : %s ES %02d.%02d\n",
partInfoStringArray[index].partNumString,verArgs.rf.hwMajor, verArgs.rf.hwMinor);
}
CLI_write ("RF F/W Version : %02d.%02d.%02d.%02d.%02d.%02d.%02d\n",
verArgs.rf.fwMajor, verArgs.rf.fwMinor, verArgs.rf.fwBuild, verArgs.rf.fwDebug,
verArgs.rf.fwYear, verArgs.rf.fwMonth, verArgs.rf.fwDay);
rfPatchDebugVer = ((verArgs.rf.patchBuildDebug) & 0x0F);
rfPatchBuildVer = (((verArgs.rf.patchBuildDebug) & 0xF0) >> 4);
CLI_write ("RF F/W Patch : %02d.%02d.%02d.%02d.%02d.%02d.%02d\n",
verArgs.rf.patchMajor, verArgs.rf.patchMinor, rfPatchBuildVer, rfPatchDebugVer,
verArgs.rf.patchYear, verArgs.rf.patchMonth, verArgs.rf.patchDay);
CLI_write ("mmWaveLink Version : %02d.%02d.%02d.%02d\n",
verArgs.mmWaveLink.major, verArgs.mmWaveLink.minor,
verArgs.mmWaveLink.build, verArgs.mmWaveLink.debug);
/* Get the die ID: */
retVal = rlGetRfDieId(RL_DEVICE_MAP_INTERNAL_BSS, &dieId);
if (retVal < 0)
{
CLI_write ("Error: Unable to get the device die ID from mmWave link [Error %d]\n", retVal);
return 0;
}
CLI_write ("Lot number : %d\n", dieId.lotNo);
CLI_write ("Wafer number : %d\n", dieId.waferNo);
CLI_write ("Die coordinates in wafer: X = %d, Y = %d\n",
dieId.devX, dieId.devY);
/* Version string has been formatted successfully. */
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the flush configuration command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveFlushCfg (int32_t argc, char* argv[])
{
int32_t errCode;
/* Flush the configuration in the MMWave */
if (MMWave_flushCfg (gCLI.cfg.mmWaveHandle, &errCode) < 0)
{
/* Error: Flushing the configuration failed. Return the error code back to the callee */
return errCode;
}
/* Reset the global configuration: */
memset ((void*)&gCLIMMWaveControlCfg, 0, sizeof(MMWave_CtrlCfg));
/* Reset the open configuration: */
memset ((void*)&gCLIMMWaveOpenCfg, 0, sizeof(MMWave_OpenCfg));
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the DFE Data Output mode.
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveDataOutputMode (int32_t argc, char* argv[])
{
uint32_t cfgMode;
/* Sanity Check: Minimum argument check */
if (argc != 2)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Get the configuration mode: */
cfgMode = atoi (argv[1]);
switch (cfgMode)
{
case 1U:
{
gCLIMMWaveControlCfg.dfeDataOutputMode = MMWave_DFEDataOutputMode_FRAME;
break;
}
case 2U:
{
gCLIMMWaveControlCfg.dfeDataOutputMode = MMWave_DFEDataOutputMode_CONTINUOUS;
break;
}
case 3U:
{
gCLIMMWaveControlCfg.dfeDataOutputMode = MMWave_DFEDataOutputMode_ADVANCED_FRAME;
break;
}
default:
{
/* Error: Invalid argument. */
CLI_write ("Error: Invalid mode.\n");
return -1;
}
}
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the channel configuration command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveChannelCfg (int32_t argc, char* argv[])
{
rlChanCfg_t chCfg;
/* Sanity Check: Minimum argument check */
if (argc != 4)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Initialize the channel configuration: */
memset ((void *)&chCfg, 0, sizeof(rlChanCfg_t));
/* Populate the channel configuration: */
chCfg.rxChannelEn = atoi (argv[1]);
chCfg.txChannelEn = atoi (argv[2]);
chCfg.cascading = atoi (argv[3]);
/* Save Configuration to use later */
memcpy((void *)&gCLIMMWaveOpenCfg.chCfg, (void *)&chCfg, sizeof(rlChanCfg_t));
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the ADC configuration command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveADCCfg (int32_t argc, char* argv[])
{
rlAdcOutCfg_t adcOutCfg;
int32_t retVal = 0;
/* Sanity Check: Minimum argument check */
if (argc != 3)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Initialize the ADC Output configuration: */
memset ((void *)&adcOutCfg, 0, sizeof(rlAdcOutCfg_t));
/* Populate the ADC Output configuration: */
adcOutCfg.fmt.b2AdcBits = atoi (argv[1]);
adcOutCfg.fmt.b2AdcOutFmt = atoi (argv[2]);
/* Save Configuration to use later */
memcpy((void *)&gCLIMMWaveOpenCfg.adcOutCfg, (void *)&adcOutCfg, sizeof(rlAdcOutCfg_t));
return retVal;
}
/**
* @b Description
* @n
* This is the CLI Handler for the profile configuration command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveProfileCfg (int32_t argc, char* argv[])
{
rlProfileCfg_t profileCfg;
uint8_t index;
int32_t errCode;
MMWave_ProfileHandle profileHandle;
MMWave_ProfileHandle* ptrBaseCfgProfileHandle;
/* Sanity Check: Minimum argument check */
if (argc != 15)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Sanity Check: Profile configuration is valid only for the Frame or
Advanced Frame Mode: */
if ((gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_FRAME) &&
(gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_ADVANCED_FRAME))
{
CLI_write ("Error: Configuration is valid only if the DFE Output Mode is Frame or Advanced Frame\n");
return -1;
}
if (gCLIMMWaveControlCfg.dfeDataOutputMode == MMWave_DFEDataOutputMode_FRAME)
{
ptrBaseCfgProfileHandle = &gCLIMMWaveControlCfg.u.frameCfg.profileHandle[0U];
}
else
{
ptrBaseCfgProfileHandle = &gCLIMMWaveControlCfg.u.advancedFrameCfg.profileHandle[0U];
}
/* Initialize the profile configuration: */
memset ((void *)&profileCfg, 0, sizeof(rlProfileCfg_t));
/* Populate the profile configuration: */
profileCfg.profileId = atoi (argv[1]);
/* Translate from GHz to [1 LSB = gCLI_mmwave_freq_scale_factor * 1e9 / 2^26 Hz] units
* of mmwavelink format */
profileCfg.startFreqConst = (uint32_t) (atof(argv[2]) * (1U << 26) /
gCLI_mmwave_freq_scale_factor);
/* Translate below times from us to [1 LSB = 10 ns] units of mmwavelink format */
profileCfg.idleTimeConst = (uint32_t)((float)atof(argv[3]) * 1000 / 10);
profileCfg.adcStartTimeConst = (uint32_t)((float)atof(argv[4]) * 1000 / 10);
profileCfg.rampEndTime = (uint32_t)((float)atof(argv[5]) * 1000 / 10);
profileCfg.txOutPowerBackoffCode = atoi (argv[6]);
profileCfg.txPhaseShifter = atoi (argv[7]);
/* Translate from MHz/us to [1 LSB = (gCLI_mmwave_freq_scale_factor * 1e6 * 900) / 2^26 kHz/uS]
* units of mmwavelink format */
profileCfg.freqSlopeConst = (int16_t)(atof(argv[8]) * (1U << 26) /
((gCLI_mmwave_freq_scale_factor * 1e3) * 900.0));
/* Translate from us to [1 LSB = 10 ns] units of mmwavelink format */
profileCfg.txStartTime = (int32_t)((float)atof(argv[9]) * 1000 / 10);
profileCfg.numAdcSamples = atoi (argv[10]);
profileCfg.digOutSampleRate = atoi (argv[11]);
profileCfg.hpfCornerFreq1 = atoi (argv[12]);
profileCfg.hpfCornerFreq2 = atoi (argv[13]);
profileCfg.rxGain = atoi (argv[14]);
/* Search for a free space in the mmWave configuration block: */
for (index = 0U; index < MMWAVE_MAX_PROFILE; index++)
{
/* Did we get a free entry? */
if (ptrBaseCfgProfileHandle[index] == NULL)
{
/* YES: We can add the profile. */
break;
}
}
if (index == MMWAVE_MAX_PROFILE)
{
/* Error: All the profiles have been exhausted */
return -1;
}
/* Add the profile to the mmWave module: */
profileHandle = MMWave_addProfile (gCLI.cfg.mmWaveHandle, &profileCfg, &errCode);
if (profileHandle == NULL)
{
/* Error: Unable to add the profile. Return the error code back */
return errCode;
}
/* Record the profile: */
ptrBaseCfgProfileHandle[index] = profileHandle;
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the chirp configuration command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveChirpCfg (int32_t argc, char* argv[])
{
rlChirpCfg_t chirpCfg;
MMWave_ProfileHandle profileHandle;
int32_t errCode;
/* Sanity Check: Minimum argument check */
if (argc != 9)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Sanity Check: Chirp configuration is valid only for the Frame or
Advanced Frame Mode: */
if ((gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_FRAME) &&
(gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_ADVANCED_FRAME))
{
CLI_write ("Error: Configuration is valid only if the DFE Output Mode is Chirp\n");
return -1;
}
/* Initialize the chirp configuration: */
memset ((void *)&chirpCfg, 0, sizeof(rlChirpCfg_t));
/* Populate the chirp configuration: */
chirpCfg.chirpStartIdx = atoi (argv[1]);
chirpCfg.chirpEndIdx = atoi (argv[2]);
chirpCfg.profileId = atoi (argv[3]);
/* Translate from Hz to number of [1 LSB = (gCLI_mmwave_freq_scale_factor * 1e9) / 2^26 Hz]
* units of mmwavelink format */
chirpCfg.startFreqVar = (uint32_t) ((float)atof(argv[4]) * (1U << 26) /
(gCLI_mmwave_freq_scale_factor * 1e9));
/* Translate from KHz/us to number of [1 LSB = (gCLI_mmwave_freq_scale_factor * 1e6) * 900 /2^26 KHz/us]
* units of mmwavelink format */
chirpCfg.freqSlopeVar = (uint16_t) ((float)atof(argv[5]) * (1U << 26) /
((gCLI_mmwave_freq_scale_factor * 1e6) * 900.0));
/* Translate from us to [1 LSB = 10ns] units of mmwavelink format */
chirpCfg.idleTimeVar = (uint32_t)((float)atof (argv[6]) * 1000.0 / 10.0);
/* Translate from us to [1 LSB = 10ns] units of mmwavelink format */
chirpCfg.adcStartTimeVar = (uint32_t)((float)atof (argv[7]) * 1000.0 / 10.0);
chirpCfg.txEnable = atoi (argv[8]);
/* Get the profile handle to which the chirp is to be added: */
if (MMWave_getProfileHandle (gCLI.cfg.mmWaveHandle, chirpCfg.profileId,
&profileHandle, &errCode) < 0)
{
/* Error: Unable to get the profile handle. Return the error code */
return errCode;
}
/* Add the chirp to the profile */
if (MMWave_addChirp (profileHandle, &chirpCfg, &errCode) == NULL)
{
/* Error: Unable to add the chirp. Return the error code. */
return errCode;
}
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the frame configuration command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveFrameCfg (int32_t argc, char* argv[])
{
rlFrameCfg_t frameCfg;
/* Sanity Check: Minimum argument check */
if (argc != 8)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Sanity Check: Frame configuration is valid only for the Frame or
Advanced Frame Mode: */
if (gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_FRAME)
{
CLI_write ("Error: Configuration is valid only if the DFE Output Mode is Chirp\n");
return -1;
}
/* Initialize the frame configuration: */
memset ((void *)&frameCfg, 0, sizeof(rlFrameCfg_t));
/* Populate the frame configuration: */
frameCfg.chirpStartIdx = atoi (argv[1]);
frameCfg.chirpEndIdx = atoi (argv[2]);
frameCfg.numLoops = atoi (argv[3]);
frameCfg.numFrames = atoi (argv[4]);
frameCfg.framePeriodicity = (uint32_t)((float)atof(argv[5]) * 1000000 / 5);
frameCfg.triggerSelect = atoi (argv[6]);
frameCfg.frameTriggerDelay = (uint32_t)((float)atof(argv[7]) * 1000000 / 5);
/* Save Configuration to use later */
memcpy((void *)&gCLIMMWaveControlCfg.u.frameCfg.frameCfg, (void *)&frameCfg, sizeof(rlFrameCfg_t));
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the advanced frame configuration command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveAdvFrameCfg (int32_t argc, char* argv[])
{
rlAdvFrameCfg_t advFrameCfg;
/* Sanity Check: Minimum argument check */
if (argc != 6)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Sanity Check: Frame configuration is valid only for the Frame or
Advanced Frame Mode: */
if (gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_ADVANCED_FRAME)
{
CLI_write ("Error: Configuration is valid only if the DFE Output Mode is Advanced Frame\n");
return -1;
}
/* Initialize the frame configuration: */
memset ((void *)&advFrameCfg, 0, sizeof(rlAdvFrameCfg_t));
/* Populate the frame configuration: */
advFrameCfg.frameSeq.numOfSubFrames = atoi (argv[1]);
advFrameCfg.frameSeq.forceProfile = atoi (argv[2]);
advFrameCfg.frameSeq.numFrames = atoi (argv[3]);
advFrameCfg.frameSeq.triggerSelect = atoi (argv[4]);
advFrameCfg.frameSeq.frameTrigDelay = (uint32_t)((float)atof(argv[5]) * 1000000 / 5);
/* Save Configuration to use later */
memcpy ((void *)&gCLIMMWaveControlCfg.u.advancedFrameCfg.frameCfg,
(void *)&advFrameCfg, sizeof(rlAdvFrameCfg_t));
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the subframe configuration command.
* Only valid when used in conjunction with the advanced frame configuration.
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveSubFrameCfg (int32_t argc, char* argv[])
{
rlSubFrameCfg_t subFrameCfg;
uint8_t subFrameNum;
/* Sanity Check: Minimum argument check */
if (argc != 11)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Sanity Check: Sub Frame configuration is valid only for the Advanced Frame Mode: */
if (gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_ADVANCED_FRAME)
{
CLI_write ("Error: Configuration is valid only if the DFE Output Mode is Advanced Frame\n");
return -1;
}
/* Initialize the frame configuration: */
memset ((void *)&subFrameCfg, 0, sizeof(rlSubFrameCfg_t));
/* Populate the frame configuration: */
subFrameNum = (uint8_t)atoi (argv[1]);
if (subFrameNum > gCLIMMWaveControlCfg.u.advancedFrameCfg.frameCfg.frameSeq.numOfSubFrames)
{
CLI_write ("Error: Invalid subframe number.\n");
return -1;
}
subFrameCfg.forceProfileIdx = atoi (argv[2]);
subFrameCfg.chirpStartIdx = atoi (argv[3]);
subFrameCfg.numOfChirps = atoi (argv[4]);
subFrameCfg.numLoops = atoi (argv[5]);
subFrameCfg.burstPeriodicity = (uint32_t)((float)atof(argv[6]) * 1000000 / 5);
subFrameCfg.chirpStartIdxOffset = atoi (argv[7]);
subFrameCfg.numOfBurst = atoi (argv[8]);
subFrameCfg.numOfBurstLoops = atoi (argv[9]);
subFrameCfg.subFramePeriodicity = (uint32_t)((float)atof(argv[10]) * 1000000 / 5);
/* Save Configuration to use later */
memcpy((void *)&gCLIMMWaveControlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[subFrameNum],
(void *)&subFrameCfg, sizeof(rlSubFrameCfg_t));
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the low power command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveLowPowerCfg (int32_t argc, char* argv[])
{
rlLowPowerModeCfg_t lowPowerCfg;
/* Sanity Check: Minimum argument check */
if (argc != 3)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Initialize the channel configuration: */
memset ((void *)&lowPowerCfg, 0, sizeof(rlLowPowerModeCfg_t));
/* Populate the channel configuration: */
lowPowerCfg.lpAdcMode = atoi (argv[2]);
/* Save Configuration to use later */
memcpy((void *)&gCLIMMWaveOpenCfg.lowPowerMode, (void *)&lowPowerCfg, sizeof(rlLowPowerModeCfg_t));
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the continuous mode
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveContModeCfg (int32_t argc, char* argv[])
{
MMWave_ContModeCfg *contCfg = &gCLIMMWaveControlCfg.u.continuousModeCfg;
/* Sanity Check: Minimum argument check */
if (argc != 10)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Sanity Check: Continuous configuration is valid only for the Continuous Mode: */
if (gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_CONTINUOUS)
{
CLI_write ("Error: Configuration is valid only if the DFE Output Mode is Continuous\n");
return -1;
}
/* Populate the configuration: */
contCfg->cfg.startFreqConst = (uint32_t) (atof(argv[1]) * (1U << 26) /
gCLI_mmwave_freq_scale_factor);
contCfg->cfg.txOutPowerBackoffCode = (uint32_t) atoi (argv[2]);
contCfg->cfg.txPhaseShifter = (uint32_t) atoi (argv[3]);
contCfg->cfg.digOutSampleRate = (uint16_t) atoi (argv[4]);
contCfg->cfg.hpfCornerFreq1 = (uint8_t) atoi (argv[5]);
contCfg->cfg.hpfCornerFreq2 = (uint8_t) atoi (argv[6]);
contCfg->cfg.rxGain = (uint16_t) atoi (argv[7]);
/*argv[8] is reserved*/
contCfg->dataTransSize = (uint16_t) atoi (argv[9]);
return 0;
}
/**
* @b Description
* @n
* This is the CLI Handler for the BPM configuration.
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t CLI_MMWaveBPMCfgAdvanced (int32_t argc, char* argv[])
{
rlBpmChirpCfg_t bpmChirpCfg;
int32_t errCode;
/* Sanity Check: Minimum argument check */
if (argc != 4)
{
CLI_write ("Error: Invalid usage of the CLI command\n");
return -1;
}
/* Sanity Check: BPM Chirp configuration is valid only for the Frame or
Advanced Frame Mode: */
if ((gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_FRAME) &&
(gCLIMMWaveControlCfg.dfeDataOutputMode != MMWave_DFEDataOutputMode_ADVANCED_FRAME))
{
CLI_write ("Error: BPM Configuration is valid only if the DFE Output Mode is frame or advanced frame\n");
return -1;
}
/* Initialize the chirp configuration: */
memset ((void *)&bpmChirpCfg, 0, sizeof(rlBpmChirpCfg_t));
/* Populate the chirp configuration: */
bpmChirpCfg.chirpStartIdx = atoi (argv[1]);
bpmChirpCfg.chirpEndIdx = atoi (argv[2]);
bpmChirpCfg.constBpmVal = atoi (argv[3]);
/* Add the BPM chirp configuration to the list */
if (MMWave_addBpmChirp (gCLI.cfg.mmWaveHandle, &bpmChirpCfg, &errCode) == NULL)
{
/* Error: Unable to add the BPM configuration. Return the error code. */
return errCode;
}
return 0;
}
/**
* @b Description
* @n
* This is the mmWave extension initialization API
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
int32_t CLI_MMWaveExtensionInit(CLI_Cfg* ptrCLICfg)
{
int32_t errCode;
/* Sanity Check: We need the mmWave handle to work. */
if (ptrCLICfg->mmWaveHandle == NULL)
{
return -1;
}
/* Initialize the mmWave control configuration: */
memset ((void *)&gCLIMMWaveControlCfg, 0, sizeof(MMWave_CtrlCfg));
gCLI_mmwave_freq_scale_factor = SOC_getDeviceRFFreqScaleFactor(ptrCLICfg->socHandle, &errCode);
if(errCode < 0)
{
return -1;
}
return 0;
}
/**
* @b Description
* @n
* This is the mmWave extension handler which executes mmWave extension
* commands. This is invoked by the main CLI wrapper only if the extension
* was enabled.
*
* @param[in] argc
* Number of detected arguments
* @param[in] argv
* Detected arguments
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* 0 - Matching mmWave extension command found
* @retval
* -1 - No Matching mmWave extension command
*/
int32_t CLI_MMWaveExtensionHandler(int32_t argc, char* argv[])
{
CLI_CmdTableEntry* ptrCLICommandEntry;
int32_t cliStatus;
int32_t retVal = 0;
/* Get the pointer to the mmWave extension table */
ptrCLICommandEntry = &gCLIMMWaveExtensionTable[0];
/* Cycle through all the registered externsion CLI commands: */
while (ptrCLICommandEntry->cmdHandlerFxn != NULL)
{
/* Do we have a match? */
if (strcmp(ptrCLICommandEntry->cmd, argv[0]) == 0)
{
/* YES: Pass this to the CLI registered function */
cliStatus = ptrCLICommandEntry->cmdHandlerFxn (argc, argv);
if (cliStatus == 0)
{
/* Successfully executed the CLI command: */
CLI_write ("Done\n");
}
else
{
/* Error: The CLI command failed to execute */
CLI_write ("Error %d\n", cliStatus);
}
break;
}
/* Get the next entry: */
ptrCLICommandEntry++;
}
/* Was this a valid CLI command? */
if (ptrCLICommandEntry->cmdHandlerFxn == NULL)
{
/* NO: The command was not a valid CLI mmWave extension command. Setup
* the return value correctly. */
retVal = -1;
}
return retVal;
}
/**
* @b Description
* @n
* This is the mmWave extension handler which is invoked by the
* CLI Help command handler only if the extension was enabled.
*
* \ingroup CLI_UTIL_INTERNAL_FUNCTION
*
* @retval
* Not applicable
*/
void CLI_MMWaveExtensionHelp(void)
{
CLI_CmdTableEntry* ptrCLICommandEntry;
/* Get the pointer to the mmWave extension table */
ptrCLICommandEntry = &gCLIMMWaveExtensionTable[0];
/* Display the banner: */
CLI_write ("****************************************************\n");
CLI_write ("mmWave Extension Help\n");
CLI_write ("****************************************************\n");
/* Cycle through all the registered externsion CLI commands: */
while (ptrCLICommandEntry->cmdHandlerFxn != NULL)
{
/* Display the help string*/
CLI_write ("%s: %s\n",
ptrCLICommandEntry->cmd,
(ptrCLICommandEntry->helpString == NULL) ?
"No help available" :
ptrCLICommandEntry->helpString);
/* Get the next entry: */
ptrCLICommandEntry++;
}
return;
}
/**
* @b Description
* @n
* This is an API provided by the CLI mmWave extension handler to get
* the mmWave control configuration.
*
* @param[out] ptrCtrlCfg
* Pointer to the control configuration populated by the API
*
* \ingroup CLI_UTIL_EXTERNAL_FUNCTION
*
* @retval
* Not applicable
*/
void CLI_getMMWaveExtensionConfig(MMWave_CtrlCfg* ptrCtrlCfg)
{
memcpy ((void*)ptrCtrlCfg, (void*)&gCLIMMWaveControlCfg, sizeof(MMWave_CtrlCfg));
return;
}
/**
* @b Description
* @n
* This is an API provided by the CLI mmWave extension handler to get
* the mmWave control configuration.
*
* @param[out] ptrOpenCfg
* Pointer to the open configuration populated by the API
*
* \ingroup CLI_UTIL_EXTERNAL_FUNCTION
*
* @retval
* Not applicable
*/
void CLI_getMMWaveExtensionOpenConfig(MMWave_OpenCfg* ptrOpenCfg)
{
memcpy ((void*)ptrOpenCfg, (void*)&gCLIMMWaveOpenCfg, sizeof(MMWave_OpenCfg));
return;
}
3) Since my goal is to configure the AWR with MMWaveBPMCfgAdvanced, is the \ti\utils\cli\src\cli_mmwave.c file called by the SDK mmwave demo? If not, how?
Thank you so much!
