PGA305EVM-034: BRDG_EN

Koji Hayashi92

Mastermind 7030 points

Part Number: PGA305EVM-034

Hi TI-team

My cusomer use this IC.

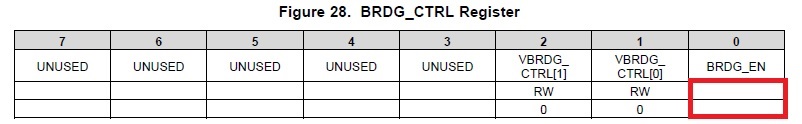

In the data sheet (p.56, Figure 28), the 0th bit (BRDG_EN) is blank.

Are you using it ?

They used the GUI to check it.

They wrote with Bridge Supply Voltage at 2.5V and read afterwards, the value remains at "0".

BRDG_EN is not enabled.

Is this correct ?

Since there is no mention of RW, I thought it was something that changes to 1 on its own, but if it's in the EN state even if it's 0, is it a misnomer in the data sheet ?

Best Regards,

Koji Hayashi

over 4 years ago

0 Scott Cummins over 4 years ago

TI__Mastermind 31655 points

Hello Hayashi-san,

The BRDG_EN bit for the EEPROM register is not used since the bridge is automatically enabled by the compensation engine immediately on powerup. Reading the control and status register (DI page 0x02 and offset 0x46) you will find that the BRDG_EN bit is actually set to 1.

Regards,

0 Koji Hayashi92 over 4 years ago in reply to Scott Cummins

Mastermind 7030 points

Hi Scott-san

Thank you for response.

If it's set to 1, then it should be set to 1 when you read it in the GUI.

But it wasn't set to 1.

What are your thoughts on this matter ?

Best Regards,

Koji Hayashi

0 Scott Cummins over 4 years ago in reply to Koji Hayashi92

TI__Mastermind 31655 points

Hello Hayashi-san,

The EEPROM register will read 0. The digital interface register (page 0x02 offset 0x46) will read 1.

Regards,

0 Koji Hayashi92 over 4 years ago in reply to Scott Cummins

Mastermind 7030 points

Hi Scott-san

Thank you for response.

>The digital interface register (page 0x02 offset 0x46) will read 1.

Does this mean we can't read one in the GUI ?

Best Regards,

Koji Hayashi

0 Koji Hayashi92 over 4 years ago in reply to Koji Hayashi92

Mastermind 7030 points

Hi Scott-san

If you can read it in the GUI, please let me know how.

The customer is not able to read it.

Best Regards,

Koji Hayashi

0 Scott Cummins over 4 years ago in reply to Koji Hayashi92

TI__Mastermind 31655 points

Hi Koji-san,

They will have to read the register in the low level configuration page. If they read the register from the EEPROM page they will only see the EEPROM register value.

Regards,

0 Koji Hayashi92 over 4 years ago in reply to Scott Cummins

Mastermind 7030 points

Hi Scott-san

Thank you for response.

I will answer my customer.

Best Regards,

Koji Hayashi
