AWR1642BOOST-ODS: no wave output from CAN interface

Shine

Part Number: AWR1642BOOST-ODS
Other Parts Discussed in Thread: AWR1642

Hello，

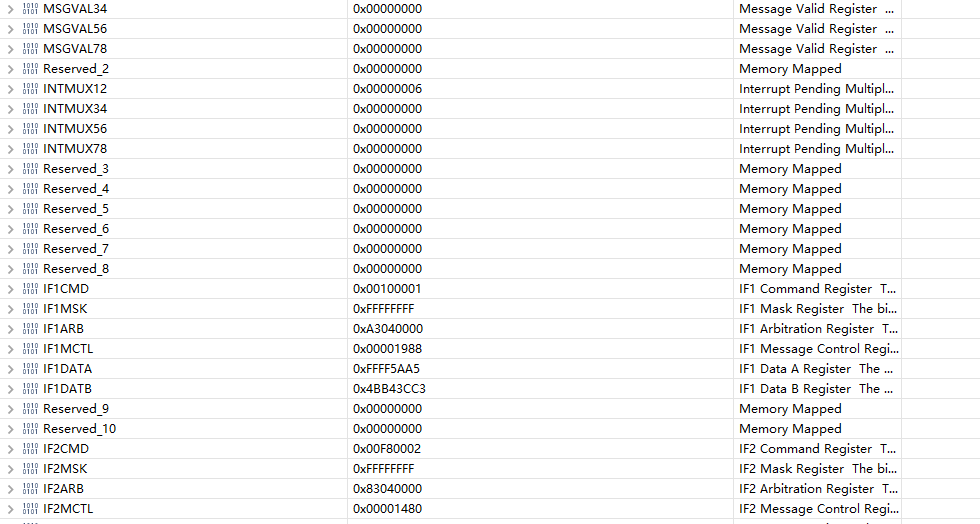

Customer connected AWR1642BOOST-ODS CAN TX and RX to TJA1050 transmitter via J5 and J6 connector. And then flash the test code in SDK CAN driver and run the code. But there is no wave from AWR1642 C13 and E13 pins while the data has been written to the CAN registers

He has changed the hardware mentioned in 2.3.3 CAN Interface Connector.
https://www.ti.com.cn/cn/lit/ug/spruik1/spruik1.pdf

Thanks.
Rgds
Shine

over 4 years ago

0 Ishita Kochar over 4 years ago

TI__Mastermind 31680 points

Hello Shine,

Our expert will review your query and get back to you by the end of this week.

Thankyou for your patience.

Regards,

Ishita

0 Jitendra Gupta over 4 years ago

TI__Guru 69960 points

Hello Shine,

SDK driver provides only CCS debug image (xwr16xx_can_mss.xer4f) not the metaimage binary, so which test code binary customer has flashed to the device.

C:\ti\mmwave_sdk_03_01_00_02\packages\ti\drivers\can\test\xwr16xx

Ask them to run the lab0005_object_data_over_can from TI-Rex on this AWR1642 ODS board

https://dev.ti.com/tirex/explore/node?node=ADWAvz1GWDvSfSVkncqhEw__AocYeEd__LATEST

And CAN interface is available on board at J3 connector.
