MMWAVE-STUDIO: what does the PostProc result: "ADC data vs doppler FFT output" means?

user5034403

Part Number: MMWAVE-STUDIO
Other Parts Discussed in Thread: IWR1642

Hi.

I have some confusion about the PostProc result of the mmWave studio (version: 02.01.01.00, Device: IWR1642). What does the result of "ADC data vs doppler FFT output" means? What is the difference between the result of "2D FFT amplitude profile" and the "ADC data vs doppler FFT output"? Because I notice that there are some differences between them but I don't know how to get the result of "ADC data vs doppler FFT output".

Thanks.

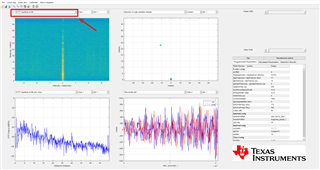

ADC data vs doppler FFT output 2D FFT profile

over 4 years ago

0 zigang Yang over 4 years ago

TI__Mastermind 39955 points

HI,

Please check the radar studio User guide located at: C:\ti\mmwave_studio_02_01_01_00\docs\mmwave_studio_user_guide.pdf. You should be able to find some information there.

Best,

Zigang

0 user5034403 over 4 years ago in reply to zigang Yang

Prodigy 175 points

I have done as suggested. But there is nothing about the "ADC data vs doppler FFT output".

0 zigang Yang over 4 years ago in reply to user5034403

TI__Mastermind 39955 points

HI,

Range-Doppler Amplitude output is the one we usually use. I have never used ADC data vs. Doppler output before. But by looking at your figure and the name, it should mean the Doppler FFT on top of ADC data, i.e., FFT cross chirp for each ADC sample. It will show a change over chirp for time domain data.

Best,

Zigang
