Original question:

MMWCAS-RF-EVM: mmWave Studio Error: "no of files captured in the directory is zero! nothing to transfer"

MMWCAS-RF-EVM: AWR 1243 Cascade Board

Vaishnavi Rao
Prodigy 20 points
Part Number: MMWCAS-RF-EVM
Other Parts Discussed in Thread: AWR1243, MMWCAS-DSP-EVM

Hi,

I'm working on AWR1243 cascade board. It is configured by mmWaveStudio(tried with version 2.1.1.0 & version 2.1.0.0) in GUI mode. In the capture section, after Triggering the frame, I'm not able to see the captured files and it is giving an error "The number of files captured in the directory is zero! Nothing to transfer! " . I have checked with the FPGA CDONE LEDs on the back of the MMWCAS-DSP-EVM PCB and it is glowing. Binary files are not generated in the SSD itself. Requesting your support for resolving this issue.

  • 0
    TI__Mastermind 31680 points

    Hello Vaishnavi,

    I understand your concern.

    Could you send us your mmWave Studio output log here? That would help us understand your sequence.

    Regards,

    Ishita

  • 0 in reply to Ishita Kochar
    Prodigy 20 points

    Hi Ishita, here is the mmwave studio output log.

    GM: Constructor
    GM: Wed Mar 31 11:32:41 2021
    RSTD.Transmit("/Settings")
    [11:32:41]
    [11:32:41] ### Running Startup script: "C:\ti\mmwave_studio_02_01_00_00\mmWaveStudio\Scripts\Startup.lua" ###
    [11:32:41] RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
    [11:32:41] RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
    [11:32:41] Scripter ignored: Attempt to UnBuild() again or before Build.
    [11:32:41] RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_02_01_00_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
    [11:32:41] RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
    [11:32:41] RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
    [11:32:41] RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
    [11:32:41] RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
    [11:32:41] RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
    [11:32:41] RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_02_01_00_00\\mmWaveStudio\\RunTime\\SAL.dll")
    [11:32:42] RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
    [11:32:42] RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
    [11:32:42] RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
    [11:32:42] RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
    [11:32:42] RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
    [11:32:42] RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
    [11:32:42] RSTD.Transmit("/")
    [11:32:42] RSTD.SaveSettings(): Settings saved to "C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\config.xml"
    [11:32:42] RSTD.Build()
    [11:32:42] RSTD.SaveSettings(): Settings saved to "C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\config.xml"
    [11:32:42] RSTD.Transmit("/")
    [11:32:42] RSTD.AL_Build()
    [11:32:42] RSTD.AL_LoadXml()
    [11:32:42] RSTD.Transmit("/")
    [11:32:42] RSTD.AL_Init()
    [11:32:42] RSTD.Clients_Build()
    [11:32:42] GM: Init
    [11:32:42] GM: Loaded 'C:\ti\mmwave_studio_02_01_00_00\mmWaveStudio\Clients\\LabClient.dll'
    [11:32:42] GM: 1 Guest (s) init
    [11:32:42] GM: 1 Module(s) init
    [11:32:42] GM: 2 Tab (s) init
    [11:32:42] RSTD.Client_LoadXml()
    [11:32:42] [RadarAPI]: ar1.selectRadarMode(0)
    [11:32:42] [RadarAPI]: Status: Passed
    [11:32:42] Matlab Runtime Engine is installed
    [11:32:42] [RadarAPI]: Starting Matlab Engine..
    [11:32:49] [RadarAPI]: Matlab Engine Started!
    [11:32:51] [RadarAPI]: ar1.selectCascadeMode(0)
    [11:32:51] [RadarAPI]: Status: Passed
    [11:32:51] [RadarAPI]: ar1.LoadSettings('C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\ar1gui.ini')
    [11:32:52] TESTING = false
    [11:32:52] RstdNet: Port 2777: Listening..
    [11:32:52]
    [11:32:52] ***Script completed successfully.***
    [11:33:04] [RadarAPI]: ar1.selectRadarMode(1)
    [11:33:04] [RadarAPI]: ar1.selectCascadeMode(1)
    [11:33:04] [RadarAPI]: Status: Passed
    [11:33:04] [RadarAPI]: Status: Passed
    [11:33:05] [RadarAPI]: ar1.SelectCaptureDevice("TDA2XX")
    [11:33:05] [RadarAPI]: Status: Passed
    [11:33:07] [RadarAPI]: TDAStatusCallback Event Registered
    [11:33:07] [RadarAPI]: registerTDAStatusCallback Status: Passed
    [11:33:07] [RadarAPI]: ar1.ConnectTDA("192.168.33.180", 5001, 15)
    [11:33:07] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:33:07] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_VERSION_INFO Async event recieved() with status 0. TDA Version : REL_VISION_SDK_03_07_01_00 Aug 5 2019 15:04:45 �
    [11:33:07] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:33:09] [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:33:09] [RadarAPI]: ConnectTDACaptureCard Status: Passed
    [11:33:09] TDA Capture Card Status : CONNECTED!
    [11:33:12] [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:33:12] [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:33:13] [RadarAPI]: ar1.FullReset(1)
    [11:33:13] [RadarAPI]: Status: Passed
    [11:33:13] [RadarAPI]: ar1.SOPControl_mult(1,4)
    [11:33:13] [RadarAPI]: Status: Passed
    [11:33:15] [RadarAPI]: ar1.PowerOn_mult(1, 0, 1000, 0,0)
    [11:33:16] [RadarAPI]: Status: Passed
    [11:33:16] [DeviceId-0] MSS power up done async event received!
    [11:33:18] [RadarAPI]: ar1.DownloadBSSFw_mult(1,"C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin")
    [11:33:18] [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(1, C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin)
    [11:33:33] [DeviceId-0] MSS Boot Error status Async event recieved(0x1672BE)
    [11:33:36] [RadarAPI]: ar1.SelectChipVersion("AR1243")
    [11:33:36] [RadarAPI]: Status: Passed
    [11:33:36] [RadarAPI]: ar1.SelectChipVersion("AR1243")
    [11:33:36] [RadarAPI]: Status: Passed
    [11:33:36] [RadarAPI]: ar1.deviceVariantSelection("XWR1243")
    [11:33:36] [RadarAPI]: Status: Passed
    [11:33:36] [RadarAPI]: ar1.frequencyBandSelection("77G")
    [11:33:36] [RadarAPI]: ar1.SelectChipVersion("XWR1243")
    [11:33:36] [RadarAPI]: Status: Passed
    [11:33:36] Device Status : XWR1243/ASIL-B/SOP:4/ES:3
    [11:33:36] [RadarAPI]: ar1.RfEnable_mult(1)
    [11:33:36] [DeviceId-0] BSS power up done async event received!
    [11:33:36] [RadarAPI]: Status: Passed
    [11:33:51] [RadarAPI]: ar1.ChanNAdcConfig_mult(1, 1, 1, 0, 1, 1, 1, 1, 2, 1, 0, 1)
    [11:33:51] [RadarAPI]: Status: Passed
    [11:33:52] [RadarAPI]: ar1.LPModConfig_mult(1, 0,0)
    [11:33:52] [RadarAPI]: Status: Passed
    [11:33:53] [RadarAPI]: ar1.RfInit_mult(1)
    [11:33:53] [DeviceId-0] RF Init async event received!
    [11:33:53] [RadarAPI]: Status: Passed
    [11:33:53] [RadarAPI]: Time stamp, Temperture: 17072,39; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
    [11:34:03] [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:34:04] [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:34:04] [RadarAPI]: ar1.FullReset(2)
    [11:34:04] [RadarAPI]: Status: Passed
    [11:34:04] [RadarAPI]: ar1.SOPControl_mult(2,4)
    [11:34:04] [RadarAPI]: Status: Passed
    [11:34:08] [DeviceId-1] MSS power up done async event received!
    [11:34:08] [RadarAPI]: ar1.AddDevice(2)
    [11:34:08] [RadarAPI]: Status: Passed
    [11:34:22] [RadarAPI]: ar1.DownloadBSSFw_mult(2,"C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin")
    [11:34:22] [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(2, C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin)
    [11:34:37] [DeviceId-1] MSS Boot Error status Async event recieved(0x1672C3)
    [11:34:40] [RadarAPI]: ar1.SelectChipVersion("AR1243")
    [11:34:40] [RadarAPI]: Status: Passed
    [11:34:40] [RadarAPI]: ar1.SelectChipVersion("XWR1243")
    [11:34:40] [RadarAPI]: Status: Passed
    [11:34:40] Slave1 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
    [11:34:41] [RadarAPI]: ar1.RfEnable_mult(2)
    [11:34:41] [DeviceId-1] BSS power up done async event received!
    [11:34:41] [RadarAPI]: Status: Passed
    [11:34:48] [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:34:49] [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:34:49] [RadarAPI]: ar1.FullReset(4)
    [11:34:49] [RadarAPI]: Status: Passed
    [11:34:49] [RadarAPI]: ar1.SOPControl_mult(4,4)
    [11:34:49] [RadarAPI]: Status: Passed
    [11:34:51] [DeviceId-2] MSS power up done async event received!
    [11:34:51] [RadarAPI]: ar1.AddDevice(4)
    [11:34:52] [RadarAPI]: Status: Passed
    [11:34:53] [RadarAPI]: ar1.DownloadBSSFw_mult(4,"C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin")
    [11:34:53] [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(4, C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin)
    [11:35:08] [DeviceId-2] MSS Boot Error status Async event recieved(0x1672AD)
    [11:35:24] [RadarAPI]: ar1.SelectChipVersion("AR1243")
    [11:35:24] [RadarAPI]: Status: Passed
    [11:35:24] [RadarAPI]: ar1.SelectChipVersion("XWR1243")
    [11:35:24] [RadarAPI]: Status: Passed
    [11:35:25] Slave2 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
    [11:35:25] [RadarAPI]: ar1.RfEnable_mult(4)
    [11:35:25] [DeviceId-2] BSS power up done async event received!
    [11:35:25] [RadarAPI]: Status: Passed
    [11:35:31] [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:35:31] [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:35:32] [RadarAPI]: ar1.FullReset(8)
    [11:35:32] [RadarAPI]: Status: Passed
    [11:35:32] [RadarAPI]: ar1.SOPControl_mult(8,4)
    [11:35:32] [RadarAPI]: Status: Passed
    [11:35:34] [DeviceId-3] MSS power up done async event received!
    [11:35:34] [RadarAPI]: ar1.AddDevice(8)
    [11:35:34] [RadarAPI]: Status: Passed
    [11:35:36] [RadarAPI]: ar1.DownloadBSSFw_mult(8,"C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin")
    [11:35:36] [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(8, C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin)
    [11:35:51] [DeviceId-3] MSS Boot Error status Async event recieved(0x166F21)
    [11:35:58] [RadarAPI]: ar1.SelectChipVersion("AR1243")
    [11:35:58] [RadarAPI]: Status: Passed
    [11:35:58] [RadarAPI]: ar1.SelectChipVersion("XWR1243")
    [11:35:58] [RadarAPI]: Status: Passed
    [11:35:58] Slave3 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
    [11:35:58] [RadarAPI]: ar1.RfEnable_mult(8)
    [11:35:58] [DeviceId-3] BSS power up done async event received!
    [11:35:58] [RadarAPI]: Status: Passed
    [11:36:12] [RadarAPI]: ar1.ChanNAdcConfig_mult(14, 1, 1, 0, 1, 1, 1, 1, 2, 1, 0, 2)
    [11:36:13] [RadarAPI]: Status: Passed
    [11:36:14] [RadarAPI]: ar1.LPModConfig_mult(14, 0,0)
    [11:36:14] [RadarAPI]: Status: Passed
    [11:36:15] [RadarAPI]: ar1.RfInit_mult(14)
    [11:36:15] [DeviceId-3] RF Init async event received!
    [11:36:15] [DeviceId-1] RF Init async event received!
    [11:36:15] [RadarAPI]: Time stamp, Temperture: 94485,47; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
    [11:36:15] [RadarAPI]: Time stamp, Temperture: 94485,47; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
    [11:36:15] [DeviceId-2] RF Init async event received!
    [11:36:15] [RadarAPI]: Status: Passed
    [11:36:15] [RadarAPI]: Time stamp, Temperture: 50326,53; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
    [11:36:33] [RadarAPI]: ar1.DataPathConfig_mult(15, 513, 1216644097,0)
    [11:36:33] [RadarAPI]: Status: Passed
    [11:36:34] [RadarAPI]: ar1.LvdsClkConfig_mult(15, 1,1)
    [11:36:34] [RadarAPI]: Status: Passed
    [11:36:37] [RadarAPI]: ar1.LVDSLaneConfig_mult(15, 0, 1, 1, 1, 1, 1, 0,0)
    [11:36:37] [RadarAPI]: Status: Passed
    [11:36:44] [RadarAPI]: ar1.ProfileConfig_mult(15, 0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
    [11:36:44] [RadarAPI]: Status: Passed
    [11:36:49] [RadarAPI]: ar1.ChirpConfig_mult(15, 0, 0, 0, 0, 0, 0, 0, 1, 0,0)
    [11:36:50] [RadarAPI]: Status: Passed
    [11:36:58] Test Source Already Disabled...!!!
    [11:36:58] [RadarAPI]: ar1.DisableTestSource_mult(2,0)
    [11:36:58] [RadarAPI]: Status: Passed
    [11:36:58] [RadarAPI]: ar1.FrameConfig_mult(2, 0, 0, 8, 128, 40, 0, 0, 2)
    [11:36:58] [RadarAPI]: Status: Passed
    [11:37:02] Test Source Already Disabled...!!!
    [11:37:02] [RadarAPI]: ar1.DisableTestSource_mult(4,0)
    [11:37:02] [RadarAPI]: Status: Passed
    [11:37:02] [RadarAPI]: ar1.FrameConfig_mult(4, 0, 0, 8, 128, 40, 0, 0, 2)
    [11:37:02] [RadarAPI]: Status: Passed
    [11:37:06] Test Source Already Disabled...!!!
    [11:37:06] [RadarAPI]: ar1.DisableTestSource_mult(8,0)
    [11:37:06] [RadarAPI]: Status: Passed
    [11:37:06] [RadarAPI]: ar1.FrameConfig_mult(8, 0, 0, 8, 128, 40, 0, 0, 2)
    [11:37:06] [RadarAPI]: Status: Passed
    [11:37:12] Test Source Already Disabled...!!!
    [11:37:12] [RadarAPI]: ar1.DisableTestSource_mult(1,0)
    [11:37:12] [RadarAPI]: Status: Passed
    [11:37:12] [RadarAPI]: ar1.FrameConfig_mult(1, 0, 0, 8, 128, 40, 0, 0, 1)
    [11:37:12] [RadarAPI]: Status: Passed
    [11:37:25] [RadarAPI]: ar1.TDACaptureCard_StartRecord_mult(1, 0, 0, adc_data2, 0)
    [11:37:25] Device 0 - Configuring TDA with Width : 2048 and Height : 128
    [11:37:25] [RadarAPI]: Device 0 - setWidthAndHeight Status: Passed
    [11:37:25] [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] Device 1 - Configuring TDA with Width : 2048 and Height : 128
    [11:37:25] [RadarAPI]: Device 1 - setWidthAndHeight Status: Passed
    [11:37:25] [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] Device 2 - Configuring TDA with Width : 2048 and Height : 128
    [11:37:25] [RadarAPI]: Device 2 - setWidthAndHeight Status: Passed
    [11:37:25] [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] Device 3 - Configuring TDA with Width : 2048 and Height : 128
    [11:37:25] [RadarAPI]: Device 3 - setWidthAndHeight Status: Passed
    [11:37:25] [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] Sending Frame Periodicity of 40 to TDA..
    [11:37:25] [RadarAPI]: Status: Passed. Frame Periodicity sent to TDA
    [11:37:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] Sending Capture Directory with name /mnt/ssd/adc_data2 to TDA..
    [11:37:25] [RadarAPI]: Status: Passed. Capture Directory sent to TDA
    [11:37:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] Sending File Allocation of 0 files to TDA..
    [11:37:25] [RadarAPI]: Status: Passed. File Allocation sent to TDA
    [11:37:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] Sending Enable Data Packaging (0 - 16-bit; 1 - 12-bit) with value of 0 to TDA..
    [11:37:25] [RadarAPI]: Status: Passed. Enable Data Packaging sent to TDA
    [11:37:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] Sending Number of frames to capture with value of 0 to TDA..
    [11:37:25] [RadarAPI]: Status: Passed. Number of frames to capture sent to TDA
    [11:37:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] [RadarAPI]: Status: Passed for notifying TDA about Creating Application
    [11:37:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:25] [RadarAPI]: Status: Passed for notifying TDA about Start Frame
    [11:37:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:37:35] [RadarAPI]: ar1.StartFrame_mult(2)
    [11:37:35] [RadarAPI]: Status: Passed
    [11:37:36] [DeviceId-1] Frame start async event received!
    [11:37:41] [RadarAPI]: ar1.StartFrame_mult(4)
    [11:37:41] [RadarAPI]: Status: Passed
    [11:37:41] [DeviceId-2] Frame start async event received!
    [11:37:45] [RadarAPI]: ar1.StartFrame_mult(8)
    [11:37:45] [RadarAPI]: Status: Passed
    [11:37:45] [DeviceId-3] Frame start async event received!
    [11:37:52] [RadarAPI]: ar1.StartFrame_mult(1)
    [11:37:53] [RadarAPI]: Status: Passed
    [11:37:53] [DeviceId-0] Frame start async event received!
    [11:37:53] [RadarAPI]: Frame Ended
    [11:37:53] [DeviceId-3] Frame End async event received!
    [11:37:53] [DeviceId-0] Frame End async event received!
    [11:37:53] [DeviceId-2] Frame End async event received!
    [11:37:53] [DeviceId-1] Frame End async event received!
    [11:37:53] Status: Passed for notifying TDA about Stop Frame
    [11:37:53] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
    [11:38:07] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_00_00\\mmWaveStudio\\PostProc\\adc_data2.bin")
    [11:38:07] [RadarAPI]: No of files Captured: 0, Total no of frames for each device : 8
    [11:38:07] Error : The number of files captured is zero!
    [11:38:54] RSTD.ShowLogFile()

  • 0 in reply to Ishita Kochar
    Prodigy 20 points

    Fullscreen Log0081_0.txt Download
    GM: Constructor
GM: Wed Mar 31 11:32:41 2021
RSTD.Transmit("/Settings")
[11:32:41]
[11:32:41]  ### Running Startup script: "C:\ti\mmwave_studio_02_01_00_00\mmWaveStudio\Scripts\Startup.lua" ###
[11:32:41]  RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[11:32:41]  RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[11:32:41]  Scripter ignored: Attempt to UnBuild() again or before Build.
[11:32:41]  RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_02_01_00_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[11:32:41]  RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[11:32:41]  RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[11:32:41]  RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[11:32:41]  RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[11:32:41]  RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[11:32:41]  RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_02_01_00_00\\mmWaveStudio\\RunTime\\SAL.dll")
[11:32:42]  RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[11:32:42]  RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[11:32:42]  RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[11:32:42]  RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[11:32:42]  RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[11:32:42]  RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[11:32:42]  RSTD.Transmit("/")
[11:32:42]  RSTD.SaveSettings(): Settings saved to "C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\config.xml"
[11:32:42]  RSTD.Build()
[11:32:42]  RSTD.SaveSettings(): Settings saved to "C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\config.xml"
[11:32:42]  RSTD.Transmit("/")
[11:32:42]  RSTD.AL_Build()
[11:32:42]  RSTD.AL_LoadXml()
[11:32:42]  RSTD.Transmit("/")
[11:32:42]  RSTD.AL_Init()
[11:32:42]  RSTD.Clients_Build()
[11:32:42]  GM: Init
[11:32:42]  GM: Loaded 'C:\ti\mmwave_studio_02_01_00_00\mmWaveStudio\Clients\\LabClient.dll'
[11:32:42]  GM: 1 Guest (s) init
[11:32:42]  GM: 1 Module(s) init
[11:32:42]  GM: 2 Tab   (s) init
[11:32:42]  RSTD.Client_LoadXml()
[11:32:42]  [RadarAPI]: ar1.selectRadarMode(0)
[11:32:42]  [RadarAPI]: Status: Passed
[11:32:42]  Matlab Runtime Engine is installed
[11:32:42]  [RadarAPI]: Starting Matlab Engine..
[11:32:49]  [RadarAPI]: Matlab Engine Started!
[11:32:51]  [RadarAPI]: ar1.selectCascadeMode(0)
[11:32:51]  [RadarAPI]: Status: Passed
[11:32:51]  [RadarAPI]: ar1.LoadSettings('C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\ar1gui.ini')
[11:32:52]  TESTING = false
[11:32:52]  RstdNet: Port 2777: Listening..
[11:32:52]
[11:32:52]  ***Script completed successfully.***
[11:33:04]  [RadarAPI]: ar1.selectRadarMode(1)
[11:33:04]  [RadarAPI]: ar1.selectCascadeMode(1)
[11:33:04]  [RadarAPI]: Status: Passed
[11:33:04]  [RadarAPI]: Status: Passed
[11:33:05]  [RadarAPI]: ar1.SelectCaptureDevice("TDA2XX")
[11:33:05]  [RadarAPI]: Status: Passed
[11:33:07]  [RadarAPI]: TDAStatusCallback Event Registered
[11:33:07]  [RadarAPI]: registerTDAStatusCallback Status: Passed
[11:33:07]  [RadarAPI]: ar1.ConnectTDA("192.168.33.180", 5001, 15)
[11:33:07]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:33:07]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_VERSION_INFO Async event recieved() with status 0. TDA Version : REL_VISION_SDK_03_07_01_00 Aug  5 2019 15:04:45 �
[11:33:07]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:33:09]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:33:09]  [RadarAPI]: ConnectTDACaptureCard Status: Passed
[11:33:09]  TDA Capture Card Status : CONNECTED!
[11:33:12]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:33:12]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:33:13]  [RadarAPI]: ar1.FullReset(1)
[11:33:13]  [RadarAPI]: Status: Passed
[11:33:13]  [RadarAPI]: ar1.SOPControl_mult(1,4)
[11:33:13]  [RadarAPI]: Status: Passed
[11:33:15]  [RadarAPI]: ar1.PowerOn_mult(1, 0, 1000, 0,0)
[11:33:16]  [RadarAPI]: Status: Passed
[11:33:16]  [DeviceId-0] MSS power up done async event received!
[11:33:18]  [RadarAPI]: ar1.DownloadBSSFw_mult(1,"C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin")
[11:33:18]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(1, C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin)
[11:33:33]  [DeviceId-0] MSS Boot Error status Async event recieved(0x1672BE)
[11:33:36]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[11:33:36]  [RadarAPI]: Status: Passed
[11:33:36]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[11:33:36]  [RadarAPI]: Status: Passed
[11:33:36]  [RadarAPI]: ar1.deviceVariantSelection("XWR1243")
[11:33:36]  [RadarAPI]: Status: Passed
[11:33:36]  [RadarAPI]: ar1.frequencyBandSelection("77G")
[11:33:36]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[11:33:36]  [RadarAPI]: Status: Passed
[11:33:36]  Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[11:33:36]  [RadarAPI]: ar1.RfEnable_mult(1)
[11:33:36]  [DeviceId-0] BSS power up done async event received!
[11:33:36]  [RadarAPI]: Status: Passed
[11:33:51]  [RadarAPI]: ar1.ChanNAdcConfig_mult(1, 1, 1, 0, 1, 1, 1, 1, 2, 1, 0, 1)
[11:33:51]  [RadarAPI]: Status: Passed
[11:33:52]  [RadarAPI]: ar1.LPModConfig_mult(1, 0,0)
[11:33:52]  [RadarAPI]: Status: Passed
[11:33:53]  [RadarAPI]: ar1.RfInit_mult(1)
[11:33:53]  [DeviceId-0] RF Init async event received!
[11:33:53]  [RadarAPI]: Status: Passed
[11:33:53]  [RadarAPI]: Time stamp, Temperture: 17072,39; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:34:03]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:34:04]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:34:04]  [RadarAPI]: ar1.FullReset(2)
[11:34:04]  [RadarAPI]: Status: Passed
[11:34:04]  [RadarAPI]: ar1.SOPControl_mult(2,4)
[11:34:04]  [RadarAPI]: Status: Passed
[11:34:08]  [DeviceId-1] MSS power up done async event received!
[11:34:08]  [RadarAPI]: ar1.AddDevice(2)
[11:34:08]  [RadarAPI]: Status: Passed
[11:34:22]  [RadarAPI]: ar1.DownloadBSSFw_mult(2,"C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin")
[11:34:22]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(2, C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin)
[11:34:37]  [DeviceId-1] MSS Boot Error status Async event recieved(0x1672C3)
[11:34:40]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[11:34:40]  [RadarAPI]: Status: Passed
[11:34:40]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[11:34:40]  [RadarAPI]: Status: Passed
[11:34:40]  Slave1 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[11:34:41]  [RadarAPI]: ar1.RfEnable_mult(2)
[11:34:41]  [DeviceId-1] BSS power up done async event received!
[11:34:41]  [RadarAPI]: Status: Passed
[11:34:48]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:34:49]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:34:49]  [RadarAPI]: ar1.FullReset(4)
[11:34:49]  [RadarAPI]: Status: Passed
[11:34:49]  [RadarAPI]: ar1.SOPControl_mult(4,4)
[11:34:49]  [RadarAPI]: Status: Passed
[11:34:51]  [DeviceId-2] MSS power up done async event received!
[11:34:51]  [RadarAPI]: ar1.AddDevice(4)
[11:34:52]  [RadarAPI]: Status: Passed
[11:34:53]  [RadarAPI]: ar1.DownloadBSSFw_mult(4,"C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin")
[11:34:53]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(4, C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin)
[11:35:08]  [DeviceId-2] MSS Boot Error status Async event recieved(0x1672AD)
[11:35:24]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[11:35:24]  [RadarAPI]: Status: Passed
[11:35:24]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[11:35:24]  [RadarAPI]: Status: Passed
[11:35:25]  Slave2 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[11:35:25]  [RadarAPI]: ar1.RfEnable_mult(4)
[11:35:25]  [DeviceId-2] BSS power up done async event received!
[11:35:25]  [RadarAPI]: Status: Passed
[11:35:31]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:35:31]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:35:32]  [RadarAPI]: ar1.FullReset(8)
[11:35:32]  [RadarAPI]: Status: Passed
[11:35:32]  [RadarAPI]: ar1.SOPControl_mult(8,4)
[11:35:32]  [RadarAPI]: Status: Passed
[11:35:34]  [DeviceId-3] MSS power up done async event received!
[11:35:34]  [RadarAPI]: ar1.AddDevice(8)
[11:35:34]  [RadarAPI]: Status: Passed
[11:35:36]  [RadarAPI]: ar1.DownloadBSSFw_mult(8,"C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin")
[11:35:36]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(8, C:\\ti\\mmwave_dfp_01_02_05_01\\firmware\\xwr12xx_metaImage.bin)
[11:35:51]  [DeviceId-3] MSS Boot Error status Async event recieved(0x166F21)
[11:35:58]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[11:35:58]  [RadarAPI]: Status: Passed
[11:35:58]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[11:35:58]  [RadarAPI]: Status: Passed
[11:35:58]  Slave3 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[11:35:58]  [RadarAPI]: ar1.RfEnable_mult(8)
[11:35:58]  [DeviceId-3] BSS power up done async event received!
[11:35:58]  [RadarAPI]: Status: Passed
[11:36:12]  [RadarAPI]: ar1.ChanNAdcConfig_mult(14, 1, 1, 0, 1, 1, 1, 1, 2, 1, 0, 2)
[11:36:13]  [RadarAPI]: Status: Passed
[11:36:14]  [RadarAPI]: ar1.LPModConfig_mult(14, 0,0)
[11:36:14]  [RadarAPI]: Status: Passed
[11:36:15]  [RadarAPI]: ar1.RfInit_mult(14)
[11:36:15]  [DeviceId-3] RF Init async event received!
[11:36:15]  [DeviceId-1] RF Init async event received!
[11:36:15]  [RadarAPI]: Time stamp, Temperture: 94485,47; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:36:15]  [RadarAPI]: Time stamp, Temperture: 94485,47; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:36:15]  [DeviceId-2] RF Init async event received!
[11:36:15]  [RadarAPI]: Status: Passed
[11:36:15]  [RadarAPI]: Time stamp, Temperture: 50326,53; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[11:36:33]  [RadarAPI]: ar1.DataPathConfig_mult(15, 513, 1216644097,0)
[11:36:33]  [RadarAPI]: Status: Passed
[11:36:34]  [RadarAPI]: ar1.LvdsClkConfig_mult(15, 1,1)
[11:36:34]  [RadarAPI]: Status: Passed
[11:36:37]  [RadarAPI]: ar1.LVDSLaneConfig_mult(15, 0, 1, 1, 1, 1, 1, 0,0)
[11:36:37]  [RadarAPI]: Status: Passed
[11:36:44]  [RadarAPI]: ar1.ProfileConfig_mult(15, 0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
[11:36:44]  [RadarAPI]: Status: Passed
[11:36:49]  [RadarAPI]: ar1.ChirpConfig_mult(15, 0, 0, 0, 0, 0, 0, 0, 1, 0,0)
[11:36:50]  [RadarAPI]: Status: Passed
[11:36:58]  Test Source Already Disabled...!!!
[11:36:58]  [RadarAPI]: ar1.DisableTestSource_mult(2,0)
[11:36:58]  [RadarAPI]: Status: Passed
[11:36:58]  [RadarAPI]: ar1.FrameConfig_mult(2, 0, 0, 8, 128, 40, 0, 0, 2)
[11:36:58]  [RadarAPI]: Status: Passed
[11:37:02]  Test Source Already Disabled...!!!
[11:37:02]  [RadarAPI]: ar1.DisableTestSource_mult(4,0)
[11:37:02]  [RadarAPI]: Status: Passed
[11:37:02]  [RadarAPI]: ar1.FrameConfig_mult(4, 0, 0, 8, 128, 40, 0, 0, 2)
[11:37:02]  [RadarAPI]: Status: Passed
[11:37:06]  Test Source Already Disabled...!!!
[11:37:06]  [RadarAPI]: ar1.DisableTestSource_mult(8,0)
[11:37:06]  [RadarAPI]: Status: Passed
[11:37:06]  [RadarAPI]: ar1.FrameConfig_mult(8, 0, 0, 8, 128, 40, 0, 0, 2)
[11:37:06]  [RadarAPI]: Status: Passed
[11:37:12]  Test Source Already Disabled...!!!
[11:37:12]  [RadarAPI]: ar1.DisableTestSource_mult(1,0)
[11:37:12]  [RadarAPI]: Status: Passed
[11:37:12]  [RadarAPI]: ar1.FrameConfig_mult(1, 0, 0, 8, 128, 40, 0, 0, 1)
[11:37:12]  [RadarAPI]: Status: Passed
[11:37:25]  [RadarAPI]: ar1.TDACaptureCard_StartRecord_mult(1, 0, 0, adc_data2, 0)
[11:37:25]  Device 0 - Configuring TDA with Width : 2048 and Height : 128
[11:37:25]  [RadarAPI]: Device 0 - setWidthAndHeight Status: Passed
[11:37:25]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  Device 1 - Configuring TDA with Width : 2048 and Height : 128
[11:37:25]  [RadarAPI]: Device 1 - setWidthAndHeight Status: Passed
[11:37:25]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  Device 2 - Configuring TDA with Width : 2048 and Height : 128
[11:37:25]  [RadarAPI]: Device 2 - setWidthAndHeight Status: Passed
[11:37:25]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  Device 3 - Configuring TDA with Width : 2048 and Height : 128
[11:37:25]  [RadarAPI]: Device 3 - setWidthAndHeight Status: Passed
[11:37:25]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  Sending Frame Periodicity of 40 to TDA..
[11:37:25]  [RadarAPI]: Status: Passed. Frame Periodicity sent to TDA
[11:37:25]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  Sending Capture Directory with name /mnt/ssd/adc_data2 to TDA..
[11:37:25]  [RadarAPI]: Status: Passed. Capture Directory sent to TDA
[11:37:25]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  Sending File Allocation of 0 files to TDA..
[11:37:25]  [RadarAPI]: Status: Passed. File Allocation sent to TDA
[11:37:25]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  Sending Enable Data Packaging (0 - 16-bit; 1 - 12-bit) with value of 0 to TDA..
[11:37:25]  [RadarAPI]: Status: Passed. Enable Data Packaging sent to TDA
[11:37:25]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  Sending Number of frames to capture with value of 0 to TDA..
[11:37:25]  [RadarAPI]: Status: Passed. Number of frames to capture sent to TDA
[11:37:25]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  [RadarAPI]: Status: Passed for notifying TDA about Creating Application
[11:37:25]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:25]  [RadarAPI]: Status: Passed for notifying TDA about Start Frame
[11:37:25]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:37:35]  [RadarAPI]: ar1.StartFrame_mult(2)
[11:37:35]  [RadarAPI]: Status: Passed
[11:37:36]  [DeviceId-1] Frame start async event received!
[11:37:41]  [RadarAPI]: ar1.StartFrame_mult(4)
[11:37:41]  [RadarAPI]: Status: Passed
[11:37:41]  [DeviceId-2] Frame start async event received!
[11:37:45]  [RadarAPI]: ar1.StartFrame_mult(8)
[11:37:45]  [RadarAPI]: Status: Passed
[11:37:45]  [DeviceId-3] Frame start async event received!
[11:37:52]  [RadarAPI]: ar1.StartFrame_mult(1)
[11:37:53]  [RadarAPI]: Status: Passed
[11:37:53]  [DeviceId-0] Frame start async event received!
[11:37:53]  [RadarAPI]: Frame Ended
[11:37:53]  [DeviceId-3] Frame End async event received!
[11:37:53]  [DeviceId-0] Frame End async event received!
[11:37:53]  [DeviceId-2] Frame End async event received!
[11:37:53]  [DeviceId-1] Frame End async event received!
[11:37:53]  Status: Passed for notifying TDA about Stop Frame
[11:37:53]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[11:38:07]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_00_00\\mmWaveStudio\\PostProc\\adc_data2.bin")
[11:38:07]  [RadarAPI]: No of files Captured: 0, Total no of frames for each device : 8
[11:38:07]  Error : The number of files captured is zero!
[11:38:54]  RSTD.ShowLogFile()

    Hello,

    Herewith attached the log file.

    Thank you,

    Regards,

    Vaishnavi

  • 0 in reply to Vaishnavi Rao
    TI__Mastermind 31680 points

    Hello Vaishnavi,

    Thanks for your prompt response. I did take a look and I see you're using an older studio and firmware version.

    Can you possibly download the latest mmWave studio package for AWR1243 i.e mmWave studio 02_01_01_00.

    Also, the latest firmware is mmwave DFP_01_02_06_03.

    After upgrading, please try and execute the example scripts for cascade. And make sure to reset the setup a couple of times.

    Let us know your observations.

    Regards,

    Ishita

  • 0 in reply to Ishita Kochar
    Prodigy 20 points

    Fullscreen Log0082_0(Version_2_1_1_0).txt Download
    GM: Constructor
GM: Wed Mar 31 14:48:43 2021
RSTD.Transmit("/Settings")
[14:48:44]
[14:48:44]  ### Running Startup script: "C:\ti\mmwave_studio_02_01_01_00\mmWaveStudio\Scripts\Startup.lua" ###
[14:48:44]  RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[14:48:44]  RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[14:48:44]  Scripter ignored: Attempt to UnBuild() again or before Build.
[14:48:44]  RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[14:48:44]  RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[14:48:44]  RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[14:48:44]  RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[14:48:44]  RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[14:48:44]  RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[14:48:44]  RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\RunTime\\SAL.dll")
[14:48:44]  RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[14:48:44]  RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[14:48:44]  RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[14:48:44]  RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[14:48:44]  RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[14:48:44]  RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[14:48:44]  RSTD.Transmit("/")
[14:48:44]  RSTD.SaveSettings(): Settings saved to "C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\config.xml"
[14:48:44]  RSTD.Build()
[14:48:44]  RSTD.SaveSettings(): Settings saved to "C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\config.xml"
[14:48:44]  RSTD.Transmit("/")
[14:48:44]  RSTD.AL_Build()
[14:48:44]  RSTD.AL_LoadXml()
[14:48:44]  RSTD.Transmit("/")
[14:48:44]  RSTD.AL_Init()
[14:48:44]  RSTD.Clients_Build()
[14:48:44]  GM: Init
[14:48:44]  GM: Loaded 'C:\ti\mmwave_studio_02_01_01_00\mmWaveStudio\Clients\\LabClient.dll'
[14:48:44]  GM: 1 Guest (s) init
[14:48:44]  GM: 1 Module(s) init
[14:48:44]  GM: 2 Tab   (s) init
[14:48:44]  RSTD.Client_LoadXml()
[14:48:44]  [RadarAPI]: ar1.selectRadarMode(0)
[14:48:44]  [RadarAPI]: Status: Passed
[14:48:44]  Matlab Runtime Engine is installed
[14:48:44]  [RadarAPI]: Starting Matlab Engine..
[14:48:51]  [RadarAPI]: Matlab Engine Started!
[14:48:53]  [RadarAPI]: ar1.selectCascadeMode(0)
[14:48:53]  [RadarAPI]: Status: Passed
[14:48:53]  [RadarAPI]: ar1.LoadSettings('C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\ar1gui.ini')
[14:48:53]  TESTING = false
[14:48:53]  RstdNet: Port 2777: Listening..
[14:48:53]
[14:48:53]  ***Script completed successfully.***
[14:49:00]  [RadarAPI]: ar1.selectRadarMode(1)
[14:49:00]  [RadarAPI]: ar1.selectCascadeMode(1)
[14:49:00]  [RadarAPI]: Status: Passed
[14:49:00]  [RadarAPI]: Status: Passed
[14:49:02]  [RadarAPI]: ar1.SelectCaptureDevice("TDA2XX")
[14:49:02]  [RadarAPI]: Status: Passed
[14:49:04]  [RadarAPI]: TDAStatusCallback Event Registered
[14:49:04]  [RadarAPI]: registerTDAStatusCallback Status: Passed
[14:49:04]  [RadarAPI]: ar1.ConnectTDA("192.168.33.180", 5001, 15)
[14:49:05]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:49:05]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_VERSION_INFO Async event recieved() with status 0. TDA Version : REL_VISION_SDK_03_07_01_00 Aug  5 2019 15:04:45 �4 2 a _ r 7 _ a d 1   !y�P�i�$y��P�i�'y��P�i�"
[14:49:05]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:49:06]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:49:06]  [RadarAPI]: ConnectTDACaptureCard Status: Passed
[14:49:06]  TDA Capture Card Status : CONNECTED!
[14:49:16]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:49:16]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:49:17]  [RadarAPI]: ar1.FullReset(1)
[14:49:17]  [RadarAPI]: Status: Passed
[14:49:17]  [RadarAPI]: ar1.SOPControl_mult(1,4)
[14:49:17]  [RadarAPI]: Status: Passed
[14:49:21]  [RadarAPI]: ar1.PowerOn_mult(1, 0, 1000, 0,0)
[14:49:21]  [RadarAPI]: Status: Passed
[14:49:21]  [DeviceId-0] MSS power up done async event received!
[14:49:54]  [RadarAPI]: ar1.DownloadBSSFw_mult(1,"C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin")
[14:49:54]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(1, C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin)
[14:50:10]  [DeviceId-0] MSS Boot Error status Async event recieved(0x1672C3)
[14:50:15]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[14:50:15]  [RadarAPI]: Status: Passed
[14:50:15]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[14:50:15]  [RadarAPI]: Status: Passed
[14:50:15]  [RadarAPI]: ar1.deviceVariantSelection("XWR1243")
[14:50:15]  [RadarAPI]: Status: Passed
[14:50:15]  [RadarAPI]: ar1.frequencyBandSelection("77G")
[14:50:15]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[14:50:15]  [RadarAPI]: Status: Passed
[14:50:15]  Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[14:50:15]  [RadarAPI]: ar1.RfEnable_mult(1)
[14:50:15]  [DeviceId-0] BSS power up done async event received!
[14:50:15]  [RadarAPI]: Status: Passed
[14:50:25]  [RadarAPI]: ar1.ChanNAdcConfig_mult(1, 1, 1, 0, 1, 1, 1, 1, 2, 1, 0, 1)
[14:50:26]  [RadarAPI]: Status: Passed
[14:50:27]  [RadarAPI]: ar1.LPModConfig_mult(1, 0,0)
[14:50:27]  [RadarAPI]: Status: Passed
[14:50:29]  [RadarAPI]: ar1.RfInit_mult(1)
[14:50:29]  [DeviceId-0] RF Init async event received!
[14:50:29]  [RadarAPI]: Status: Passed
[14:50:30]  [RadarAPI]: Time stamp, Temperture: 13769,30; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[14:50:41]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:50:41]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:50:42]  [RadarAPI]: ar1.FullReset(2)
[14:50:42]  [RadarAPI]: Status: Passed
[14:50:42]  [RadarAPI]: ar1.SOPControl_mult(2,4)
[14:50:42]  [RadarAPI]: Status: Passed
[14:50:44]  [DeviceId-1] MSS power up done async event received!
[14:50:44]  [RadarAPI]: ar1.AddDevice(2)
[14:50:44]  [RadarAPI]: Status: Passed
[14:50:48]  [RadarAPI]: ar1.DownloadBSSFw_mult(2,"C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin")
[14:50:48]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(2, C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin)
[14:51:04]  [DeviceId-1] MSS Boot Error status Async event recieved(0x167309)
[14:51:08]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[14:51:08]  [RadarAPI]: Status: Passed
[14:51:08]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[14:51:08]  [RadarAPI]: Status: Passed
[14:51:08]  Slave1 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[14:51:08]  [RadarAPI]: ar1.RfEnable_mult(2)
[14:51:09]  [DeviceId-1] BSS power up done async event received!
[14:51:09]  [RadarAPI]: Status: Passed
[14:51:17]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:51:17]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:51:18]  [RadarAPI]: ar1.FullReset(4)
[14:51:18]  [RadarAPI]: Status: Passed
[14:51:18]  [RadarAPI]: ar1.SOPControl_mult(4,4)
[14:51:18]  [RadarAPI]: Status: Passed
[14:51:23]  [DeviceId-2] MSS power up done async event received!
[14:51:23]  [RadarAPI]: ar1.AddDevice(4)
[14:51:23]  [RadarAPI]: Status: Passed
[14:51:26]  [RadarAPI]: ar1.DownloadBSSFw_mult(4,"C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin")
[14:51:26]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(4, C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin)
[14:51:42]  [DeviceId-2] MSS Boot Error status Async event recieved(0x1672AD)
[14:51:47]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[14:51:47]  [RadarAPI]: Status: Passed
[14:51:47]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[14:51:47]  [RadarAPI]: Status: Passed
[14:51:47]  Slave2 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[14:51:47]  [RadarAPI]: ar1.RfEnable_mult(4)
[14:51:47]  [DeviceId-2] BSS power up done async event received!
[14:51:47]  [RadarAPI]: Status: Passed
[14:51:55]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:51:55]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:51:55]  [RadarAPI]: ar1.FullReset(8)
[14:51:55]  [RadarAPI]: Status: Passed
[14:51:56]  [RadarAPI]: ar1.SOPControl_mult(8,4)
[14:51:56]  [RadarAPI]: Status: Passed
[14:51:58]  [DeviceId-3] MSS power up done async event received!
[14:51:58]  [RadarAPI]: ar1.AddDevice(8)
[14:51:58]  [RadarAPI]: Status: Passed
[14:52:03]  [RadarAPI]: ar1.DownloadBSSFw_mult(8,"C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin")
[14:52:03]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(8, C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin)
[14:52:19]  [DeviceId-3] MSS Boot Error status Async event recieved(0x166F83)
[14:52:22]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[14:52:22]  [RadarAPI]: Status: Passed
[14:52:22]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[14:52:22]  [RadarAPI]: Status: Passed
[14:52:23]  Slave3 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[14:52:23]  [RadarAPI]: ar1.RfEnable_mult(8)
[14:52:23]  [DeviceId-3] BSS power up done async event received!
[14:52:23]  [RadarAPI]: Status: Passed
[14:52:35]  [RadarAPI]: ar1.ChanNAdcConfig_mult(14, 1, 1, 0, 1, 1, 1, 1, 2, 1, 0, 2)
[14:52:35]  [RadarAPI]: Status: Passed
[14:52:36]  [RadarAPI]: ar1.LPModConfig_mult(14, 0,0)
[14:52:36]  [RadarAPI]: Status: Passed
[14:52:38]  [RadarAPI]: ar1.RfInit_mult(14)
[14:52:38]  [DeviceId-3] RF Init async event received!
[14:52:38]  [DeviceId-1] RF Init async event received!
[14:52:38]  [DeviceId-2] RF Init async event received!
[14:52:38]  [RadarAPI]: Time stamp, Temperture: 51101,47; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[14:52:38]  [RadarAPI]: Time stamp, Temperture: 51101,47; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[14:52:38]  [RadarAPI]: Time stamp, Temperture: 51101,47; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[14:52:38]  [RadarAPI]: Status: Passed
[14:52:48]  [RadarAPI]: ar1.DataPathConfig_mult(15, 513, 1216644097,0)
[14:52:48]  [RadarAPI]: Status: Passed
[14:52:50]  [RadarAPI]: ar1.LvdsClkConfig_mult(15, 1,1)
[14:52:50]  [RadarAPI]: Status: Passed
[14:52:53]  [RadarAPI]: ar1.LVDSLaneConfig_mult(15, 0, 1, 1, 1, 1, 1, 0,0)
[14:52:53]  [RadarAPI]: Status: Passed
[14:53:03]  [RadarAPI]: ar1.ProfileConfig_mult(15, 0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
[14:53:03]  [RadarAPI]: Status: Passed
[14:53:05]  [RadarAPI]: ar1.ChirpConfig_mult(15, 0, 0, 0, 0, 0, 0, 0, 1, 0,0)
[14:53:05]  [RadarAPI]: Status: Passed
[14:53:13]  Test Source Already Disabled...!!!
[14:53:13]  [RadarAPI]: ar1.DisableTestSource_mult(2,0)
[14:53:13]  [RadarAPI]: Status: Passed
[14:53:13]  [RadarAPI]: ar1.FrameConfig_mult(2, 0, 0, 8, 128, 40, 0, 0, 2)
[14:53:13]  [RadarAPI]: Status: Passed
[14:53:18]  Test Source Already Disabled...!!!
[14:53:18]  [RadarAPI]: ar1.DisableTestSource_mult(4,0)
[14:53:19]  [RadarAPI]: Status: Passed
[14:53:19]  [RadarAPI]: ar1.FrameConfig_mult(4, 0, 0, 8, 128, 40, 0, 0, 2)
[14:53:19]  [RadarAPI]: Status: Passed
[14:53:22]  Test Source Already Disabled...!!!
[14:53:22]  [RadarAPI]: ar1.DisableTestSource_mult(8,0)
[14:53:22]  [RadarAPI]: Status: Passed
[14:53:22]  [RadarAPI]: ar1.FrameConfig_mult(8, 0, 0, 8, 128, 40, 0, 0, 2)
[14:53:23]  [RadarAPI]: Status: Passed
[14:53:31]  [RadarAPI]: ar1.ProfileConfig_mult(1, 0, 77, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 0, 30)
[14:53:31]  [RadarAPI]: Status: Passed
[14:53:32]  [RadarAPI]: ar1.ChirpConfig_mult(1, 0, 0, 0, 0, 0, 0, 0, 1, 0,0)
[14:53:32]  [RadarAPI]: Status: Passed
[14:53:34]  Test Source Already Disabled...!!!
[14:53:34]  [RadarAPI]: ar1.DisableTestSource_mult(1,0)
[14:53:34]  [RadarAPI]: Status: Passed
[14:53:34]  [RadarAPI]: ar1.FrameConfig_mult(1, 0, 0, 8, 128, 40, 0, 0, 1)
[14:53:34]  [RadarAPI]: Status: Passed
[14:53:42]  [RadarAPI]: ar1.TDACaptureCard_StartRecord_mult(1, 0, 0, adc_data2, 0)
[14:53:42]  Device 0 - Configuring TDA with Width : 2048 and Height : 128
[14:53:42]  [RadarAPI]: Device 0 - setWidthAndHeight Status: Passed
[14:53:42]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:42]  Device 1 - Configuring TDA with Width : 2048 and Height : 128
[14:53:42]  [RadarAPI]: Device 1 - setWidthAndHeight Status: Passed
[14:53:42]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:42]  Device 2 - Configuring TDA with Width : 2048 and Height : 128
[14:53:42]  [RadarAPI]: Device 2 - setWidthAndHeight Status: Passed
[14:53:42]  Device 3 - Configuring TDA with Width : 2048 and Height : 128
[14:53:42]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:42]  [RadarAPI]: Device 3 - setWidthAndHeight Status: Passed
[14:53:42]  Sending Frame Periodicity of 40 to TDA..
[14:53:42]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:42]  [RadarAPI]: Status: Passed. Frame Periodicity sent to TDA
[14:53:42]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:42]  Sending Capture Directory with name /mnt/ssd/adc_data2 to TDA..
[14:53:42]  [RadarAPI]: Status: Passed. Capture Directory sent to TDA
[14:53:42]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:43]  Sending File Allocation of 0 files to TDA..
[14:53:43]  [RadarAPI]: Status: Passed. File Allocation sent to TDA
[14:53:43]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:43]  Sending Enable Data Packaging (0 - 16-bit; 1 - 12-bit) with value of 0 to TDA..
[14:53:43]  [RadarAPI]: Status: Passed. Enable Data Packaging sent to TDA
[14:53:43]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:43]  Sending Number of frames to capture with value of 0 to TDA..
[14:53:43]  [RadarAPI]: Status: Passed. Number of frames to capture sent to TDA
[14:53:43]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:43]  [RadarAPI]: Status: Passed for notifying TDA about Creating Application
[14:53:43]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:53:43]  [RadarAPI]: Status: Passed for notifying TDA about Start Frame
[14:53:43]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:54:10]  [RadarAPI]: ar1.StartFrame_mult(2)
[14:54:10]  [RadarAPI]: Status: Passed
[14:54:10]  [DeviceId-1] Frame start async event received!
[14:54:14]  [RadarAPI]: ar1.StartFrame_mult(4)
[14:54:14]  [RadarAPI]: Status: Passed
[14:54:14]  [DeviceId-2] Frame start async event received!
[14:54:18]  [RadarAPI]: ar1.StartFrame_mult(8)
[14:54:18]  [RadarAPI]: Status: Passed
[14:54:18]  [DeviceId-3] Frame start async event received!
[14:54:25]  [RadarAPI]: ar1.StartFrame_mult(1)
[14:54:25]  [RadarAPI]: Status: Passed
[14:54:25]  [DeviceId-0] Frame start async event received!
[14:54:25]  [RadarAPI]: Frame Ended
[14:54:25]  [DeviceId-3] Frame End async event received!
[14:54:25]  [DeviceId-0] Frame End async event received!
[14:54:25]  [DeviceId-1] Frame End async event received!
[14:54:25]  [DeviceId-2] Frame End async event received!
[14:54:25]  Status: Passed for notifying TDA about Stop Frame
[14:54:25]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[14:54:49]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data2.bin")
[14:54:49]  [RadarAPI]: No of files Captured: 0, Total no of frames for each device : 8
[14:54:49]  Error : The number of files captured is zero!
[14:54:59]  RSTD.ShowLogFile()

    Hi Ishita,

    Herewith attached the output log from mmwave studio version 02_01_01_00 and with mmwave_dfp_01_02_06_03. After resetting several times, still it shows the same error.

    Thank you,

    Kind Regards,

    Vaishnavi Rao

  • 0 in reply to Ishita Kochar
    Prodigy 20 points

    Fullscreen Log0106_0(Cascade_configuration_MIMO).txt Download
    GM: Constructor
GM: Fri Apr 02 10:33:34 2021
RSTD.Transmit("/Settings")
[10:33:35]
[10:33:35]  ### Running Startup script: "C:\ti\mmwave_studio_02_01_01_00\mmWaveStudio\Scripts\Startup.lua" ###
[10:33:35]  RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[10:33:35]  RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[10:33:35]  Scripter ignored: Attempt to UnBuild() again or before Build.
[10:33:35]  RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[10:33:35]  RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[10:33:36]  RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[10:33:36]  RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[10:33:36]  RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[10:33:36]  RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[10:33:36]  RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\RunTime\\SAL.dll")
[10:33:36]  RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[10:33:36]  RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[10:33:36]  RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[10:33:36]  RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[10:33:36]  RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[10:33:36]  RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[10:33:36]  RSTD.Transmit("/")
[10:33:37]  RSTD.SaveSettings(): Settings saved to "C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\config.xml"
[10:33:37]  RSTD.Build()
[10:33:37]  RSTD.SaveSettings(): Settings saved to "C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\config.xml"
[10:33:37]  RSTD.Transmit("/")
[10:33:37]  RSTD.AL_Build()
[10:33:37]  RSTD.AL_LoadXml()
[10:33:37]  RSTD.Transmit("/")
[10:33:37]  RSTD.AL_Init()
[10:33:37]  RSTD.Clients_Build()
[10:33:37]  GM: Init
[10:33:37]  GM: Loaded 'C:\ti\mmwave_studio_02_01_01_00\mmWaveStudio\Clients\\LabClient.dll'
[10:33:37]  GM: 1 Guest (s) init
[10:33:37]  GM: 1 Module(s) init
[10:33:37]  GM: 2 Tab   (s) init
[10:33:37]  RSTD.Client_LoadXml()
[10:33:38]  [RadarAPI]: ar1.selectRadarMode(0)
[10:33:38]  [RadarAPI]: Status: Passed
[10:33:38]  Matlab Runtime Engine is installed
[10:33:38]  [RadarAPI]: Starting Matlab Engine..
[10:37:46]  [RadarAPI]: Matlab Engine Started!
[10:37:52]  [RadarAPI]: ar1.selectCascadeMode(0)
[10:37:52]  [RadarAPI]: Status: Passed
[10:37:52]  [RadarAPI]: ar1.LoadSettings('C:\Users\Sandeep Maiya\AppData\Roaming\RSTD\ar1gui.ini')
[10:37:53]  TESTING = false
[10:37:53]  RstdNet: Port 2777: Listening..
[10:37:53]
[10:37:53]  ***Script completed successfully.***
[10:37:59]  [RadarAPI]: ar1.selectRadarMode(1)
[10:37:59]  [RadarAPI]: ar1.selectCascadeMode(1)
[10:37:59]  [RadarAPI]: Status: Passed
[10:37:59]  [RadarAPI]: Status: Passed
[10:38:43]  Setting up Studio for Cascade started..
[10:38:43]  [RadarAPI]: ar1.SelectCaptureDevice("TDA2XX")
[10:38:43]  [RadarAPI]: Status: Passed
[10:38:44]  [RadarAPI]: TDAStatusCallback Event Registered
[10:38:44]  [RadarAPI]: registerTDAStatusCallback Status: Passed
[10:38:44]  [RadarAPI]: ar1.ConnectTDA("192.168.33.180", 5001, 15)
[10:38:44]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:38:44]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_VERSION_INFO Async event recieved() with status 0. TDA Version : REL_VISION_SDK_03_07_01_00 Aug  5 2019 15:04:45 �]������ +H`                           �
[10:38:44]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:38:45]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:38:46]  [RadarAPI]: ConnectTDACaptureCard Status: Passed
[10:38:46]  TDA Capture Card Status : CONNECTED!
[10:38:46]  ConnectTDA Successful
[10:38:46]  selectCascadeMode Successful
[10:38:46]  Setting up Studio for Cascade ended..
[10:38:46]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:38:46]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:38:46]  [RadarAPI]: ar1.FullReset(1)
[10:38:46]  [RadarAPI]: Status: Passed
[10:38:47]  [RadarAPI]: ar1.SOPControl_mult(1,4)
[10:38:47]  [RadarAPI]: Status: Passed
[10:38:47]  Master : SOP Reset Successful
[10:38:48]  [RadarAPI]: ar1.PowerOn_mult(1, 0, 1000, 0,0)
[10:38:48]  [RadarAPI]: Status: Passed
[10:38:49]  [DeviceId-0] MSS power up done async event received!
[10:38:49]  Master : SPI Connection Successful
[10:38:49]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(1, C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin)
[10:39:05]  Master : FW Download Successful
[10:39:06]  [DeviceId-0] MSS Boot Error status Async event recieved(0x1672BE)
[10:39:07]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[10:39:07]  [RadarAPI]: Status: Passed
[10:39:07]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[10:39:07]  [RadarAPI]: Status: Passed
[10:39:07]  [RadarAPI]: ar1.deviceVariantSelection("XWR1243")
[10:39:07]  [RadarAPI]: Status: Passed
[10:39:08]  [RadarAPI]: ar1.frequencyBandSelection("77G")
[10:39:08]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[10:39:08]  [RadarAPI]: Status: Passed
[10:39:09]  Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[10:39:09]  [RadarAPI]: ar1.RfEnable_mult(1)
[10:39:09]  [RadarAPI]: Status: Passed
[10:39:10]  [DeviceId-0] BSS power up done async event received!
[10:39:11]  Master : RF Power Up Successful
[10:39:12]  [RadarAPI]: ar1.ChanNAdcConfig_mult(1, 1, 1, 1, 1, 1, 1, 1, 2, 1, 0, 1)
[10:39:13]  [RadarAPI]: Status: Passed
[10:39:14]  Master : Channel & ADC Configuration Successful
[10:39:14]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:39:14]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:39:15]  [RadarAPI]: ar1.FullReset(2)
[10:39:15]  [RadarAPI]: Status: Passed
[10:39:15]  [RadarAPI]: ar1.SOPControl_mult(2,4)
[10:39:15]  [RadarAPI]: Status: Passed
[10:39:15]  Device 2 : SOP Reset Successful
[10:39:15]  [RadarAPI]: ar1.AddDevice(2)
[10:39:15]  [RadarAPI]: Status: Passed
[10:39:15]  [DeviceId-1] MSS power up done async event received!
[10:39:16]  Device 2 : SPI Connection Successful
[10:39:16]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:39:16]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:39:16]  [RadarAPI]: ar1.FullReset(4)
[10:39:16]  [RadarAPI]: Status: Passed
[10:39:16]  [RadarAPI]: ar1.SOPControl_mult(4,4)
[10:39:16]  [RadarAPI]: Status: Passed
[10:39:16]  Device 3 : SOP Reset Successful
[10:39:17]  [RadarAPI]: ar1.AddDevice(4)
[10:39:17]  [RadarAPI]: Status: Passed
[10:39:17]  [DeviceId-2] MSS power up done async event received!
[10:39:17]  Device 3 : SPI Connection Successful
[10:39:17]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:39:18]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:39:18]  [RadarAPI]: ar1.FullReset(8)
[10:39:18]  [RadarAPI]: Status: Passed
[10:39:18]  [RadarAPI]: ar1.SOPControl_mult(8,4)
[10:39:18]  [RadarAPI]: Status: Passed
[10:39:18]  Device 4 : SOP Reset Successful
[10:39:18]  [RadarAPI]: ar1.AddDevice(8)
[10:39:18]  [RadarAPI]: Status: Passed
[10:39:19]  [DeviceId-3] MSS power up done async event received!
[10:39:19]  Device 4 : SPI Connection Successful
[10:39:19]  [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(14, C:\\ti\\mmwave_dfp_01_02_06_03\\firmware\\xwr12xx_metaImage.bin)
[10:39:35]  [DeviceId-1] MSS Boot Error status Async event recieved(0x167383)
[10:39:35]  [DeviceId-2] MSS Boot Error status Async event recieved(0x1672AD)
[10:39:35]  [DeviceId-3] MSS Boot Error status Async event recieved(0x166F83)
[10:39:36]  Slaves : FW Download Successful
[10:39:36]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[10:39:36]  [RadarAPI]: Status: Passed
[10:39:36]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[10:39:36]  [RadarAPI]: Status: Passed
[10:39:37]  Slave1 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[10:39:37]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[10:39:37]  [RadarAPI]: Status: Passed
[10:39:37]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[10:39:37]  [RadarAPI]: Status: Passed
[10:39:37]  Slave2 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[10:39:38]  [RadarAPI]: ar1.SelectChipVersion("AR1243")
[10:39:38]  [RadarAPI]: Status: Passed
[10:39:38]  [RadarAPI]: ar1.SelectChipVersion("XWR1243")
[10:39:38]  [RadarAPI]: Status: Passed
[10:39:38]  Slave3 Device Status : XWR1243/ASIL-B/SOP:4/ES:3
[10:39:38]  [RadarAPI]: ar1.RfEnable_mult(14)
[10:39:39]  [RadarAPI]: Status: Passed
[10:39:39]  [DeviceId-1] BSS power up done async event received!
[10:39:39]  [DeviceId-2] BSS power up done async event received!
[10:39:39]  [DeviceId-3] BSS power up done async event received!
[10:39:44]  Slaves : RF Power Up Successful
[10:39:44]  [RadarAPI]: ar1.ChanNAdcConfig_mult(14, 1, 1, 1, 1, 1, 1, 1, 2, 1, 0, 2)
[10:39:44]  [RadarAPI]: Status: Passed
[10:39:44]  Slaves : Channel & ADC Configuration Successful
[10:39:44]  [RadarAPI]: ar1.RfLdoBypassConfig_mult(15, 0xF)
[10:39:44]  [RadarAPI]: Status: Passed
[10:39:44]  LDO Bypass Successful
[10:39:44]  [RadarAPI]: ar1.LPModConfig_mult(15, 0,0)
[10:39:44]  [RadarAPI]: Status: Passed
[10:39:44]  Low Power Mode Configuration Successful
[10:39:44]  [RadarAPI]: ar1.SetMiscConfig_mult(15,1)
[10:39:45]  [RadarAPI]: Status: Passed
[10:39:45]  Misc Control Configuration Successful
[10:39:45]  [RadarAPI]: ar1.RfInitCalibConfig_mult(15, 1, 1, 1, 1, 1, 1, 1, 65537)
[10:39:45]  [RadarAPI]: Status: Passed
[10:39:45]  RF Init Calibration Successful
[10:39:45]  [RadarAPI]: ar1.RfInit_mult(15)
[10:39:45]  [DeviceId-0] RF Init async event received!
[10:39:45]  [DeviceId-1] RF Init async event received!
[10:39:45]  [DeviceId-3] RF Init async event received!
[10:39:45]  [RadarAPI]: Time stamp, Temperture: 36209,33; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[10:39:45]  [RadarAPI]: Time stamp, Temperture: 6294,46; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[10:39:45]  [RadarAPI]: Time stamp, Temperture: 6294,38; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[10:39:45]  [DeviceId-2] RF Init async event received!
[10:39:45]  [RadarAPI]: Time stamp, Temperture: 6293,44; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[10:39:45]  [RadarAPI]: Status: Passed
[10:39:45]  RF Init Successful
[10:39:45]  [RadarAPI]: ar1.DataPathConfig_mult(15, 0, 1, 0)
[10:39:45]  [RadarAPI]: Status: Passed
[10:39:46]  Data Path Configuration Successful
[10:39:46]  [RadarAPI]: ar1.LvdsClkConfig_mult(15, 1,1)
[10:39:46]  [RadarAPI]: Status: Passed
[10:39:47]  Clock Configuration Successful
[10:39:47]  [RadarAPI]: ar1.CSI2LaneConfig_mult(15, 1, 0, 2, 0, 4, 0, 5,0,3,0)
[10:39:47]  [RadarAPI]: Status: Passed
[10:39:47]  CSI2 Configuration Successful
[10:39:47]  [RadarAPI]: ar1.ProfileConfig_mult(15, 0, 77, 5, 6, 40, 0, 0, 0, 0, 0, 0, 78.986, 0, 256, 8000, 0, 0, 48)
[10:39:47]  [RadarAPI]: Status: Passed
[10:39:47]  Profile Configuration successful
[10:39:47]  [RadarAPI]: ar1.ChirpConfig_mult(1, 0, 0, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:47]  [RadarAPI]: Status: Passed
[10:39:47]  Device 1 : Chirp 0 Configuration successful
[10:39:47]  [RadarAPI]: ar1.ChirpConfig_mult(1, 1, 1, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:47]  [RadarAPI]: Status: Passed
[10:39:47]  Device 1 : Chirp 1 Configuration successful
[10:39:47]  [RadarAPI]: ar1.ChirpConfig_mult(1, 2, 2, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 2 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 3, 3, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 3 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 4, 4, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 4 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 5, 5, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 5 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 6, 6, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 6 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 7, 7, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 7 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 8, 8, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 8 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 9, 9, 0, 0, 0, 0, 0, 0, 0,1)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 9 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 10, 10, 0, 0, 0, 0, 0, 0, 1,0)
[10:39:48]  [RadarAPI]: Status: Passed
[10:39:48]  Device 1 : Chirp 10 Configuration successful
[10:39:48]  [RadarAPI]: ar1.ChirpConfig_mult(1, 11, 11, 0, 0, 0, 0, 0, 1, 0,0)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:49]  Device 1 : Chirp 11 Configuration successful
[10:39:49]  [RadarAPI]: ar1.ChirpConfig_mult(2, 0, 0, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:49]  Device 2 : Chirp 0 Configuration successful
[10:39:49]  [RadarAPI]: ar1.ChirpConfig_mult(2, 1, 1, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:49]  Device 2 : Chirp 1 Configuration successful
[10:39:49]  [RadarAPI]: ar1.ChirpConfig_mult(2, 2, 2, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:49]  Device 2 : Chirp 2 Configuration successful
[10:39:49]  [RadarAPI]: ar1.ChirpConfig_mult(2, 3, 3, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:49]  Device 2 : Chirp 3 Configuration successful
[10:39:49]  [RadarAPI]: ar1.ChirpConfig_mult(2, 4, 4, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:49]  Device 2 : Chirp 4 Configuration successful
[10:39:49]  [RadarAPI]: ar1.ChirpConfig_mult(2, 5, 5, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:49]  Device 2 : Chirp 5 Configuration successful
[10:39:49]  [RadarAPI]: ar1.ChirpConfig_mult(2, 6, 6, 0, 0, 0, 0, 0, 0, 0,1)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:49]  Device 2 : Chirp 6 Configuration successful
[10:39:49]  [RadarAPI]: ar1.ChirpConfig_mult(2, 7, 7, 0, 0, 0, 0, 0, 0, 1,0)
[10:39:49]  [RadarAPI]: Status: Passed
[10:39:50]  Device 2 : Chirp 7 Configuration successful
[10:39:51]  [RadarAPI]: ar1.ChirpConfig_mult(2, 8, 8, 0, 0, 0, 0, 0, 1, 0,0)
[10:39:51]  [RadarAPI]: Status: Passed
[10:39:51]  Device 2 : Chirp 8 Configuration successful
[10:39:51]  [RadarAPI]: ar1.ChirpConfig_mult(2, 9, 9, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:51]  [RadarAPI]: Status: Passed
[10:39:52]  Device 2 : Chirp 9 Configuration successful
[10:39:52]  [RadarAPI]: ar1.ChirpConfig_mult(2, 10, 10, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:52]  [RadarAPI]: Status: Passed
[10:39:52]  Device 2 : Chirp 10 Configuration successful
[10:39:52]  [RadarAPI]: ar1.ChirpConfig_mult(2, 11, 11, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:52]  [RadarAPI]: Status: Passed
[10:39:52]  Device 2 : Chirp 11 Configuration successful
[10:39:52]  [RadarAPI]: ar1.ChirpConfig_mult(4, 0, 0, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:52]  [RadarAPI]: Status: Passed
[10:39:53]  Device 3 : Chirp 0 Configuration successful
[10:39:53]  [RadarAPI]: ar1.ChirpConfig_mult(4, 1, 1, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:53]  [RadarAPI]: Status: Passed
[10:39:53]  Device 3 : Chirp 1 Configuration successful
[10:39:53]  [RadarAPI]: ar1.ChirpConfig_mult(4, 2, 2, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:53]  [RadarAPI]: Status: Passed
[10:39:53]  Device 3 : Chirp 2 Configuration successful
[10:39:53]  [RadarAPI]: ar1.ChirpConfig_mult(4, 3, 3, 0, 0, 0, 0, 0, 0, 0,1)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 3 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(4, 4, 4, 0, 0, 0, 0, 0, 0, 1,0)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 4 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(4, 5, 5, 0, 0, 0, 0, 0, 1, 0,0)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 5 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(4, 6, 6, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 6 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(4, 7, 7, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 7 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(4, 8, 8, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 8 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(4, 9, 9, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 9 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(4, 10, 10, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 10 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(4, 11, 11, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:54]  [RadarAPI]: Status: Passed
[10:39:54]  Device 3 : Chirp 11 Configuration successful
[10:39:54]  [RadarAPI]: ar1.ChirpConfig_mult(8, 0, 0, 0, 0, 0, 0, 0, 0, 0,1)
[10:39:55]  [RadarAPI]: Status: Passed
[10:39:55]  Device 4 : Chirp 0 Configuration successful
[10:39:55]  [RadarAPI]: ar1.ChirpConfig_mult(8, 1, 1, 0, 0, 0, 0, 0, 0, 1,0)
[10:39:55]  [RadarAPI]: Status: Passed
[10:39:55]  Device 4 : Chirp 1 Configuration successful
[10:39:55]  [RadarAPI]: ar1.ChirpConfig_mult(8, 2, 2, 0, 0, 0, 0, 0, 1, 0,0)
[10:39:55]  [RadarAPI]: Status: Passed
[10:39:55]  Device 4 : Chirp 2 Configuration successful
[10:39:55]  [RadarAPI]: ar1.ChirpConfig_mult(8, 3, 3, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:55]  [RadarAPI]: Status: Passed
[10:39:55]  Device 4 : Chirp 3 Configuration successful
[10:39:55]  [RadarAPI]: ar1.ChirpConfig_mult(8, 4, 4, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:55]  [RadarAPI]: Status: Passed
[10:39:55]  Device 4 : Chirp 4 Configuration successful
[10:39:55]  [RadarAPI]: ar1.ChirpConfig_mult(8, 5, 5, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:55]  [RadarAPI]: Status: Passed
[10:39:55]  Device 4 : Chirp 5 Configuration successful
[10:39:55]  [RadarAPI]: ar1.ChirpConfig_mult(8, 6, 6, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:55]  [RadarAPI]: Status: Passed
[10:39:55]  Device 4 : Chirp 6 Configuration successful
[10:39:55]  [RadarAPI]: ar1.ChirpConfig_mult(8, 7, 7, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:55]  [RadarAPI]: Status: Passed
[10:39:55]  Device 4 : Chirp 7 Configuration successful
[10:39:55]  [RadarAPI]: ar1.ChirpConfig_mult(8, 8, 8, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:56]  [RadarAPI]: Status: Passed
[10:39:56]  Device 4 : Chirp 8 Configuration successful
[10:39:56]  [RadarAPI]: ar1.ChirpConfig_mult(8, 9, 9, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:56]  [RadarAPI]: Status: Passed
[10:39:56]  Device 4 : Chirp 9 Configuration successful
[10:39:56]  [RadarAPI]: ar1.ChirpConfig_mult(8, 10, 10, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:56]  [RadarAPI]: Status: Passed
[10:39:56]  Device 4 : Chirp 10 Configuration successful
[10:39:56]  [RadarAPI]: ar1.ChirpConfig_mult(8, 11, 11, 0, 0, 0, 0, 0, 0, 0,0)
[10:39:56]  [RadarAPI]: Status: Passed
[10:39:56]  Device 4 : Chirp 11 Configuration successful
[10:39:56]  Test Source Already Disabled...!!!
[10:39:56]  [RadarAPI]: ar1.DisableTestSource_mult(1,0)
[10:39:56]  [RadarAPI]: Status: Passed
[10:39:56]  [RadarAPI]: ar1.FrameConfig_mult(1, 0, 11, 10, 64, 100, 0, 0, 1)
[10:39:56]  [RadarAPI]: Status: Passed
[10:39:57]  Master : Frame Configuration successful
[10:39:57]  Test Source Already Disabled...!!!
[10:39:57]  [RadarAPI]: ar1.DisableTestSource_mult(14,0)
[10:39:57]  [RadarAPI]: Status: Passed
[10:39:57]  [RadarAPI]: ar1.FrameConfig_mult(14, 0, 11, 10, 64, 100, 0, 0, 2)
[10:39:58]  [RadarAPI]: Status: Passed
[10:39:58]  Slaves : Frame Configuration successful
[10:39:58]
[10:39:58]  ***Script completed successfully.***
[10:40:23]  Loops Remaining : 1
[10:40:23]  Starting TDA ARM...
[10:40:23]  [RadarAPI]: ar1.TDACaptureCard_StartRecord_mult(1, 0, 0, Cascade_Capture_1, 0)
[10:40:23]  Device 0 - Configuring TDA with Width : 2048 and Height : 768
[10:40:23]  [RadarAPI]: Device 0 - setWidthAndHeight Status: Passed
[10:40:23]  [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:23]  Device 1 - Configuring TDA with Width : 2048 and Height : 768
[10:40:23]  [RadarAPI]: Device 1 - setWidthAndHeight Status: Passed
[10:40:23]  Device 2 - Configuring TDA with Width : 2048 and Height : 768
[10:40:23]  [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:23]  [RadarAPI]: Device 2 - setWidthAndHeight Status: Passed
[10:40:23]  [RadarAPI]: Device 4 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:23]  Device 3 - Configuring TDA with Width : 2048 and Height : 768
[10:40:23]  [RadarAPI]: Device 3 - setWidthAndHeight Status: Passed
[10:40:23]  [RadarAPI]: Device 8 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:23]  Sending Frame Periodicity of 100 to TDA..
[10:40:23]  [RadarAPI]: Status: Passed. Frame Periodicity sent to TDA
[10:40:23]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:23]  Sending Capture Directory with name /mnt/ssd/Cascade_Capture_1 to TDA..
[10:40:23]  [RadarAPI]: Status: Passed. Capture Directory sent to TDA
[10:40:23]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:23]  Sending File Allocation of 0 files to TDA..
[10:40:23]  [RadarAPI]: Status: Passed. File Allocation sent to TDA
[10:40:23]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:23]  Sending Enable Data Packaging (0 - 16-bit; 1 - 12-bit) with value of 0 to TDA..
[10:40:23]  [RadarAPI]: Status: Passed. Enable Data Packaging sent to TDA
[10:40:23]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:24]  Sending Number of frames to capture with value of 0 to TDA..
[10:40:24]  [RadarAPI]: Status: Passed. Number of frames to capture sent to TDA
[10:40:24]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:24]  [RadarAPI]: Status: Passed for notifying TDA about Creating Application
[10:40:24]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:24]  [RadarAPI]: Status: Passed for notifying TDA about Start Frame
[10:40:24]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:24]  TDA ARM Successful
[10:40:25]  Starting Frame Trigger sequence...
[10:40:25]  [RadarAPI]: ar1.StartFrame_mult(8)
[10:40:25]  [RadarAPI]: Status: Passed
[10:40:25]  [DeviceId-3] Frame start async event received!
[10:40:25]  Device 4 : Start Frame Successful
[10:40:25]  [RadarAPI]: ar1.StartFrame_mult(4)
[10:40:25]  [RadarAPI]: Status: Passed
[10:40:25]  [DeviceId-2] Frame start async event received!
[10:40:26]  Device 3 : Start Frame Successful
[10:40:26]  [RadarAPI]: ar1.StartFrame_mult(2)
[10:40:26]  [RadarAPI]: Status: Passed
[10:40:26]  [DeviceId-1] Frame start async event received!
[10:40:26]  Device 2 : Start Frame Successful
[10:40:26]  [RadarAPI]: ar1.StartFrame_mult(1)
[10:40:26]  [RadarAPI]: Status: Passed
[10:40:26]  [DeviceId-0] Frame start async event received!
[10:40:26]  Device 1 : Start Frame Successful
[10:40:27]  Capturing AWR device data to the TDA SSD...
[10:40:27]  [RadarAPI]: Frame Ended
[10:40:27]  [DeviceId-3] Frame End async event received!
[10:40:27]  [DeviceId-2] Frame End async event received!
[10:40:27]  [DeviceId-0] Frame End async event received!
[10:40:27]  [DeviceId-1] Frame End async event received!
[10:40:27]  Status: Passed for notifying TDA about Stop Frame
[10:40:27]  [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[10:40:30]  Capture sequence completed...
[10:40:32]
[10:40:32]  ***Script completed successfully.***

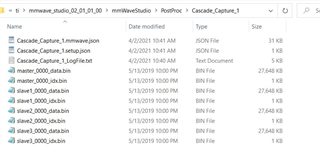

[10:40:51]  Downloading file /mnt/ssd/Cascade_Capture_1/master_0000_data.bin...
[10:40:58]  Downloaded file /mnt/ssd/Cascade_Capture_1/master_0000_data.bin from SSD!
[10:40:58]  Downloading file /mnt/ssd/Cascade_Capture_1/master_0000_idx.bin...
[10:40:58]  Downloaded file /mnt/ssd/Cascade_Capture_1/master_0000_idx.bin from SSD!
[10:40:58]  Downloading file /mnt/ssd/Cascade_Capture_1/slave1_0000_data.bin...
[10:41:05]  Downloaded file /mnt/ssd/Cascade_Capture_1/slave1_0000_data.bin from SSD!
[10:41:05]  Downloading file /mnt/ssd/Cascade_Capture_1/slave1_0000_idx.bin...
[10:41:05]  Downloaded file /mnt/ssd/Cascade_Capture_1/slave1_0000_idx.bin from SSD!
[10:41:05]  Downloading file /mnt/ssd/Cascade_Capture_1/slave2_0000_data.bin...
[10:41:11]  Downloaded file /mnt/ssd/Cascade_Capture_1/slave2_0000_data.bin from SSD!
[10:41:11]  Downloading file /mnt/ssd/Cascade_Capture_1/slave2_0000_idx.bin...
[10:41:11]  Downloaded file /mnt/ssd/Cascade_Capture_1/slave2_0000_idx.bin from SSD!
[10:41:11]  Downloading file /mnt/ssd/Cascade_Capture_1/slave3_0000_data.bin...
[10:41:17]  Downloaded file /mnt/ssd/Cascade_Capture_1/slave3_0000_data.bin from SSD!
[10:41:17]  Downloading file /mnt/ssd/Cascade_Capture_1/slave3_0000_idx.bin...
[10:41:18]  Downloaded file /mnt/ssd/Cascade_Capture_1/slave3_0000_idx.bin from SSD!
[10:41:21]  Export Operation was successful!
[10:41:21]  [RadarAPI]: Transfer of the Captured files COMPLETE!
[10:41:56]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\Cascade_Capture_1.bin")
[10:41:56]  [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 10
[10:42:37]  [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\Cascade_Capture_1.bin")
[10:42:37]  [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 10
[10:42:45]  RSTD.ShowLogFile()

    Hello Ishita,

    While trying with Lua script, I observe that the binary files are generated in the specified directory. But in the setup Json file, "numFilesCollected": 0. Herewith attached the output log from mmwave studio and screenshots of the directory and *setup.json file.

    Thank you,

    Kind Regards,

    Vaishnavi

  • +1 in reply to Vaishnavi Rao
    TI__Mastermind 31680 points

    Hello Vaishnavi,

    Thanks for the trying out the example lua scripts. From your mmWave Studio log, I can see you're able to successfully capture raw data and transfer it to your PC and that is also represented by the file size of master and slave data.bin files.

    Ignore the parameter in the setup Json file.

    I would request you take help from these scripts and build on it further to keep the timing of capture in sync.

    Hope this gets you started now.

    Regards,

    Ishita
