SN74CBTLV3125: level leakage problem

Stanley Dai

Part Number: SN74CBTLV3125
Other Parts Discussed in Thread: TMUX1511,

Hi Team,

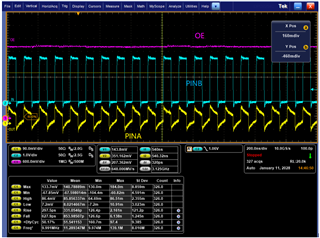

Customer finds the level leakage problem issue when OE pin is high. The detailed test waveform is attached below. And the signal frequency is around 10MHz. Could you pls help us check the possible root-cause here? Thanks.

Best,

Stanley

over 3 years ago

0 Clemens Ladisch over 3 years ago

Guru 316350 points

Use a modern device with better off isolation like the TMUX1511.

0 Rami Mooti1 over 3 years ago

TI__Mastermind 35168 points

Hey Stanley,

How is the IC being tested here? What do the traces look like.

What package are they using? As Clemens mentioned though, the newer TMUX1511 is a drop-in replacement with better off-isolation that would help mitigate any isolation issues on the chip side.

Thanks,
Rami

0 Stanley Dai over 3 years ago in reply to Clemens Ladisch

TI__Expert 5810 points

Hi Clemens,

So the leakage issue here for SN74CBTLV3125 is expected? What's the specs listed D/S reveal this isolation performance?

Best,

Stanley

+1 Clemens Ladisch over 3 years ago in reply to Stanley Dai

Guru 316350 points

The SN74CBTLV3125 datasheet does not specify off isolation or off leakage current. (While it also works as an analog switch, it was designed primarily for digital signals, where 200 mV of noise probably does not matter.)

The entire package acts like a small capacitor, so the leakage is worse for higher frequencies. To makes the edges slower, add source termination to the signal.
