TS3L500: Connecting multiple TSL500 in Series

Kazuki Itoh

Genius 10730 points

Part Number: TS3L500
Other Parts Discussed in Thread: TS5MP646

Hi team,

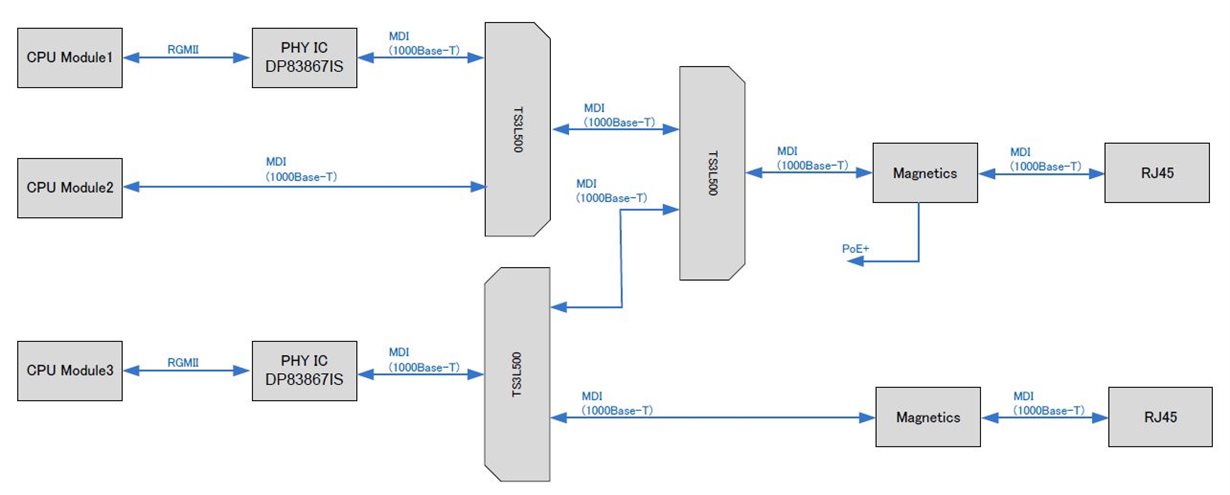

Could you please review this block diagram is OK?

My customer is trying to connect two TS3L500 in series.

Do you expect the signal quality is OK? Has TI ever supported the customer building system like this?

Or, if some transmission analysis/simulation is needed, is Ron=4Ohm Typ, CON = 8pf Typ. model is fine for the analysis?

Regards,

Itoh

over 5 years ago

0 Kate Dickson over 5 years ago

TI__Expert 5660 points

Itoh-san,

Thank you for sending the block diagram. After seeing the diagram, I would like to recommend TS5MP646 for this application. This switch has high bandwidth, additional features such as powered-off protection, and includes specifications for insertion loss.

Let me know what you think about TS5MP646.

Best regards,
Kate

0 Kazuki Itoh over 5 years ago in reply to Kate Dickson

TI__Genius 10730 points

Hi Kate,

Thanks for your recommendation.

Do you expect that the design with TS5M646 will pass Ether PHY compliance test?

Regards,

Itoh

0 Kate Dickson over 5 years ago in reply to Kazuki Itoh

TI__Expert 5660 points

Hi Itoh,

TS5MP646 supports up to 3 GHz bandwidth, which is compatible with the 1000Base-T data rate. Additionally, TS5MP646 supports I/O voltage range of 0V to 3.6V.

Ethernet PHY compliance is a system level test.

Best regards,
Kate
