TS5A22364: TS5A22364: Device Recommendation - Output High-Z Mode

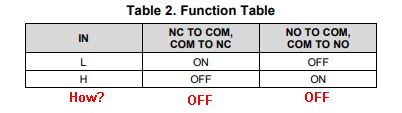

Do you want a SPST switch, or a SPDT switch with three states?

Hello Clemens, We need a dual Channel SPDT switch with Hi-Z mode for audio. Thanks a lot...Wayne Chen

Hi Wayne,

We don't have any parts that have the negative signaling capability that also have an enable pin to turn off the device and with a integrated shunt for the pop/click reduction.

What features besides being able to disable the IC, are you looking for in the IC? What voltage supply are you planning on using ?

Please let me know so we can try to find a solution for your application!

Best,

Parker Dodson

Hello Parker,

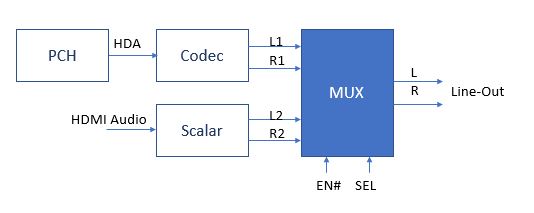

Thanks a lot. Customer is finding a MUX device with Hi-Z in shutdown for All-in-One PC with the block diagram below.
Power supply can be either 3.3V or 5.0V.



Thank you and Best regards,

Wayne Chen
11/03/2020

Do the boxes labeled "Codec" and "Scalar" actually generate negative output signals?

Yes, they are DirectDrive output paths with negative output signals....Wayne Chen

Hi Wayne,

Since the Codec/Scalar is outputting negative voltages w.r.t. ground and you are using a single sided supply we don't have any options that will fit your application.

Is there any way for us to use a bi-polar supply in this use case?  I feel this may be the only way to get the Hi-Z action that you require is to switch to different parts but you will lose the ability to pass negative signals with a single sided supply.

Please let me know.

Best,

Parker Dodson

Thank a lot. Do we have a single supply solution? I can discuss with customer to add DC block capacitors at the output of the MUX...Wayne Chen

Hi Wayne,

Unfortunately the only single sided audio solutions that can pass a negative signals are the TS5A22364,TS5A22362 and TS5A22364-Q1. These all can pass {VCC - 5.5V , VCC}, but they don't have a disable feature on them.

The other issues that we are facing is that we could see issues from is if we use the aforementioned audio parts and then try to have  a disable switch on the other side we would either need a dual supply for the second chip or replace the audio chip with a part that has dual supplies and use that to pass the audio band. The pop-click noise reduction seen from the audio switches is achieved through a shunt which can be added externally to help. But unfortunately we don't have a good single sided solution that meets your needs.

If the audio signal can have a DC level added in to keep everything positive we may have more solutions from a single sided perspective.

Are you using a negative supply rail for the Codec/Scaler or are they single sided as well?

Best,

Parker Dodson
