TS5A22364: Power amplifier switch

Josh5566

Part Number: TS5A22364

Hi,

Please help me check this if I use the switch for the direction.

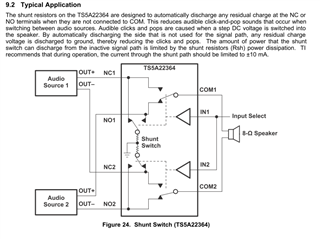

Because I saw the typical application from datasheet, it show NC1/NO1 , NC2/NO2 to COM1/2 for the direction. Please see the figure 1.

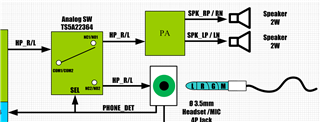

but I designed this is direction reversely, please see the figure2. Is it correct?

figure 1.

figure 2.

over 4 years ago

0 Bryan Marshall over 4 years ago

TI__Genius 10974 points

Hi Josh,

All TI analog switches/multiplexers are bidirectional which means that the I/O pins may be used as either inputs or outputs. So in your application, it is perfectly acceptable to use the TS5A22364 as a 1:2 switch.

See this TI training video for more information: Are switches & multiplexers bidirectional?

Thanks!

Bryan
