Using Code Composer Studio Version 4 with C6748 DSP

Hello Debarati,

Is this board from LogicPD? If so, you may want to check out their webpage. They have updated documentation and examples for CCSv4.

ki

Just adding to Ki's reply, also check this page for information on connecting CCS with C6748:
http://processors.wiki.ti.com/index.php/How_to_connect_to_the_OMAP-L138/C6748/AM1808_EVM_board_using_CCS%3F

Thanks! I will try this out!

Hi,

I tried out the instructions mentioned in the page which Aarti mentioned, however, I faced a problem when I tried to "Create a new target configuration" following the instructions under the heading "XDS100v1 embedded emulation - DSP only". As per the instructions mentioned in the video, for connection, I chose, "Texas Instruments Simulator". But I could not find any device named "TMS320C6748". Does any one have any idea on why this is happening?

Thanks in advance!

Regards,

Debarati.

Debarati Kundu said:

As per the instructions mentioned in the video, for connection, I chose, "Texas Instruments Simulator". But I could not find any device named "TMS320C6748".

The example video "Create a new target configuration" referenced here just shows the steps of creating a target configuration file and happens to create one for a simulator rather than a target device. It is there to familiarize you with the process of doing it. The actual selections you need to make are "Texas Instruments XDS100v1 USB Emulator" and "TMS320C6748" as shown in the page:
http://processors.wiki.ti.com/index.php/How_to_connect_to_the_OMAP-L138/C6748/AM1808_EVM_board_using_CCS%3F#XDS100v1_embedded_emulation_-_DSP_only_2

Hi Aarti,

My question was that after I selected "Texas Instruments XDS100v1 USB Emulator", I could not find any device named "TMS320C6748" in the list of devices. Do you know why this is happening?

Regards,

Debarati.

Did you download the microcontroller core (code size limited) version? That version only support MSP430 and C28x.

Actually, I installed CCS from the Version 4 CD. What should I do to get the C6748 device?

What is the version on that CD? What is the full version number of the CCS version you have installed (Help->About)?

I am using Code Composer Studio Version 4.0.1.01001. I find C6747 listed in the devices, but not C6748.

Can you update your version to the latest ('Help->Software Updates->Find and Install')?

Hi,

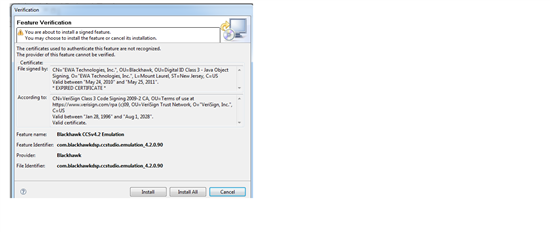

I tried to upgrade the software, but found some errors with that. The errors which I found was:

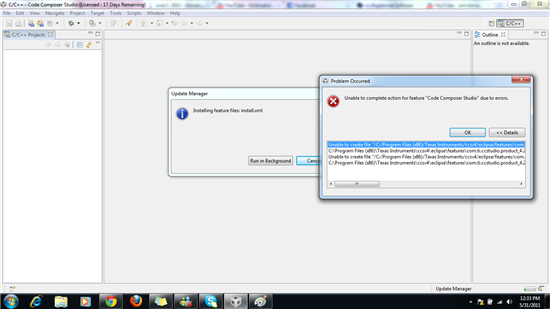

Debarati - It looks like the user account you are using with CCS does not have full administrator privileges and this is a problem if you have CCS installed in the default "Program Files (x86)" folder. You need admin privileges, otherwise it is recommended to install CCS outside the default location.

ki

Hi Ki,

I am also a bit surprised to get this error, because I am the only user of this computer and have administrative privileges. I will try to install it in a location outside the default location.

Regards,

Debarati.

Hi,

As per your suggestion I could upgrade the version of CCS4 to 4.2.3.00004 in a different computer. However, I still do not find "TMS320C6748" listed among the devices when I selected "Texas Instruments Simulator", or "Texas Instruments XDS100v1 USB Emulator", or "Texas Instruments XDS100v2 USB Emulator" for creating a new target configuration file. Can you please suggest what I should do?

Thanks in advance!

Regards,

Debarati.

Debarati,

The different computer you installed on... was it outside the default 'Program Files (x86)' folder and it was a clean folder (there was no other CCS installation in there)?

ki

Hi,

Thanks! As per your suggestions, I installed CCS4 freshly in a new empty folder under the C drive, and now I can find "TMS320C6748" listed among the devices. I am having some trouble with the subsequent steps. The instructions on the link: http://processors.wiki.ti.com/index.php/How_to_connect_to_the_OMAP-L138/C6748/AM1808_EVM_board_using_CCS%3F says that:

When connecting to DSP cores in the C6748, follow these steps:

1. Launch the Target Configuration created above
2. Select the top line of C674x_0 and right-click Connect Target
3. Now you are ready to start loading code and start debugging.

I could perform the previous step, where I added the gel file (downloaded from the LogicPD website) to the target configuration file. I right clicked on C674x_0 as per the instructions, however, am not able to find an option called "Connect Target". Can you please tell me how I can connect to the DSP using CCS4?

Thanks,

Debarati.

Debarati Kundu said:

I could perform the previous step, where I added the gel file (downloaded from the LogicPD website) to the target configuration file. I right clicked on C674x_0 as per the instructions, however, am not able to find an option called "Connect Target". Can you please tell me how I can connect to the DSP using CCS4?

After creating your target configuration, you need to launch a debug session for it. One you launch a debug session, the option to connect to the target will be available.

See the below video for an example of how to start a debug session for a target configuration and to connect to the target:

http://software-dl.ti.com/sdo/sdo_apps_public_sw/CCSv4/Demos/Manual_launch_of_target_configuration_shared/Manual_launch_of_target_configuration_shared.htm

Thanks

ki

Hi Ki,

Thanks for your suggestion. It works!

Can you please provide me with a link that provides some examples on how CCSv.4 can be used with TMS320C6748(OMAP L-138)? I am looking for some basic programs, e.g. a basic talkthrough program (between the signal generator and the oscilloscope).

Regards,

Debarati.

Glad to hear it is all working now!

As for links to examples and such, I'd suggest going through some of the content on the L1x wiki:

http://processors.wiki.ti.com/index.php/Category:OMAPL1

I think you can get some examples for you board from Logic's website.

And I'd also suggest looking around the L1x forum:

http://e2e.ti.com/support/dsp/omap_applications_processors/f/42.aspx

Good luck!

ki

Hi,

I am having some trouble in running some codes developed for C6748 using CCS V4.2.3. I am trying to initialize the AIC3106 codec. A subroutine of the code looks like:

Uint32 Write_I2C(Uint16 addr, Uint8* pdata, Uint16 num_bytes)

///////////////////////////////////////////////////////////////////////

// Purpose:   Write to device on I2C link

//

// Input:     addr - I2C address to write to

//            pdata - pointer to data to write

//            num_bytes - number of bytes of data to write

//

// Returns:   Nothing

//

// Calls:     wait, Reset_I2C

//

// Notes:     None

{

    volatile Int32 timeout, i,counter=0;

    I2C *i2c = I2C0_Base;

  i2c->cnt = num_bytes;

    i2c->sar = addr;

i2c->cmdr = ICCMDR_STT | ICCMDR_TRX | ICCMDR_MST | ICCMDR_IRS | ICCMDR_FREE;

wait(100);

for (i = 0;i < num_bytes;i++) {

i2c->dxr = pdata[i]; // write data

timeout = I2C_timeout;

        while((i2c->str & ICSTR_ICXRDY) == 0) {

if(timeout-- < 0) {

Reset_I2C();

return 0;

}

}

}

i2c->cmdr |= ICCMDR_STP; // force STOP

return i;

}

However, I find that, in the highlighted piece of code, the statement within the while loop always remains zero. Can you please tell me, what exactly is the function of i2c->str & ICSTR_ICXRDY and what is going wrong?

Thanks in advance!

Regards,

Debarati.
