CODECOMPOSER: Missing option to configure VREF+ output in Sysconfig MSPM0G1518

Timon Büttner

Part Number: CODECOMPOSER
Other Parts Discussed in Thread: MSPM0G1518, LP-MSPM0G3519, SYSCONFIG, MSPM0G1507

Tool/software:

Hello,

in a project we are using the MSPM0G1518 (LQFP-64) and for firmware development the LP-MSPM0G3519.

When configuring the MCU using the Sysconfig (v1.25.0+4268) in CCS (v20.3.0) the option to assign a pin for outputting the internal reference voltage is missing. The 2.5V is present at PA23/24, though the pin can be configured for use as GPIO, since its not blocked by the VREF peripheral.

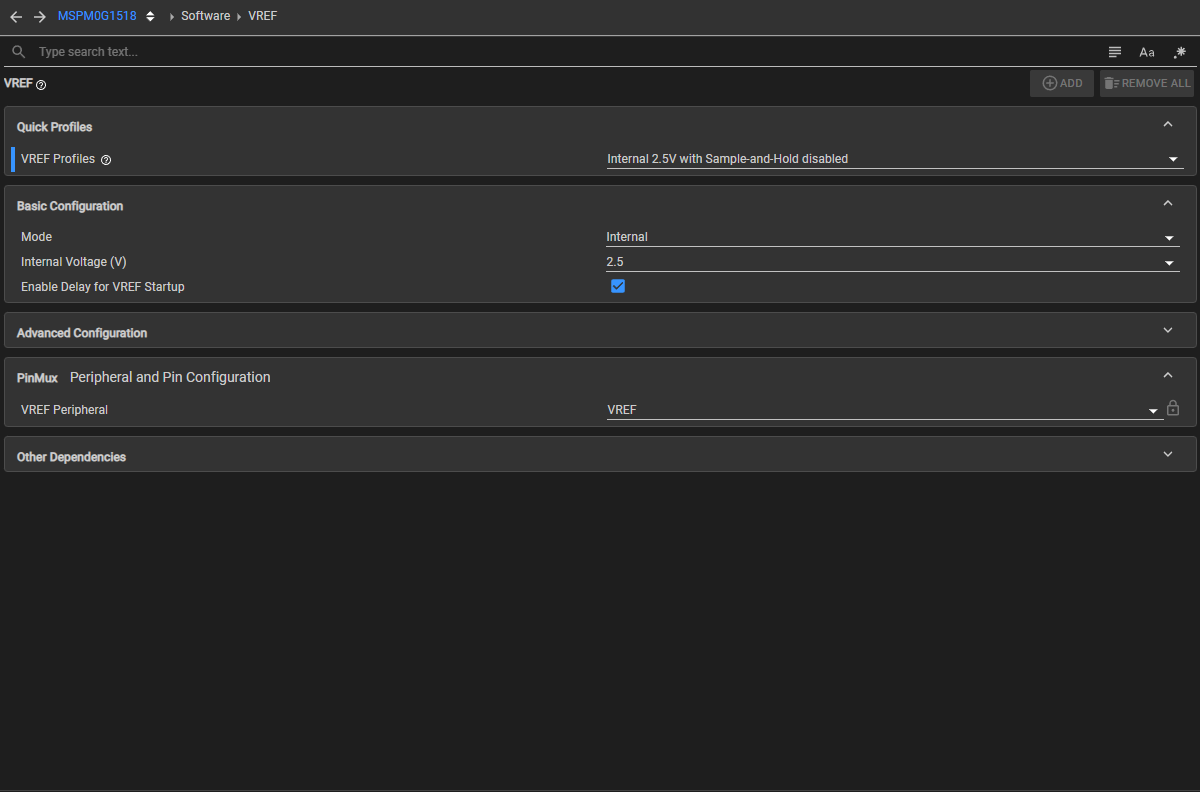

MSPM0G1518

In another project we use the MSPM0G1507, where this option is available in the syscfg.

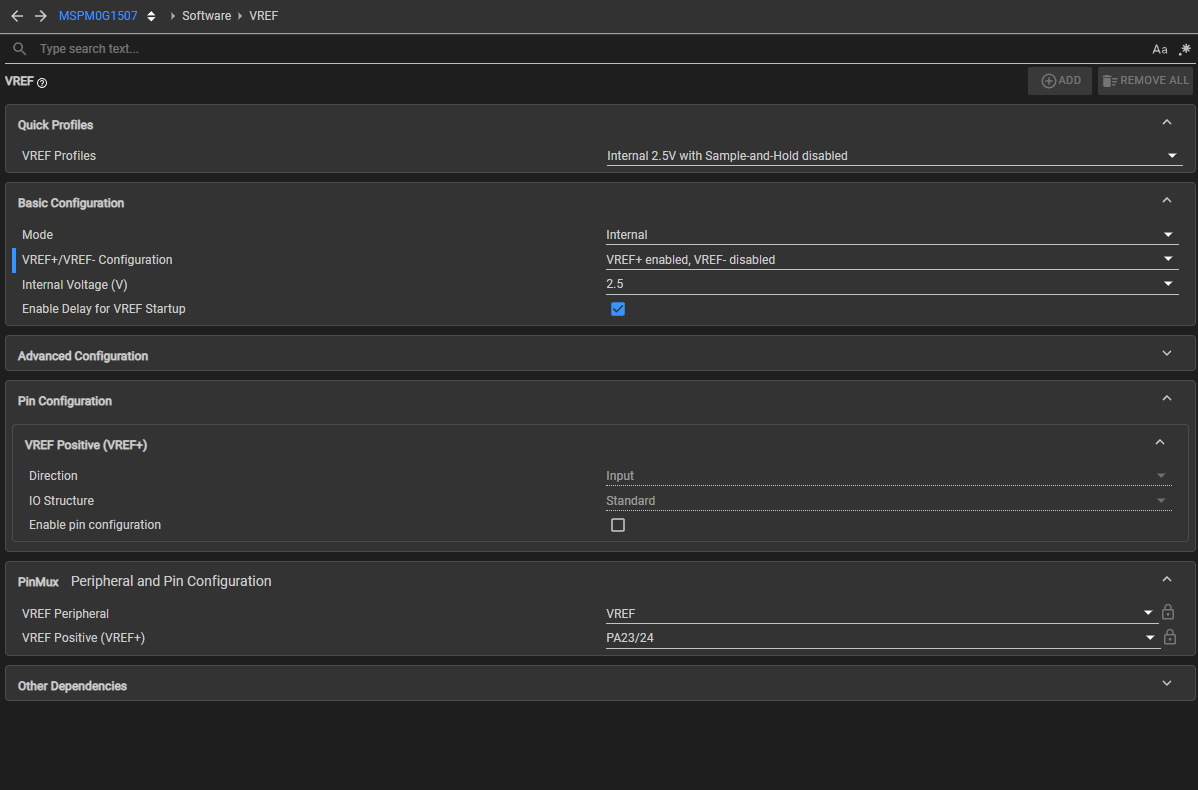

MSPM0G1507

In case VREF still offers the capabilities to deliver a reference voltage to other circuitry this is not a major issue, though it could lead to confusion when configuring pins. But maybe I'm missing something...

Thank you in advance.

3 days ago

0 Matthew Komitsky 3 days ago

TI__Intellectual 2510 points

Hi,

Select "Internal and External" from the "Mode" drop down, and you should see the option you are looking for.

-Matthew

0 Timon Büttner 2 days ago in reply to Matthew Komitsky

Prodigy 20 points

Hi Matthew,

you're right, this gives me the option to assign PA23 as VREF+, but the pin is than configured as an input, which cannot be changed.

When I understand the datasheet correctly, PA23 has to be assigned to PA23 as soon as VREF is enabled, since even the internal reference requires an external capacitor on this pin.

Timon

+1 Matthew Komitsky 2 days ago in reply to Timon Büttner

TI__Intellectual 2510 points

Hi,

It looks like there is a syscfg bug. I will report it

-Matthew

0 Timon Büttner 1 day ago in reply to Matthew Komitsky

Prodigy 20 points

Hello Matthew,

thank you for confirming and reporting it. :)

- Timon
