MSPM33-SDK: Difference between example and own project interface syscfg

Hi Sebastien,

I have not seen SOC0 Module Channel Name show before in the M33 Sysconfig, what version of the sdk/ccs/sysconfig are you using?

Thanks,

-Eric Rentschler

Hello Eric,

I use :

Where can I read version of sdk/ccs/sysconfig  ?

Best regards

Sebastien

Hi Sebastien,

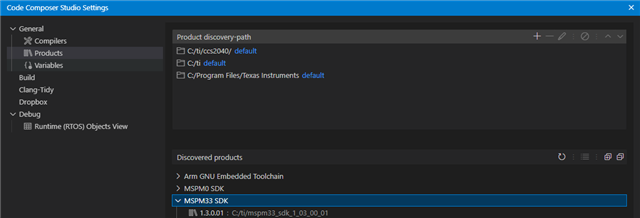

Your available SDK settings would be shown in the File -> Preferences -> Code Composer Studio Settings

I wasn't able to recreate it with just the latest version of CCS. Please, send your SDK and Sysconfig versions.

Thanks,

-Eric Rentschler

Hello Eric,

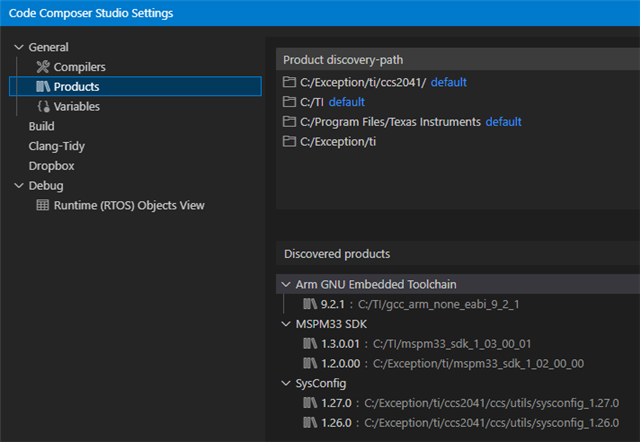

ok, so I have:

Have a nice day

Sebastien

Hi Sebastien,

Those version match what I have on my end, but I'm not able to recreate your issue. Can you send your .sysconfig file?

Thanks,

-Eric Rentschler

Hello Eric,

yes please find attached my .syscfg file

Sebastien

Attached file, did not work

/**
 * These arguments were used when this file was generated. They will be automatically applied on subsequent loads
 * via the GUI or CLI. Run CLI with '--help' for additional information on how to override these arguments.
 * @cliArgs --device "MSPM33C321X" --part "Default" --package "LQFP-100(PFA)" --product "mspm33_sdk@1.02.00.00"
 * @v2CliArgs --device "MSPM33C321A" --package "LQFP-100(PFA)" --product "mspm33_sdk@1.02.00.00"
 * @versions {"tool":"1.26.0+4407"}
 */

/**
 * Import the modules used in this configuration.
 */
const Board  = scripting.addModule("/ti/driverlib/Board");
const GPIO   = scripting.addModule("/ti/driverlib/GPIO", {}, false);
const GPIO1  = GPIO.addInstance();
const GPIO2  = GPIO.addInstance();
const GPIO3  = GPIO.addInstance();
const HSADC  = scripting.addModule("/ti/driverlib/HSADC", {}, false);
const HSADC1 = HSADC.addInstance();
const MCAN   = scripting.addModule("/ti/driverlib/MCAN", {}, false);
const MCAN1  = MCAN.addInstance();
const SPI    = scripting.addModule("/ti/driverlib/SPI", {}, false);
const SPI1   = SPI.addInstance();
const SYSCTL = scripting.addModule("/ti/driverlib/SYSCTL");
const TIMER  = scripting.addModule("/ti/driverlib/TIMER", {}, false);
const TIMER1 = TIMER.addInstance();
const WWDT   = scripting.addModule("/ti/driverlib/WWDT", {}, false);
const WWDT1  = WWDT.addInstance();

/**
 * Write custom configuration values to the imported modules.
 */
const divider2       = system.clockTree["EXTDIVCAN"];
divider2.divideValue = 1;

const multiplier2         = system.clockTree["PLL_QDIV"];
multiplier2.multiplyValue = 10;

const mux2       = system.clockTree["CANCLKMUX"];
mux2.inputSelect = "CANCLKMUX_EXTDIVCAN";

Board.peripheral.$assign = "DEBUGSS";

GPIO1.$name                               = "GPIO_LED";
GPIO1.associatedPins.create(2);
GPIO1.associatedPins[0].$name             = "LED_RED";
GPIO1.associatedPins[0].launchPadShortcut = "LED2RedEn";
GPIO1.associatedPins[1].$name             = "LED_GREEN";
GPIO1.associatedPins[1].launchPadShortcut = "LED2GreenEn";

GPIO2.$name                         = "GPIO_DEBUG";
GPIO2.associatedPins.create(2);
GPIO2.associatedPins[0].$name       = "OUT_1";
GPIO2.associatedPins[0].pin.$assign = "PA0";
GPIO2.associatedPins[1].$name       = "OUT_2";
GPIO2.associatedPins[1].pin.$assign = "PB8";

GPIO3.$name                                 = "GPIO_SPI_SMI_230";
GPIO3.associatedPins.create(4);
GPIO3.associatedPins[0].$name               = "CS_ACC";
GPIO3.associatedPins[0].initialValue        = "SET";
GPIO3.associatedPins[0].pin.$assign         = "PB3";
GPIO3.associatedPins[1].$name               = "CS_GYR";
GPIO3.associatedPins[1].initialValue        = "SET";
GPIO3.associatedPins[1].pin.$assign         = "PB14";
GPIO3.associatedPins[2].$name               = "INT_1_ACC";
GPIO3.associatedPins[2].direction           = "INPUT";
GPIO3.associatedPins[2].interruptEn         = true;
GPIO3.associatedPins[2].polarity            = "RISE";
GPIO3.associatedPins[2].assignedPort        = "PORTA";
GPIO3.associatedPins[2].assignedPortSegment = "Upper";
GPIO3.associatedPins[2].assignedPin         = "28";
GPIO3.associatedPins[2].interruptPriority   = "1";
GPIO3.associatedPins[2].pin.$assign         = "PA28";
GPIO3.associatedPins[3].$name               = "INT_3_GYR";
GPIO3.associatedPins[3].direction           = "INPUT";
GPIO3.associatedPins[3].assignedPort        = "PORTA";
GPIO3.associatedPins[3].assignedPortSegment = "Lower";
GPIO3.associatedPins[3].assignedPin         = "7";
GPIO3.associatedPins[3].interruptEn         = true;
GPIO3.associatedPins[3].polarity            = "RISE";
GPIO3.associatedPins[3].interruptPriority   = "1";
GPIO3.associatedPins[3].pin.$assign         = "PA7";

HSADC1.$name                          = "HSADC0";
HSADC1.soc3Channel                    = "ADC_CH_ADCIN_3";
HSADC1.seq4Enable                     = true;
HSADC1.seq4TriggerSel                 = "ADC_TRIGGER_GEN_SUB_0";
HSADC1.seq4SampleWindow               = 16;
HSADC1.enabledInts                    = ["ADC_INT_NUMBER_1"];
HSADC1.enableInterrupt1               = true;
HSADC1.enabledSOCs                    = ["ADC_SOC_NUMBER0"];
HSADC1.enabledSEQs                    = ["ADC_SEQ_NUMBER1"];
HSADC1.seq1Enable                     = true;
HSADC1.seq1SampleWindow               = 16;
HSADC1.enableInterrupt1ContinuousMode = true;
HSADC1.peripheral.$assign             = "ADC0";

MCAN1.$name                     = "MCAN0";
MCAN1.emulationEnable           = true;
MCAN1.autoWkupEnable            = true;
MCAN1.wkupReqEnable             = true;
MCAN1.tdcEnable                 = true;
MCAN1.useCalcDataVal            = false;
MCAN1.lss                       = 2;
MCAN1.stdFiltElem               = "001";
MCAN1.stdFiltType               = "01";
MCAN1.stdFiltID1                = 3;
MCAN1.stdFiltID2                = 4;
MCAN1.flesa                     = 0;
MCAN1.lse                       = 0;
MCAN1.txEventFIFOWaterMark      = 0;
MCAN1.rxFIFO0waterMark          = 0;
MCAN1.additionalCoreConfig      = true;
MCAN1.rrfs                      = true;
MCAN1.rrfe                      = true;
MCAN1.enableInterrupt           = true;
MCAN1.interruptLine             = ["DL_MCAN_INTR_LINE_NUM_1"];
MCAN1.interruptLine1Flag        = ["DL_MCAN_INTR_MASK_ALL"];
MCAN1.m0interrupts              = ["DL_MCAN_MSP_INTERRUPT_LINE1"];
MCAN1.anfe                      = "1";
MCAN1.anfs                      = "1";
MCAN1.interruptFlags            = ["DL_MCAN_INTERRUPT_ARA","DL_MCAN_INTERRUPT_BEU","DL_MCAN_INTERRUPT_BO","DL_MCAN_INTERRUPT_DRX","DL_MCAN_INTERRUPT_ELO","DL_MCAN_INTERRUPT_EP","DL_MCAN_INTERRUPT_EW","DL_MCAN_INTERRUPT_MRAF","DL_MCAN_INTERRUPT_PEA","DL_MCAN_INTERRUPT_PED","DL_MCAN_INTERRUPT_RF0N","DL_MCAN_INTERRUPT_TC","DL_MCAN_INTERRUPT_TOO","DL_MCAN_INTERRUPT_TSW","DL_MCAN_INTERRUPT_WDI"];
MCAN1.loopbackMode              = "external";
MCAN1.fdMode                    = false;
MCAN1.spPercent                 = 87;
MCAN1.nomRatePrescalar_manual   = 4;
MCAN1.nomTimeSeg1_manual        = 13;
MCAN1.nomTimeSeg2_manual        = 2;
MCAN1.nomSynchJumpWidth_manual  = 2;
MCAN1.dataRatePrescalar_manual  = 5;
MCAN1.dataTimeSeg1_manual       = 14;
MCAN1.dataTimeSeg2_manual       = 3;
MCAN1.dataSynchJumpWidth_manual = 3;
MCAN1.peripheral.$assign        = "CANFD0";
MCAN1.peripheral.rxPin.$assign  = "PA27";
MCAN1.peripheral.txPin.$assign  = "PA26";
MCAN1.txPinConfig.$name         = "ti_driverlib_gpio_GPIOPinGeneric4";
MCAN1.rxPinConfig.$name         = "ti_driverlib_gpio_GPIOPinGeneric5";

SPI1.$name                      = "SPI_0";
SPI1.polarity                   = "1";
SPI1.phase                      = "1";
SPI1.peripheral.sclkPin.$assign = "PB18";
SPI1.peripheral.mosiPin.$assign = "PB17";
SPI1.peripheral.misoPin.$assign = "PB19";
SPI1.peripheral.cs0Pin.$assign  = "PA2";
SPI1.sclkPinConfig.$name        = "ti_driverlib_gpio_GPIOPinGeneric0";
SPI1.mosiPinConfig.$name        = "ti_driverlib_gpio_GPIOPinGeneric1";
SPI1.misoPinConfig.$name        = "ti_driverlib_gpio_GPIOPinGeneric2";
SPI1.cs0PinConfig.$name         = "ti_driverlib_gpio_GPIOPinGeneric3";

SYSCTL.SYSPLL_Pdiv           = 1;
SYSCTL.SYSPLL_CLK0En         = true;
SYSCTL.SYSPLL_CLK1Div        = 6;
SYSCTL.MCLKSource            = "HSCLK";
SYSCTL.SYSPLL_CLK0Div        = 1;
SYSCTL.useHFCLK_Manual       = true;
SYSCTL.HFCLKSource           = "HFXT";
SYSCTL.HFCLK_Freq            = 40000000;
SYSCTL.forceDefaultClkConfig = true;
SYSCTL.CANCLKSource          = "HFCLK";

TIMER1.$name               = "TIMER_0";
TIMER1.timerClkDiv         = 8;
TIMER1.timerClkPrescale    = 10;
TIMER1.timerMode           = "PERIODIC";
TIMER1.timerPeriod         = "0.5 ms";
TIMER1.enableRepeatCounter = true;
TIMER1.repeatCounter       = 2;
TIMER1.interrupts          = ["REPC"];

WWDT1.$name        = "WWDT0";
WWDT1.periodCount  = "10";
WWDT1.clockDivider = "2";

const ProjectConfig              = scripting.addModule("/ti/project_config/ProjectConfig", {}, false);
ProjectConfig.migrationCondition = true;

/**
 * Pinmux solution for unlocked pins/peripherals. This ensures that minor changes to the automatic solver in a future
 * version of the tool will not impact the pinmux you originally saw.  These lines can be completely deleted in order to
 * re-solve from scratch.
 */
Board.peripheral.swclkPin.$suggestSolution   = "PA20";
Board.peripheral.swdioPin.$suggestSolution   = "PA19";
GPIO1.associatedPins[0].pin.$suggestSolution = "PC26";
GPIO1.associatedPins[1].pin.$suggestSolution = "PC27";
SPI1.peripheral.$suggestSolution             = "UC2";
SYSCTL.peripheral.$suggestSolution           = "SYSCTL";
SYSCTL.peripheral.hfxInPin.$suggestSolution  = "PA5";
SYSCTL.peripheral.hfxOutPin.$suggestSolution = "PA6";
TIMER1.peripheral.$suggestSolution           = "TIMA0_0";
WWDT1.peripheral.$suggestSolution            = "WWDT0";

Hi Sebastien,

I loaded your syscfg into my local setup and I was not able to recreate the issue you were seeing, can you try to do a fresh install and create a new project with the same settings?

Thanks,

-Eric Rentschler
