Graph tool of CCSv5 does not display float data

Daniele Angelosante

Other Parts Discussed in Thread: TMS320C28346, CONTROLSUITE

Hi,

I am using a TI Delfino TMS320C28346 and CCSv5 and I want to dispay via the Graph CCS a floating point (float32) vector.

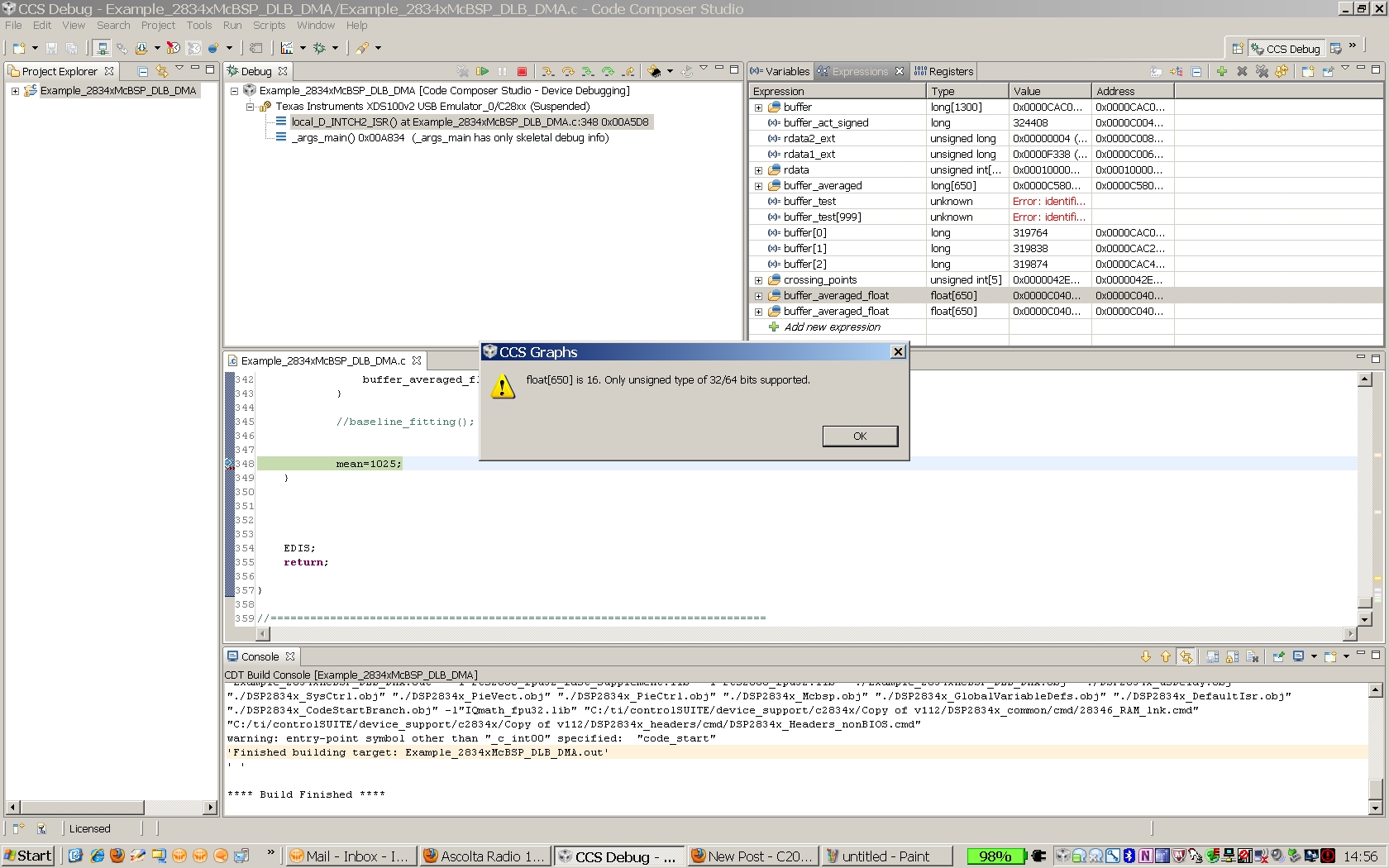

When I try to use the Graph CCS on the float32 vector, this error message appear "float is 16. Only 32/64 bit usinged int supported" (See image below).

Is there a way for displaying floating point data?

Best

over 13 years ago

desouza over 13 years ago

TI__Guru**** 171254 points

Hi,

Check attached; I could show 32-bit floating point data on the Single Time Graph tool - I used the example code F2806_FPU_Hardware in the controlsuite.

Therefore I am not entirely sure what may be happening in your case; looking at your screenshot it indicates that you may be inadvertedly passing the address of the element instead of its contents.

Hope this helps,

Rafael

Daniele Angelosante over 13 years ago in reply to desouza

Prodigy 205 points

Dear Rafael,

could you try to plot an array of float?

I can also "plot" a single variable but i am more interested in plotting the whole array.

Best

Daniele

desouza over 13 years ago in reply to Daniele Angelosante

TI__Guru**** 171254 points

Daniele,

I sure can (check the screen below)... I wonder if your variable name is not being properly de-referenced by the graph tool...

I also send attached my simple test code that generates all this info. Could you give it a shot?

Regards,

Rafael

3446793 over 13 years ago in reply to desouza

Intellectual 790 points

Hello,

Does the problem still occur in the latest version of CCS? Is it worth upgrading from version 5.1.1.00031 to avoid it?

Regards,

Adrian
