Plot Graph using CCS v5.2.1

Mukhtar Hussain

Intellectual 295 points

Hello Everyone,

I am using DSK6713 with CCS v5.2.1 on Windows 7. So far I have worked on CCS v3.1. Everything is going to be ok.

But I am facing a problem regarding to display a graph. According to Getting Started Guide CCS v5 at

http://processors.wiki.ti.com/index.php/CCSv5_Getting_Started_Guide

To add a graph, simply go to menu Tools --> Graph and select among one of the various display options.

Time-based graphs: Single Time and Dual Time
Frequency-based graphs: all FFT options

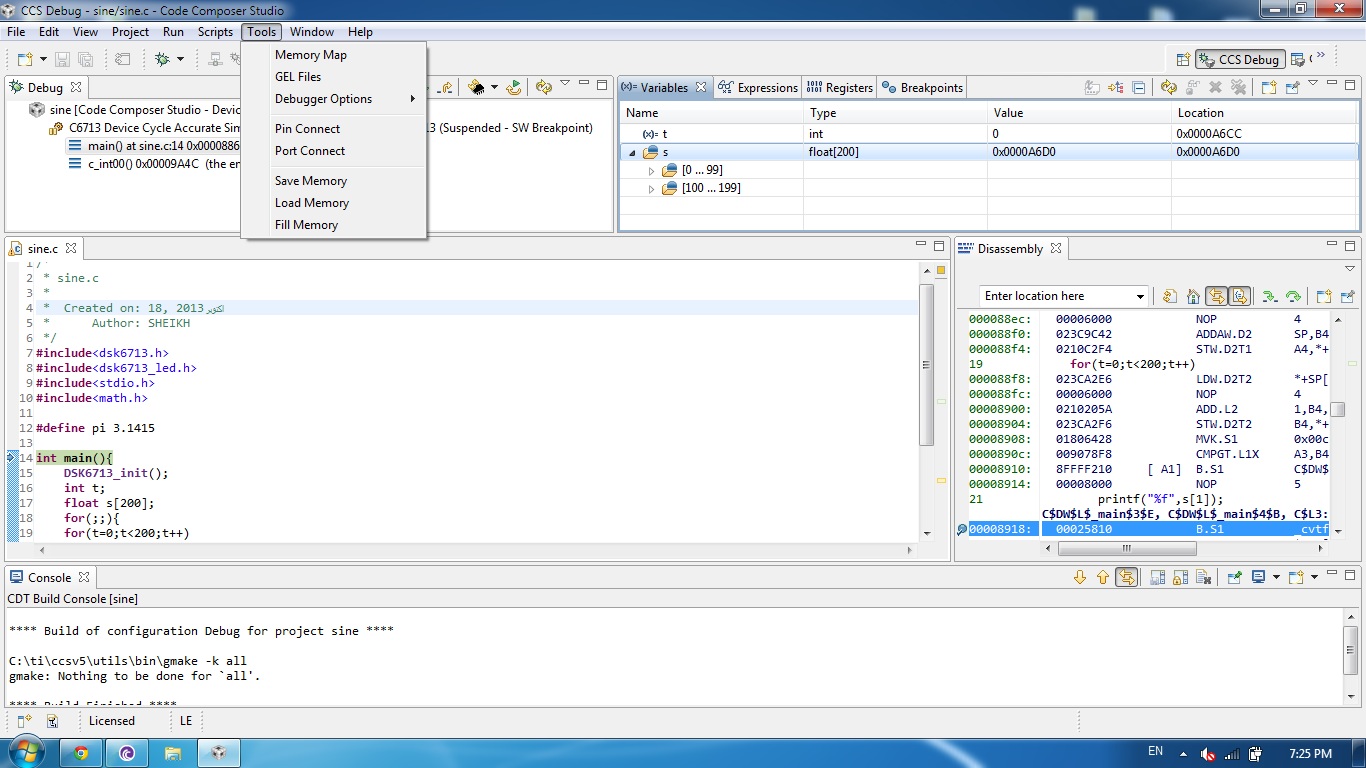

But I did not find out such in CCS v5.2.1 as shown below in figure

Kind Regards,

Mukhtar Hussain

over 11 years ago

0 Shankari G over 11 years ago

TI__Mastermind 43955 points

Hi Mukhtar,

Moving your post to CCS forum .

Regards,

Shankari

0 Mukhtar Hussain over 11 years ago in reply to Shankari G

Intellectual 295 points

Thanks Shankari,

Would any TI employee help me about this issue ??? I need it urgent...

Regards,

Mukhtar

0 desouza over 11 years ago in reply to Mukhtar Hussain

TI__Guru**** 169894 points

Mukhtar,

When menus and views disappear due to unknown reasons, usually the section General IDE of the page below is of great help:

http://processors.wiki.ti.com/index.php/Troubleshooting_CCSv5

Hope this helps,

Rafael

0 Mukhtar Hussain over 11 years ago in reply to desouza

Intellectual 295 points

Rafael,

I was unable to find the solution at the given link. I have re-installed the CCS 5.2.1 but the issue remain unresolved. Now I'm using CCS v5.3 it has image plotting option. I don't know if CCS v5.2.1 have built-in image plotting option or not. If it is not available then wikidocs.ti (Guide to use CCS v5.2.1) need to be revised.

Mukhtar
