CortexA8: Trouble Writing Memory Block at 0x10818 on Page 0 of Length 0x14c: (Error -2130 @ 0x10818)

Max Ekimov

Intellectual 480 points

Dear Support Team,

I try to debug via jtag simple "Hello world" app for linux but I'm getting error!

I use ccs 5.5 and TI Mistral board. I load linux from sd-card too.

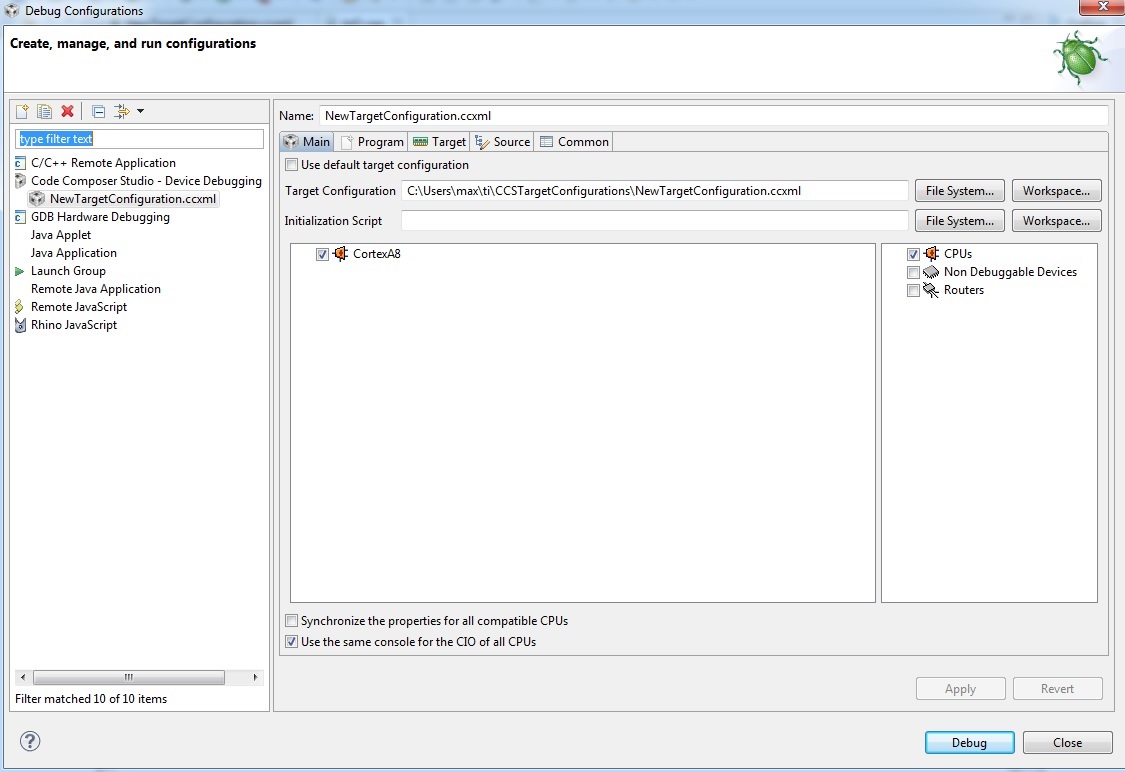

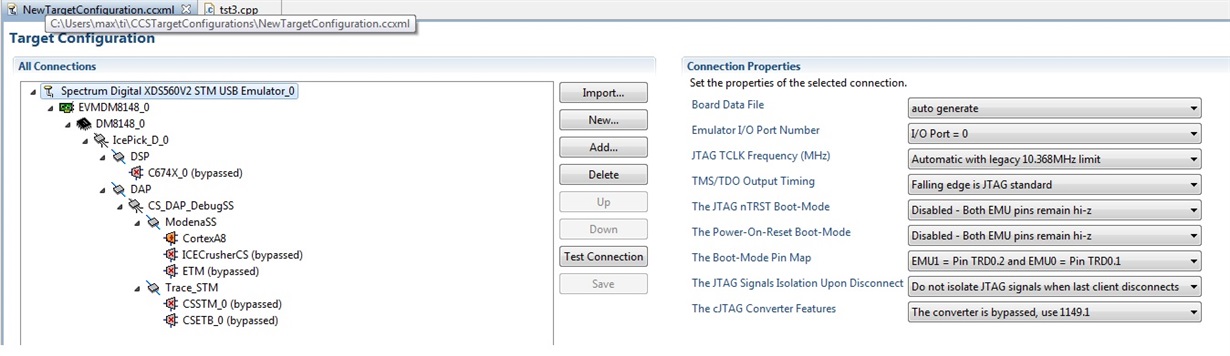

My setting is:

My full log is:

Spectrum Digital XDS560V2 STM USB Emulator_0/IcePick_D_0 : Target must be connected before loading program.
CortexA8: GEL Output:
Connecting Target...
CortexA8: Output:    **** DM8148 ALL ADPLL INIT IS In Progress .........
CortexA8: GEL Output:    A8 ADPLLJ CLKOUT value is = 600
CortexA8: GEL Output:    L3 ADPLLJ CLKOUT value is = 200
CortexA8: GEL Output:    DSP ADPLLJ CLKOUT value is = 500
CortexA8: GEL Output:    DSS ADPLLJ CLKOUT value is = 200
CortexA8: GEL Output:    HDVICP ADPLLJ CLKOUT value is = 266
CortexA8: GEL Output:    SGX ADPLLJ CLKOUT value is = 200
CortexA8: GEL Output:    USB ADPLLJ CLKOUT value is = 192
CortexA8: GEL Output:    VIDEO-0 ADPLLJ CLKOUT value is = 54
CortexA8: GEL Output:    VIDEO-1 ADPLLJ CLKOUT value is = 148
CortexA8: GEL Output:    VIDEO-2/HDMI ADPLLJ CLKOUT value is = 148
CortexA8: GEL Output:    AUDIO ADPLLJ CLKOUT value is = 200
CortexA8: Output:    **** DM8148 ALL ADPLL INIT IS Done **************
CortexA8: Output:    PRCM for C674x is in Progress, Please wait.....
CortexA8: GEL Output:    CP0...Done
CortexA8: GEL Output:    CP1...Done
CortexA8: GEL Output:    CP2...Done
CortexA8: GEL Output:    CP3...Done
CortexA8: GEL Output:    CP4...Done
CortexA8: GEL Output:    CP5...Done
CortexA8: GEL Output:    CP6...Done
CortexA8: Output:    User Can Connect to C674x
CortexA8: Output:    PRCM for C674x is DONE ******
CortexA8: Output:    PRCM for Control Module in Progress
CortexA8: Output:    PRCM for Control Module Done
CortexA8: Output:    PRCM for OCMCRAM0/1 Initialization in Progress
CortexA8: Output:    PRCM for OCMCRAM0 Initialization Done
CortexA8: GEL Output:    ***** Configuring ethernet Clk and Mux....*****
CortexA8: GEL Output:    ***** GMII pin mux and Clk initialized....*****
CortexA8: Output:    PRCM for SPI-0 CS-0 is in Progress, Please wait.....
CortexA8: GEL Output:    ***** SPI-0 CS-0 is initialized....*****
CortexA8: Output:    PRCM for SD/MMC0 are in Progress, Please wait.....
CortexA8: GEL Output:    ***** MMC0/SD is initialized....*****
CortexA8: GEL Output:    **** Configuring DDR PLL to 533 MHz.........
CortexA8: GEL Output:    DDR ADPLLJ CLKOUT value is = 533
CortexA8: Output:    **** DM8148 DDR3 EVM EMIF0 and EMIF1 configuration in progress.........
CortexA8: Output:    Busy reading back DMM registers Please wait ...
CortexA8: Output:    DMM register read successfully
CortexA8: Output:    **** DM8148 DDR3 EVM EMIF0 and EMIF1 configuration is DONE ****
CortexA8: GEL Output: Connecting Target... Done.

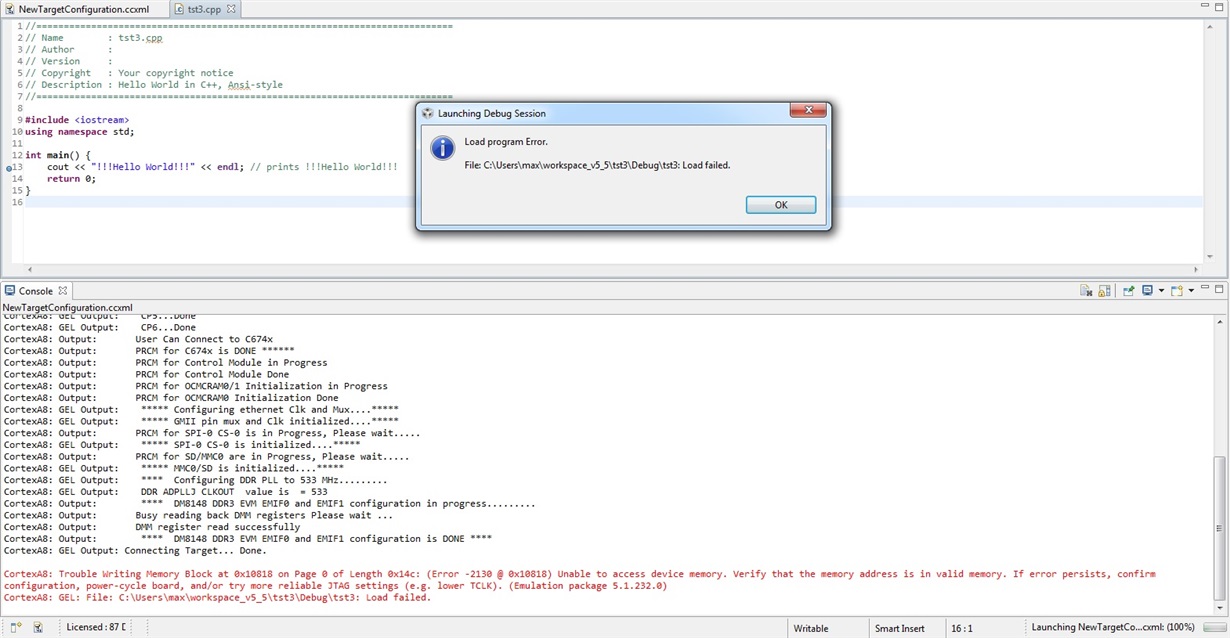

CortexA8: Trouble Writing Memory Block at 0x10818 on Page 0 of Length 0x14c: (Error -2130 @ 0x10818) Unable to access device memory. Verify that the memory address is in valid memory. If error persists, confirm configuration, power-cycle board, and/or try more reliable JTAG settings (e.g. lower TCLK). (Emulation package 5.1.232.0)
CortexA8: GEL: File: C:\Users\max\workspace_v5_5\tst3\Debug\tst3: Load failed.

Could you help me?

Thank you!

over 9 years ago

Ki over 9 years ago

TI__Guru**** 466391 points

Hello,

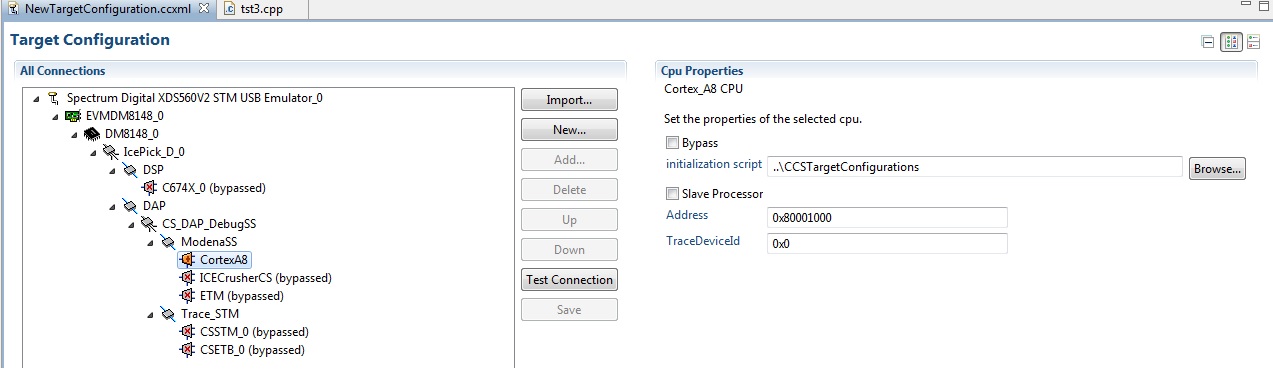

I see that you are using a startup GEL file with your target configuration. This is usually not recommended when trying to connect and debug a target running embedded linux. Can you remove it from your target configuration and try again?

Thanks
ki

Max Ekimov over 9 years ago in reply to Ki

Intellectual 480 points

Hi Ki,
I clear "initialization script" string. But when I run debug mode, debugger is not stopping on my breakpoint(line 14), although it is runned!

Thank you!

Max Ekimov over 9 years ago in reply to Max Ekimov

Intellectual 480 points

I've relaunched ccs and now I'm getting previous error:

Spectrum Digital XDS560V2 STM USB Emulator_0/IcePick_D_0 : Target must be connected before loading program.
Spectrum Digital XDS560V2 STM USB Emulator_0/CS_DAP_DebugSS : Target must be connected before loading program.
CortexA8: Trouble Writing Memory Block at 0x10818 on Page 0 of Length 0x14c: (Error -2130 @ 0x10818) Unable to access device memory. Verify that the memory address is in valid memory. If error persists, confirm configuration, power-cycle board, and/or try more reliable JTAG settings (e.g. lower TCLK). (Emulation package 5.1.232.0)
CortexA8: GEL: File: C:\Users\max\workspace_v5_5\tst3\Debug\tst3: Load failed.

Ki over 9 years ago in reply to Max Ekimov

TI__Guru**** 466391 points

In your first post, you mention that you are trying to load a "hello world" linux app. Just to confirm, that means that you want to run a linux app for the embedded linux OS running on the target, correct? If so, you do not want to do a CCS JTAG debug session, but a Eclipse Linux debug session.

Max Ekimov over 9 years ago in reply to Ki

Intellectual 480 points

Yes!
But my final goal is debug loaded module for linux. Now I just want to try to debug simple app via jtag, but I dont know how to do it right!
I can debug this app via gdb and eclipse, but I would like to use jtag and ccs!
Thank you!

Ki over 9 years ago in reply to Max Ekimov

TI__Guru**** 466391 points

If you wish to get familiar with simple CCS JTAG debugging and debug a simple CCS program without any Linux, then configure your target to NOT boot Linux from the SD card but (this is specific to your board, I am not familiar on how to do this) and simply start a project-less debug session and manually connect and load the program:
processors.wiki.ti.com/.../Debug_Handbook_for_CCS

Note that if you did not build your program with a linker command file, then you may have data verification errors (memory mismatch). What is a linker command file?
www.youtube.com/watch

Hope this helps
ki

Max Ekimov over 9 years ago in reply to Ki

Intellectual 480 points

Ok, could you give me advice how to debug loadable kernel module using jtag and ccs?

Ki over 9 years ago in reply to Max Ekimov

TI__Guru**** 466391 points

The below links provide some more information:
processors.wiki.ti.com/.../Linux_Debug_in_CCSv5_0
processors.wiki.ti.com/.../CCS_Modules_Library

Note that the latter link has a hands-on section for BeagleBone. Since you have a different target, you will not be able to do the hands-on part, but just going through the material is helpful in understanding how it all works.

Thanks
ki

Ki over 9 years ago in reply to Ki

TI__Guru**** 466391 points

Ki-Soo Lee said:
processors.wiki.ti.com/.../Linux_Debug_in_CCSv5_0

Please use this link instead of the one above:

http://processors.wiki.ti.com/index.php/Linux_Debug_in_CCSv5

Code Composer Studio™︎

Code Composer Studio forum

CortexA8: Trouble Writing Memory Block at 0x10818 on Page 0 of Length 0x14c: (Error -2130 @ 0x10818)
