Compiler/TMS320F28069: Creating ELF or any other object file for C2000 faimly

Devvrat Arya56

Part Number: TMS320F28069
Other Parts Discussed in Thread: TMS320F28379D, C2000WARE

Tool/software: TI C/C++ Compiler

Our project is developed on TMS320F28069 controller and the code will go under unit testing by using WinAMS tool. In order to extract function this tool requires an object file of whole project containing all functions. As per the information provided it supports ELF or any other object file produced by 3rd party compilers. But, This wiki page describes there is no ELF support for C2000 family, so how can I create an object file for my project?

I am using CCS 7.1, TI compiler v6.4.2

over 6 years ago

0 Tomasz Kocon over 6 years ago

Guru 26200 points

Hello Devvrat,

Devvrat Arya56 said:
As per the information provided it supports ELF or any other object file produced by 3rd party compilers.

if it supports any other object file ... than you can use COFF.

0 Devvrat Arya56 over 6 years ago in reply to Tomasz Kocon

Prodigy 110 points

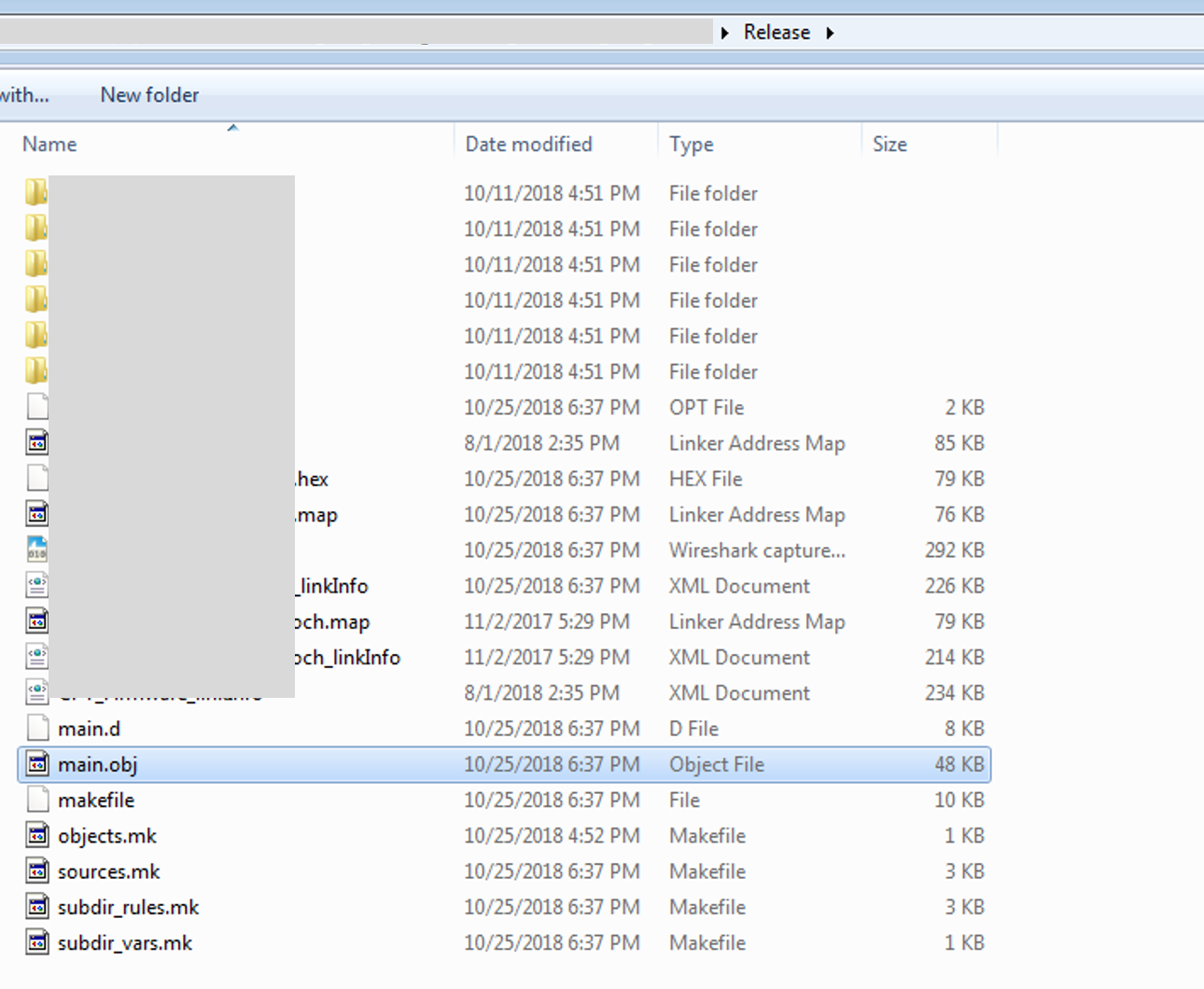

In release folder I did not find any .coff object file either.I have also check output option present in C2000 linker setting and there is no option for -coff file.

0 Tomasz Kocon over 6 years ago in reply to Devvrat Arya56

Guru 26200 points

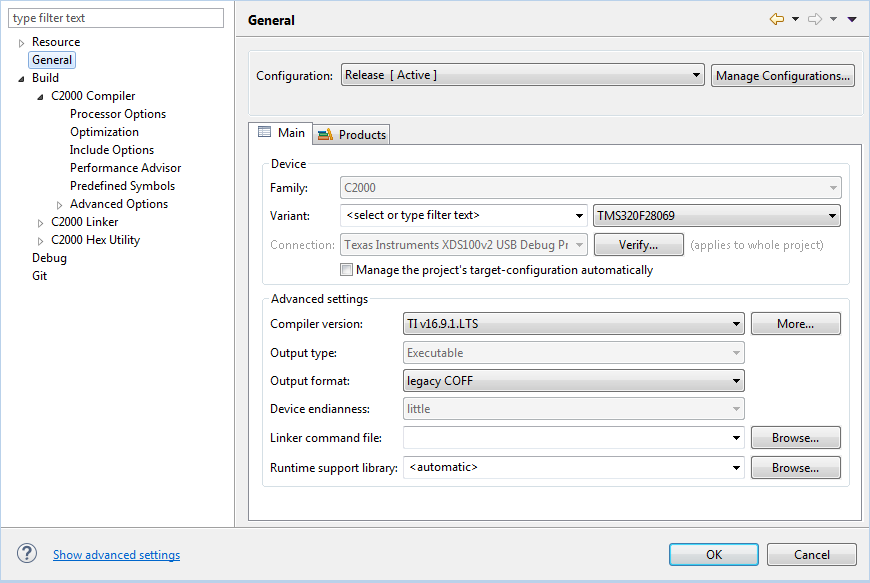

0 Devvrat Arya56 over 6 years ago in reply to Tomasz Kocon

Prodigy 110 points

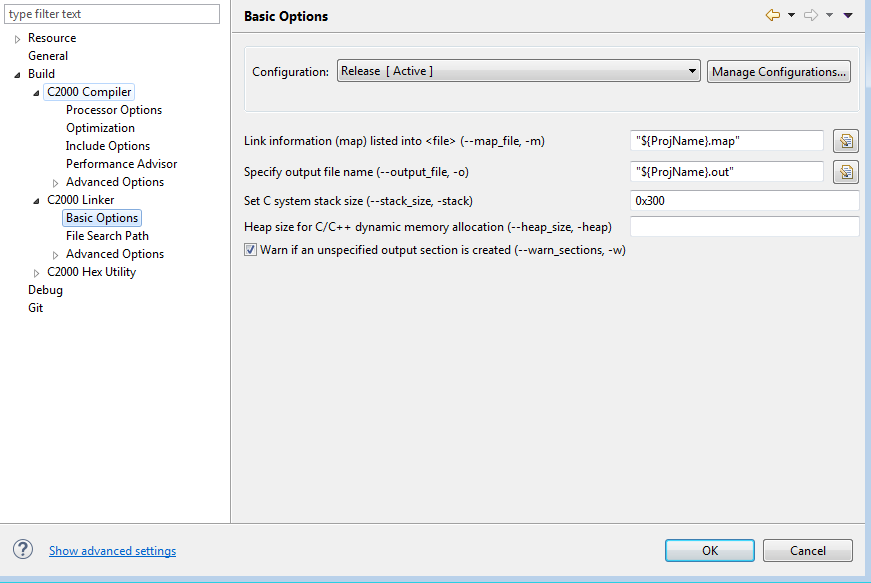

Yes my setting is same as above, where can I find .coff output file.

0 Tomasz Kocon over 6 years ago in reply to Devvrat Arya56

Guru 26200 points

COFF is an output file format, not a file extention.

0 Tomasz Kocon over 6 years ago in reply to Devvrat Arya56

Guru 26200 points

www.ti.com/.../spraao8.pdf

0 AartiG over 6 years ago

TI__Guru**** 173310 points

Devvrat,

A couple of points to add to Tom's replies.

- The current CCS tools for C2000 only support COFF, not ELF. ELF support will be coming in the future.
- COFF and ELF are different object file formats. To understand the basic differences take a look at this page. As a first step, you would need to confirm whether the testing tool you are using will accept COFF.
- To your question about the COFF output file, by default a COFF object file (with .out extension) is generated by CCS after successful build of a project. If the .out file is not created for your project, then there were likely some errors that caused the build to fail. Please take a closer look at the CCS build console to understand the errors. Then use the search capability of this forum and browse CCS documents available under this Resource Explorer link to help resolve the errors as many common build errors have been discussed in the forums as well as documented in the articles.

0 Chester Gillon over 6 years ago in reply to AartiG

Guru 92251 points

AartiG said:
The current CCS tools for C2000 only support COFF, not ELF. ELF support will be coming in the future.

The readme file for ti-cgt-c2000_18.9.0.STS describes support for ELF, and CCS 8.2.0.00007 allows the output format to be selected as "eabi (ELF)" when using that compiler version.

Using CCS 8.2.0.00007 and ti-cgt-c2000_18.9.0.STS was able to create an ELF program for a TMS320F28379D which could be debugged. What are the remaining changes before C2000 support for ELF is complete?

I did note that the ti-cgt-c2000_18.9.0.STS linker can report the following warning, but that the the referenced Wiki page does not currently exist:

warning #10440-D: creating output section ".init_array" without a SECTIONS specification. For additional information on this section, please see the 'C28x EABI Migration' guide at http://processors.wiki.ti.com/index.php/C28x_EABI:C28x_EABI_Migration#C6x_EABI_Sections

0 AartiG over 6 years ago in reply to Chester Gillon

TI__Guru**** 173310 points

Chester Gillon said:
The readme file for ti-cgt-c2000_18.9.0.STS describes support for ELF, and CCS 8.2.0.00007 allows the output format to be selected as "eabi (ELF)" when using that compiler version.

Chester, you are correct in that the 18.9.0.STS supports ELF and CCS 8.2 allows you to select and build for it. However, in practical terms it is of limited use for now because most existing C2000 software, libraries, examples in C2000Ware are not yet ported to EABI.

Chester Gillon said:
I did note that the ti-cgt-c2000_18.9.0.STS linker can report the following warning, but that the the referenced Wiki page does not currently exist:

Good catch. It is a typo - it should've been http://processors.wiki.ti.com/index.php/C2000_EABI_Migration#C28x_EABI_Sections.
I have filed a bug report to track this, the ID is CODEGEN-5488.
