Emulator Options for Logic PD Experimenter Board?

MikeH

Other Parts Discussed in Thread: OMAP-L138

Can someone point me to the compatible emulators for the 14 & 20-pin headers for the Logic PD Experimenter board with OMAP-L138 SOM? I would prefer the lowest complexity/cost version, but would like to communicate with both the C6748 and the ARM.

Thx,

MikeH

over 14 years ago

0 Ki over 14 years ago

TI__Guru**** 465151 points

Lowest cost emulator would be XDS100v2.

0 MikeH over 14 years ago in reply to Ki

Guru 15580 points

Ki,

The eval board has both 14 and 20 pin connections available. Which of the XDS100v2 units should I get?

Again, I want to make sure I can access both the C6748 and the ARM devices.

thx

MikeH

0 JohnS over 14 years ago in reply to MikeH

TI__Guru**** 162315 points

Mike,

Is the 20pin connector on the board a big one? i.e. bigger than the 14pin header. If so then it is likely the ARM Ltd 20pin header. The TI 20pin header is actually much smaller than the 14pin header.

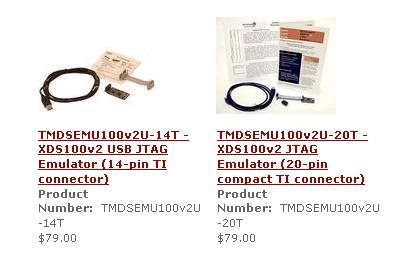

If that is the case I would order the TMDSEMU100V2U-14T emulator.

Regards,

John

0 MikeH over 14 years ago in reply to JohnS

Guru 15580 points

Thanks John. Yes, the 14-pin and 20-pin connectors on my board are both .100" posts, which means the TI-20pin emulator will not work. Thanks for pointing this out. I have orderd the 14-pin emulator.

MikeH
