CCS/TMS320C6747: There is no data in RTOS Analyzer views

user5982956

Part Number: TMS320C6747
Other Parts Discussed in Thread: OMAP-L137

Tool/software: Code Composer Studio

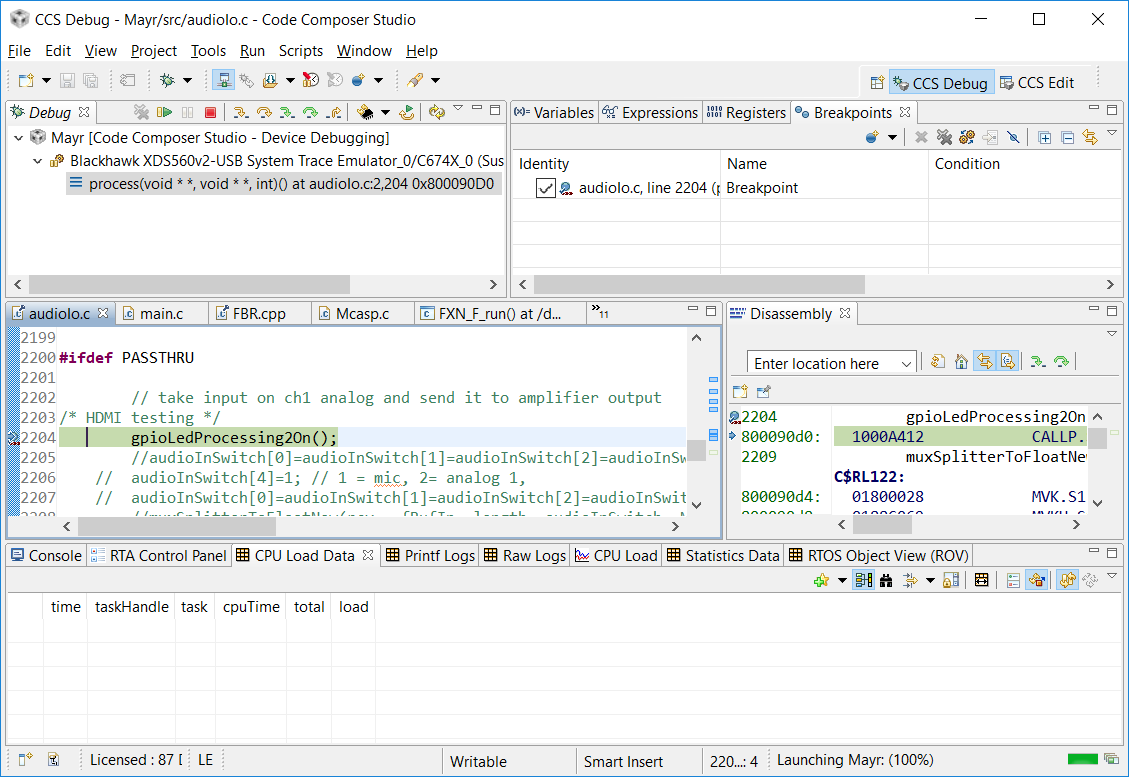

We are trying to evaluate the performance of the C6747 processor, but we cannot see anything in the CPU Load Data view in CCS V5.5, see below screenshots.

We had tried the newer version V7.4, even the view cannot be opened, the emulator we are using is "Blackhawk XDS560v2-USB System Trace Emulator", please help to check, thanks.

over 6 years ago

0 Ki over 6 years ago

TI__Guru**** 463561 points

Hello,

Mark Li said:
We had tried the newer version V7.4, even the view cannot be opened

Those views look like the ones for the Legacy RTA views. Are you using DSP/BIOS? If so, the legacy RTA tools for DSP/BIOS are not supported starting with CCS version 6 and greater.

http://processors.wiki.ti.com/index.php/DSP/BIOS_Support_in_CCS_Eclipse

Mark Li said:
but we cannot see anything in the CPU Load Data view in CCS V5.5, see below screenshots.

I will bring this thread to the attention of the BIOS experts. But do note that DSP/BIOS has been deprecated in support.

Thanks

0 user5982956 over 6 years ago in reply to Ki

Prodigy 100 points

Hi Ki,
Thanks for your reply.

Yes we are using DSP/BIOS 5.42, as we are doing product upgrade not a completely new product, we cannot afford introducing a new OS.

Let me clarify a little bit more, in v5.5 we used the RTA legacy mode, and it didn't show any data. In v7.4, the legacy mode is not supported as you mentioned, so we tryied using "Runtime Object View" but it cannot be opened.

0 ToddMullanix over 6 years ago in reply to user5982956

TI__Guru* 96960 points

Hi Mark,

Can you give more details? For example: do you get an error? It is blank? It does not connect?

Todd

0 user5982956 over 6 years ago in reply to ToddMullanix

Prodigy 100 points

Hi Todd,

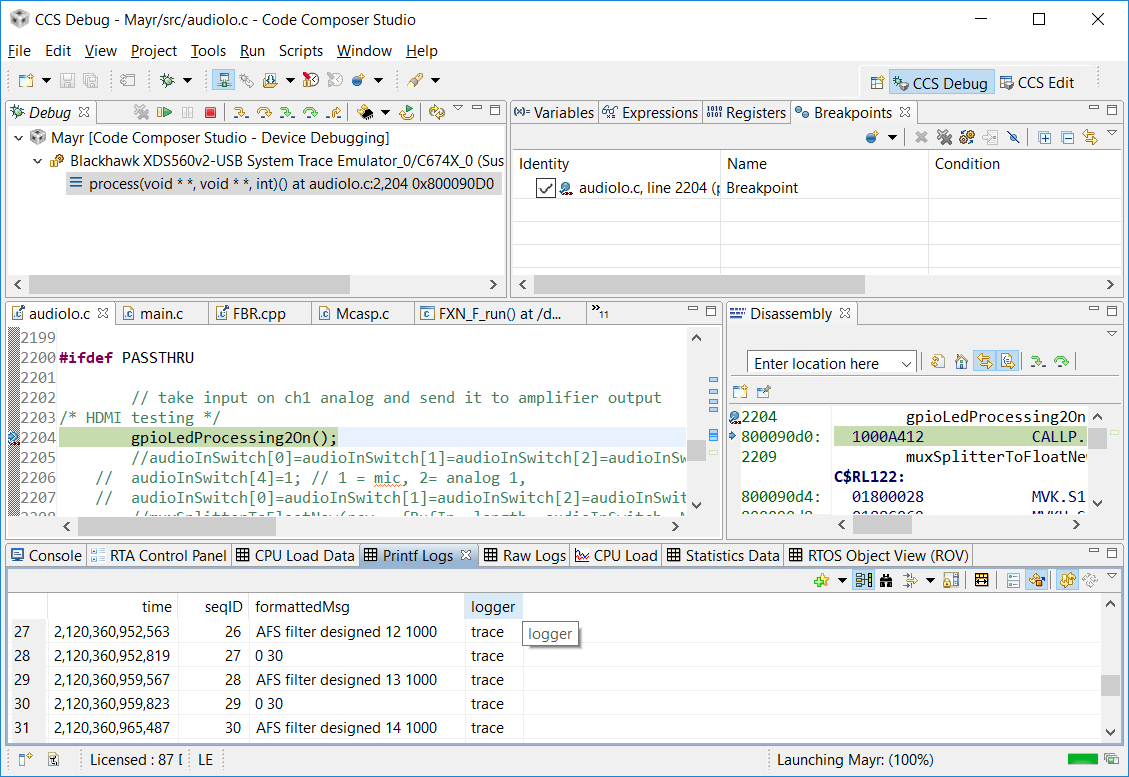

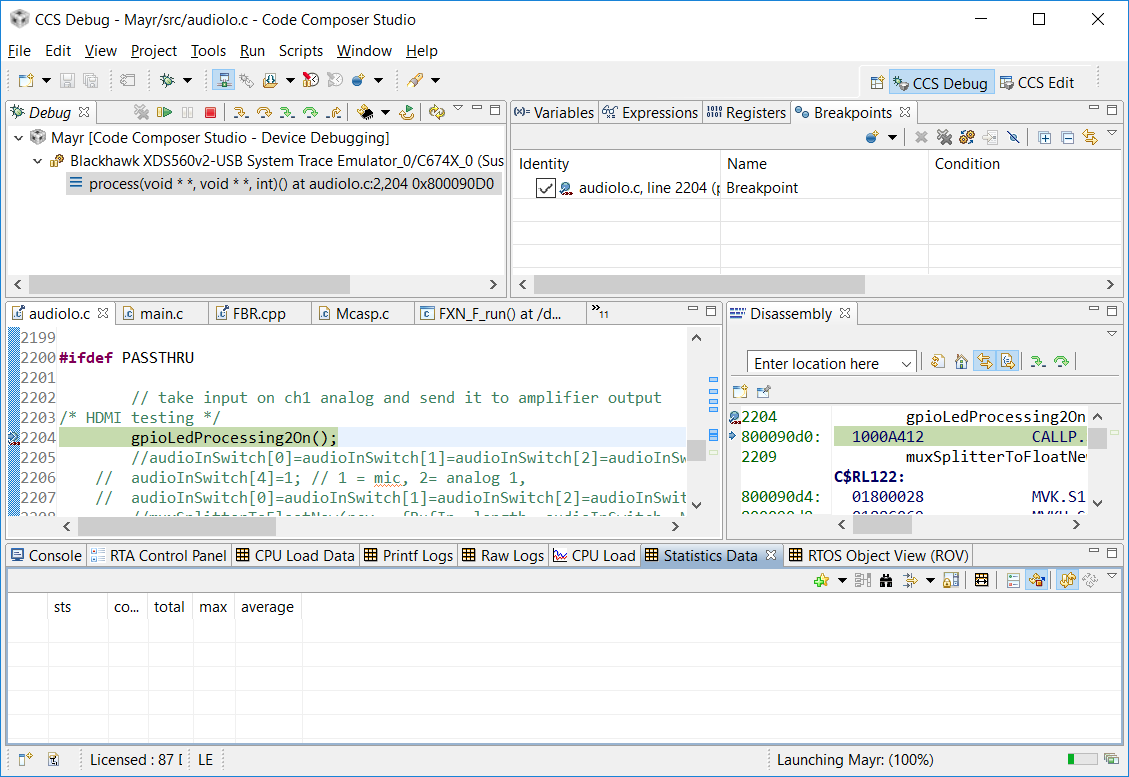

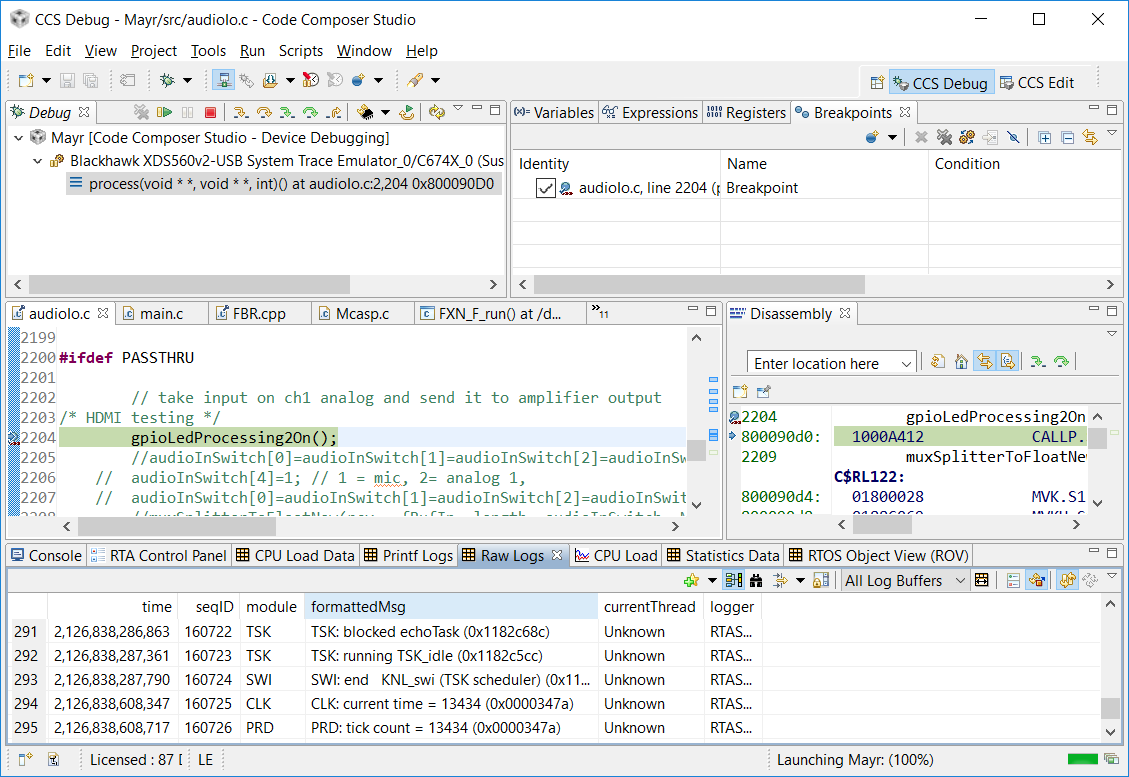

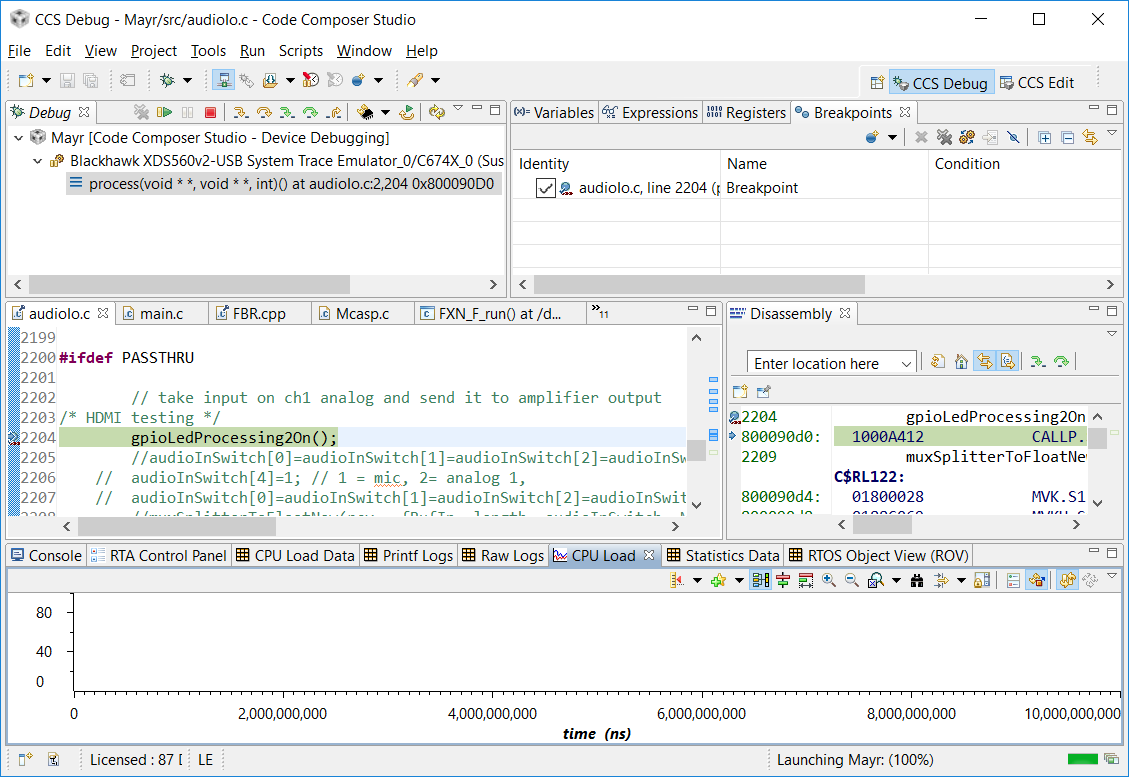

Please see the screen shot I posted before, views like "CPU Load"/"CPU Load Data"/"Statictics Data" are all empty, so I cannot get the cpu usage percentage, "Raw Logs" and "Printf Logs" are showing some messages but these messages don't help.

0 ToddMullanix over 6 years ago in reply to user5982956

TI__Guru* 96960 points

Hi Mark,

Sorry. I let this fall through the cracks.

Logging looks like it is working because I see the raw log records. Can you run the Stairstep example from DSP/BIOS? If you do and see the CPU Load, then something is wrong with you target code generation of the Load. If if does not show up, it is probably a CCS issue.

Todd

0 user5982956 over 6 years ago in reply to ToddMullanix

Prodigy 100 points

Hi Todd,

I have tried Stairstep and it didn't show the cpu load data either, will it be fixed if it is a CCS issue?

0 Ki over 6 years ago in reply to user5982956

TI__Guru**** 463561 points

Hi Mark,

I'll see if I can reproduce this on my environment. You are using Windows 10 it looks like.

Note that CCSv5.5 is not supported anymore so if there is a bug with CCS that requires a fix, there is little that we can do for that. The best I can offer is to see if I can find a workaround for you.

Thanks

0 user5982956 over 6 years ago in reply to Ki

Prodigy 100 points

Hi ki,

Yes, I'm using Windows 10.

Thank you!

Mark

0 Ki over 6 years ago in reply to user5982956

TI__Guru**** 463561 points

Hi Mark,
I tried this out on CCSv5.5 in Windows 10-64, using the C674x of my OMAP-L137 EVM. I used a simple BIOS example from the template and was able to get the CPU Load graph to display data. Can you try a simple BIOS example to see if you can get that to work?

Thanks
ki

0 Ki over 6 years ago in reply to Ki

TI__Guru**** 463561 points

Hello,
I haven’t heard back from you, hence this issue is being closed. If you wish to continue the discussion, please post a reply with an update below (or create a new thread).

Thanks,
ki
