CCS/AWR1843BOOST: AWR1843BOOST sense-on-power(sop) jumpers

user5740064

Part Number: AWR1843BOOST
Other Parts Discussed in Thread: AWR1843

Tool/software: Code Composer Studio

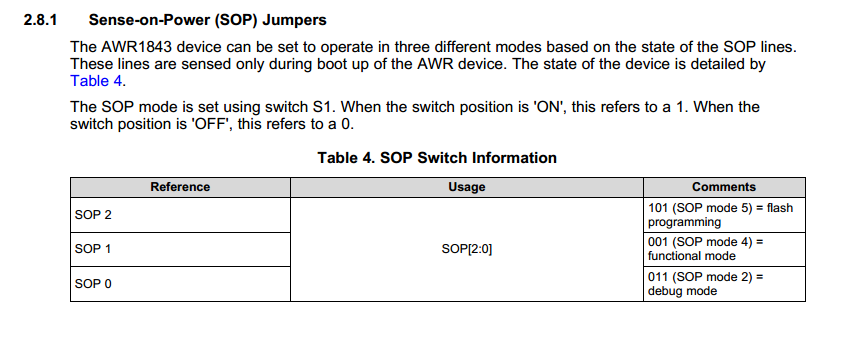

1.These lines are sensed only during boot up of the AWR device.Is it TM4CI29 chip programming detection or AWR1843 chip programming detection of pin state?Or is it triggered by a change in the state of the hardware connection?

2.Is there a source code detection pin reference program?

over 6 years ago

0 user5740064 over 6 years ago

Intellectual 500 points

Can I replace the TM4C129 chip with the TI XDS110 Debug Probe?If I can replace it.Can you give me a plan?thank you

0 Vivek Dham over 6 years ago in reply to user5740064

TI__Guru 58035 points

Hello,
The SOP pins are of the AWR1843 device. When the AWr1843 device bootup it senses the state of these pins to decide the bootup mode.
These need to be driven to the desired state (weak drive) external to the AWR1843 before the device is released out of reset.
This detection is done in the hardware, there is no software involved in this.

Regards,
Vivek

0 user5740064 over 6 years ago in reply to Vivek Dham

Intellectual 500 points

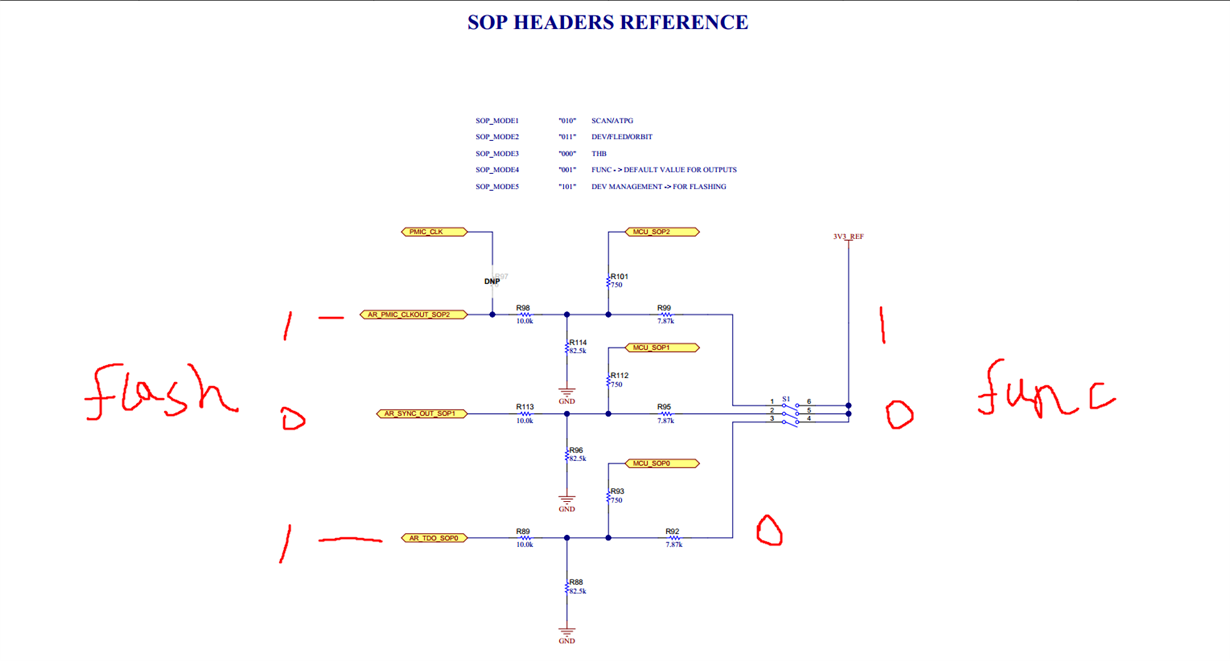

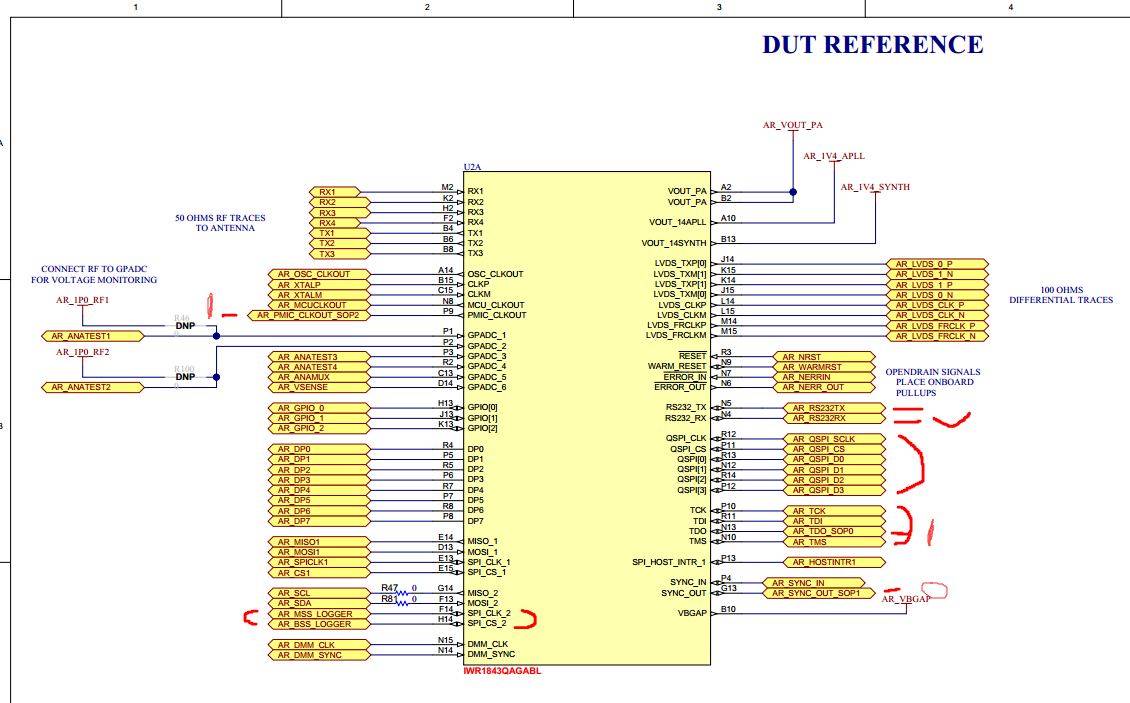

Thanks for your answer, there is no software design, but I see the connection on the schematic diagram is the pin connecting to AWR1843 chip, is there a conflict?

0 Vivek Dham over 6 years ago in reply to user5740064

TI__Guru 58035 points

Hello,

Am not sure I understood the query, what is the conflict you are referring to ?

Regards,

Vivek
