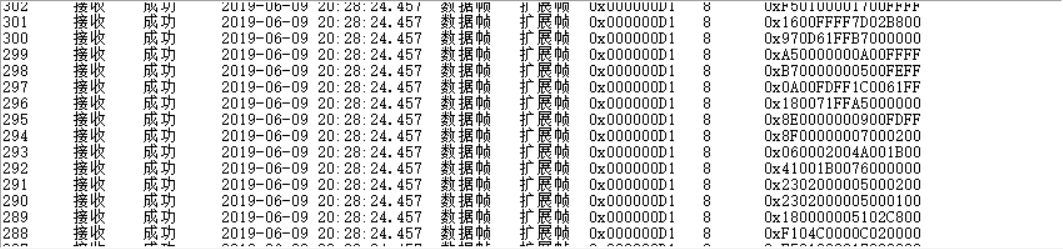

How to understand the data from the Can mouth? What is the connection between them? How to extract and view?

How do the D1 and D2 information reflect? What do C1, B1 and Identifier 08 represent?

over 7 years ago

0 user6010015 over 7 years ago

Intellectual 460 points

How can the data received by the can bus be parsed?

0 Cesar over 7 years ago in reply to user6010015

TI__Guru**** 153044 points

Hi,

The first step is to understand what data is being sent.

If you are running the Object Data Over CAN lab, then the data format is described in the mmWave SDK 2.0 demo documentation.

First step is to identify the magic number which marks the beginning of a new frame data.

thank you

Cesar

0 user6010015 over 7 years ago in reply to Cesar

Intellectual 460 points

How to find mmWave SDK 2.0 demo documentation?

I mean that the D1 or D2 information is all used?If we only want to get its distance and speed information, how should we extract which?

0 Raghunandan Kamath over 7 years ago in reply to user6010015

TI__Mastermind 22155 points

Hi ,

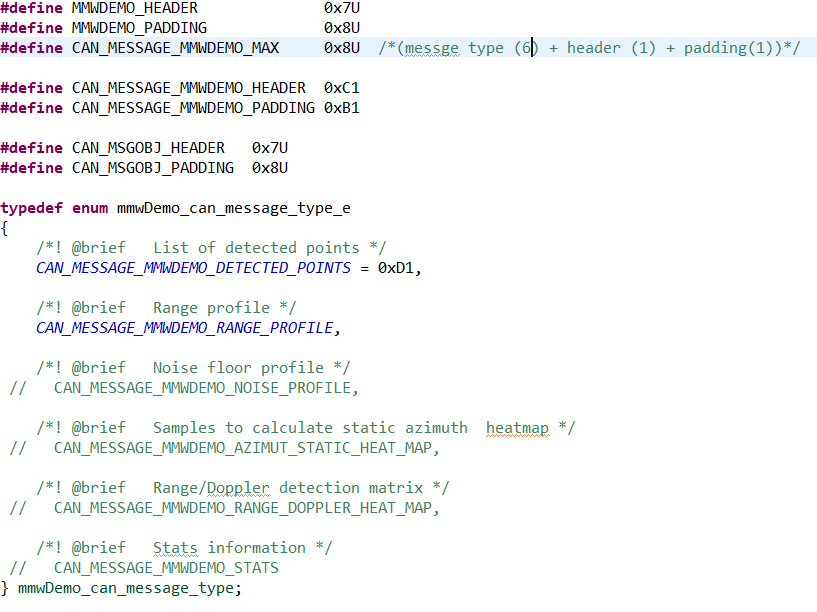

Please refer to the documentation of the MMWAVE-SDK 2.0 ($mmwave_sdk_02_01_00_04\packages\ti\demo\xwr16xx\mmw\docs\doxygen\html). This provides the details of the code. For the CAN messages please refer to the code in mss_main.c and "mmwDemo_can_message_type" defines the messages used to transmit the data over CAN.

Thanks,

Raghu

0 user6010015 over 7 years ago in reply to Raghunandan Kamath

Intellectual 460 points

Can the data received by the identifier D1 be directly calculated for distance and velocity information? Is D1 the information of all the targets that can be detected or the maximum target that is detected by CFAR?

0 Raghunandan Kamath over 7 years ago in reply to user6010015

TI__Mastermind 22155 points

Hi ,

Yes the data can be directly used for x, y data and then the velocity information.

-Raghu
