CCS: How to set graph to display the A/D conversion value in real time?

user5994389

Tool/software: Code Composer Studio

I use CCS9.0 for online debugging. How do I set the parameters in the single time graph to display my A/D conversion value in real time? The A/D sampling frequency is 100kHz, and the sampling object is a 50Hz sine wave.

over 6 years ago

0 AartiG over 6 years ago

TI__Guru**** 173310 points

Please have a look at this section in our User's Guide - it provides a good overview of the Graph tools and should help answer your question.

http://software-dl.ti.com/ccs/esd/documents/users_guide/ccs_debug-graphs.html

0 user5994389 over 6 years ago in reply to AartiG

Prodigy 20 points

In fact, I have seen this file. But the waveform I get when I set the sampling rate to 1kHz and 100kHz is the same, so the sampling rate here is not the same as my A/D sampling rate. The purpose of displaying the A/D conversion value in real time is still not achieved. Is there a way to increase the speed of graph updates?

0 176-671 over 6 years ago in reply to user5994389

Expert 1240 points

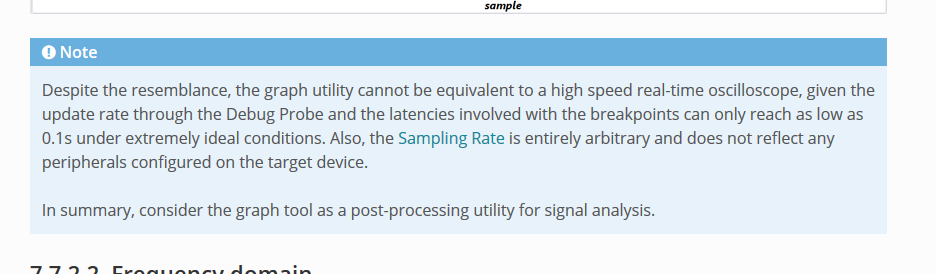

The doc above tells the whole story. Notes around topics mention the following:
