IN short range radar demo it just work in 2 dimension can i change it for 3-d and why it is in 2-d in demo ?

over 5 years ago

0 Jitendra Gupta over 5 years ago

TI__Guru 69960 points

Hi Adnan,

AWR1642BOOST EVM doesn't have antenna to look for elevation view compare to it has azimuth view. So it has 2-D view not fully 3-D view.

Whereas AWR1843BOOST uses one Tx antenna which adds to elevation view and MRR (medium range radar) demo can provide 3-D view. GUI doesn't have 3-D view but it uses two separate plots (x-y and y-z plot) to show 3-D equivalent view of the scene.

Regards,

Jitendra

0 Adnan Munir over 5 years ago in reply to Jitendra Gupta

Prodigy 150 points

R u sure about that? it does not have antenna for elevation but why in obstacle detection its showing 3d view ?

0 Jitendra Gupta over 5 years ago in reply to Adnan Munir

TI__Guru 69960 points

Hi Adnan,

In ODS it has different placement of one Rx antenna which provides the elevation info along with azimuth.

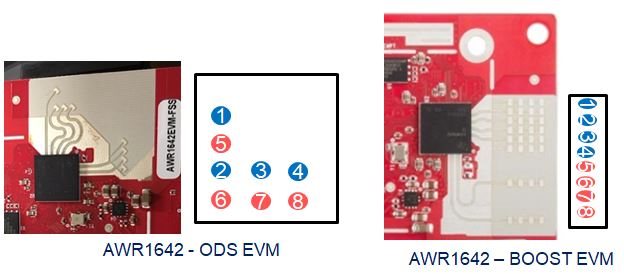

Below snapshot will provide you some insight for elevation vs azimuth for ODS vs BOOST antenna.

Regards,

Jitendra
