CCS/TMS570LS3137: Flash ECC bits are programming with 64 bytes offset

Lakshmikanth R S

Tool/software: Code Composer Studio

I have to test Flash ECC feature in TMS570LS3137.

I am generating Flash ECC bits using linker commands. ECC bits are generated in correct memory location in hex.

But when I compare flash ECC memory data in my generated hex with the data flashed into the controller ( I am reading controller data in memory window of CCS), I could observe following difference,

Data that is present in address 0xF0400000 in the hex dump is programmed to address 0xF0400040 in the controller (offset of 64 bytes). Please let us know the reason for the offset. Is this valid?

Screenshots are below,

ECC bits generated in Hex Dump:

0xF0400000 - A4DF55AA 5E76054E 2D564A89 A0498314 4BBC5621 E931490A 1E5C3A41 C2F1B75E 83

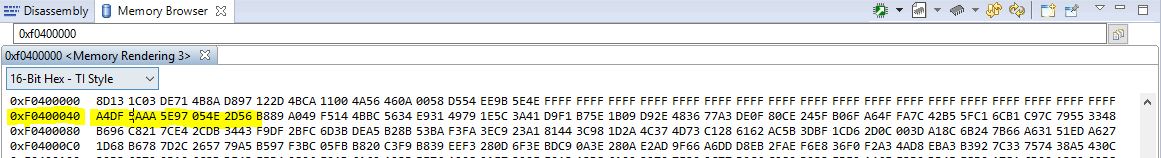

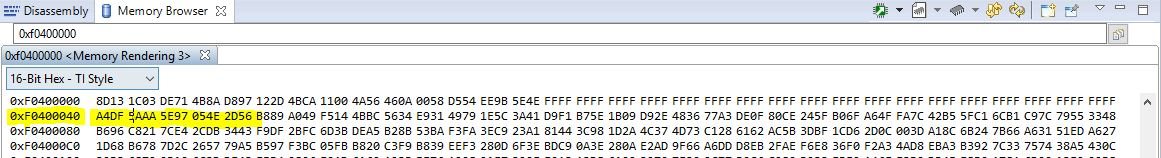

Data read from controller (Memory window of CCS):

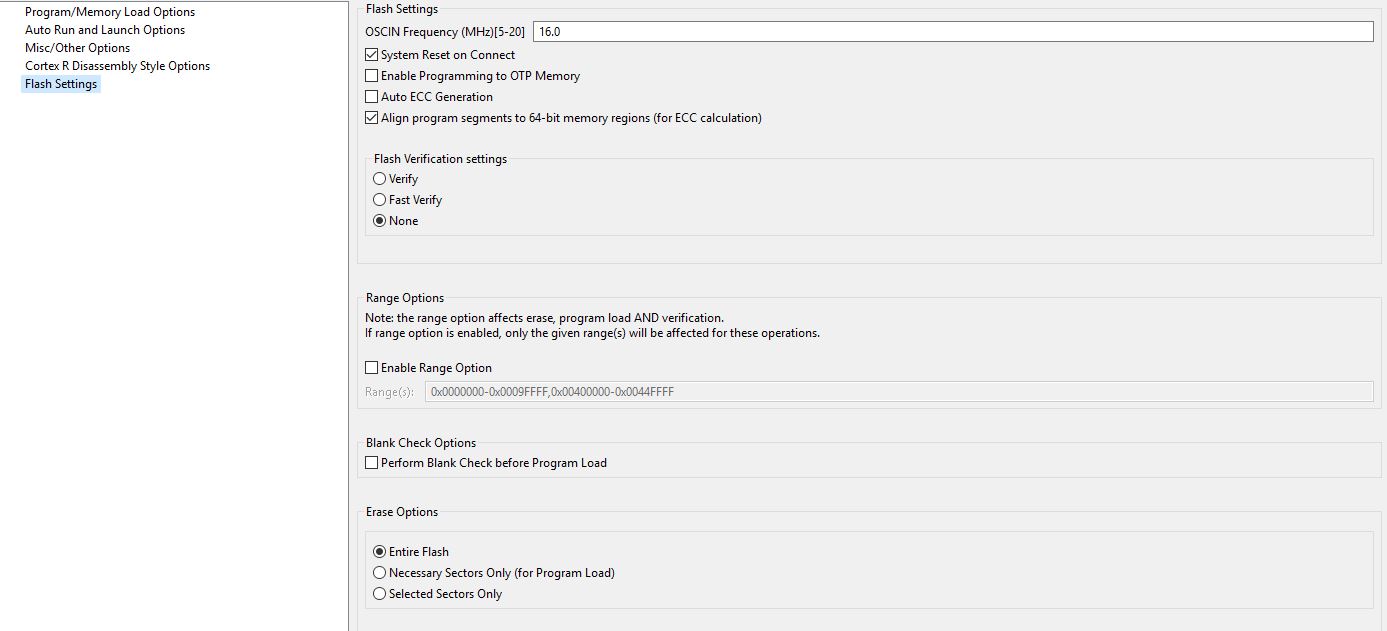

I am using CCS version: 7.3.0.00019 and following are the flash settings configured in CCS:

over 6 years ago

0 Miro over 6 years ago

TI__Mastermind 21425 points

Hello,

Due to the US holidays, responses may be delayed.

0 JohnS over 6 years ago in reply to Miro

TI__Guru**** 163035 points

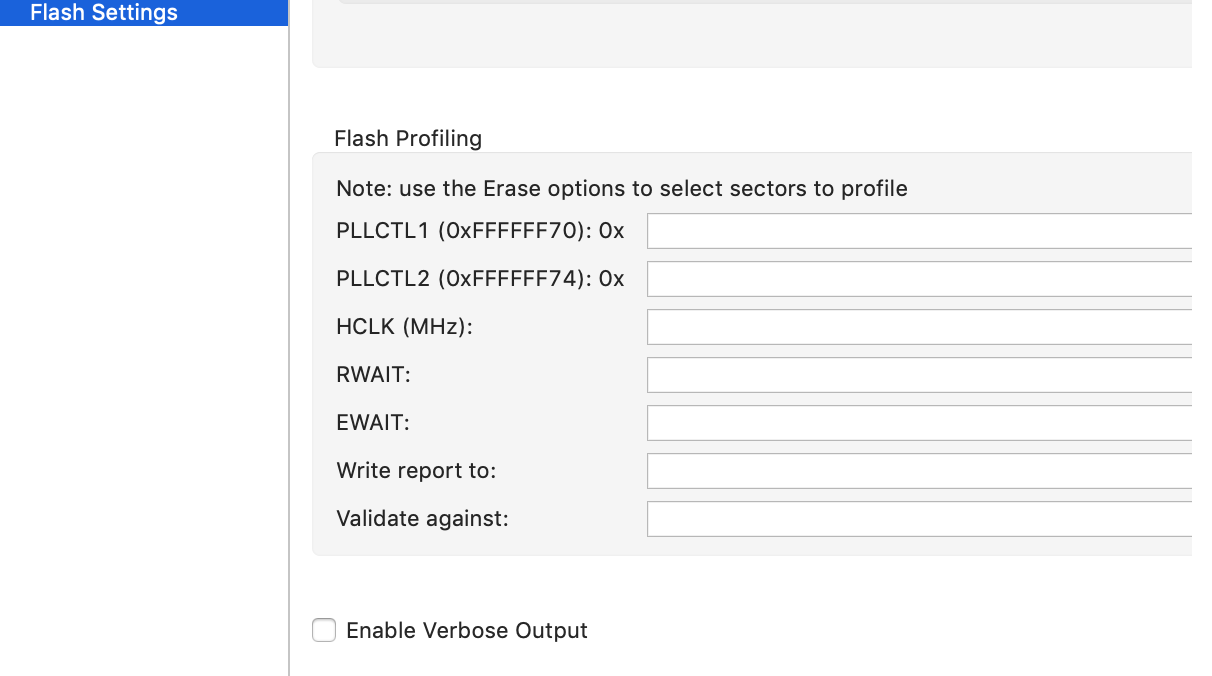

Could you try turning on Verbose output at the bottom of the flash settings.

And then capture the console output and attach to the thread. Would it also be possible to get the hex file?

Thanks,

John

0 JohnS over 6 years ago in reply to JohnS

TI__Guru**** 163035 points

Were you able to capture the console output?

0 JohnS over 6 years ago in reply to JohnS

TI__Guru**** 163035 points

I have not heard from you in a couple weeks. I am assuming that you have been able to get past this and I will close this thread. If you are still having this issue please feel free to reply or to start a new thread.

Regards,

John
