CCS: wavelength calibrate

user6308359

Tool/software: Code Composer Studio

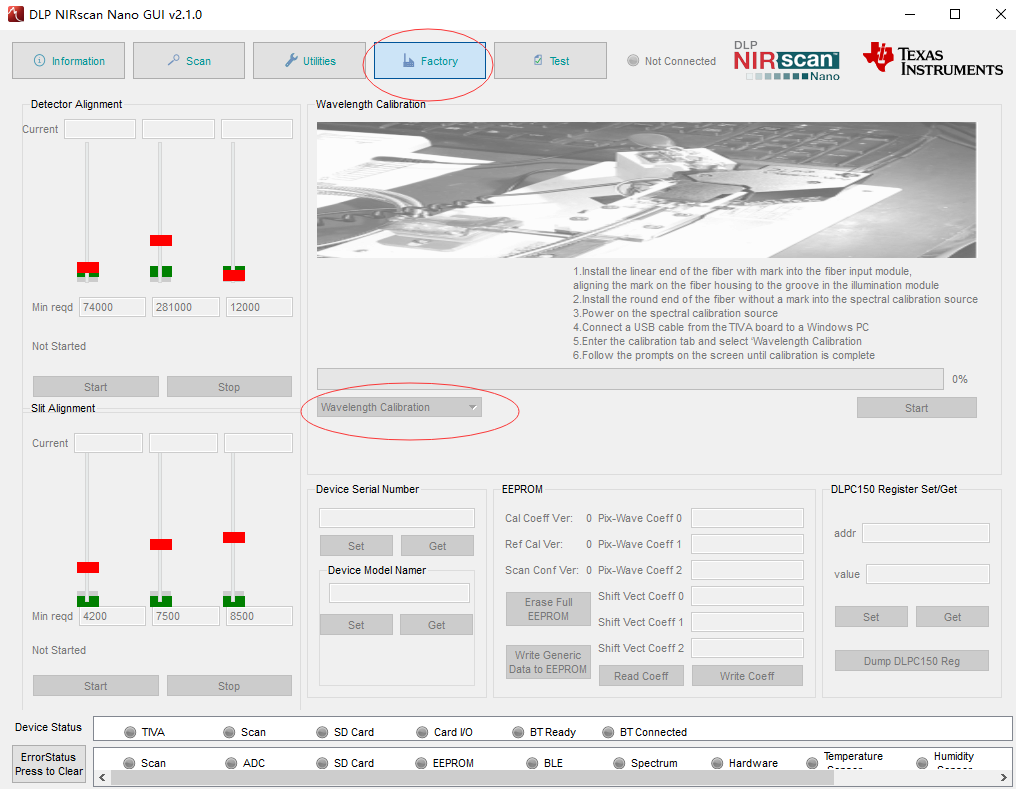

I want to upgrade the module and need to re-calibrate the wavelength. I follow the wavelength calibrate option in factortab. What do I need to prepare in the early stage? I have done experiments, but the result is that the error with the reference data is large, failed.

can you tell me the specific process? thank you!

over 5 years ago

0 Mayank Khandelwal over 5 years ago

TI__Genius 9971 points

Hi User,

Welcome to TI E2E forums!

Is your query related to DLP NIR Scan Nano EVM? or is it related to Code Composer Studio?

Regards,

Mayank

0 user6308359 over 5 years ago in reply to Mayank Khandelwal

Prodigy 70 points

yes

0 Hirak Biswas over 5 years ago in reply to user6308359

TI__Genius 10925 points

Hi User,

Kindly wait for some time, we will get the information and get back soon!

0 Vivek Thakur over 5 years ago in reply to Hirak Biswas

TI__Mastermind 23130 points

Hello,

Could you please reconfirm that you are askign about DLPNIR Nano EVM?

https://www.ti.com/tool/DLPNIRNANOEVM

Please also help me understand your question:

"I want to upgrade the module and need to re-calibrate the wavelength. I follow the wavelength calibrate option in factortab"

What software tool or GUI you are using ? which "factortab"?

regards,

Vivek

0 user6308359 over 5 years ago in reply to Vivek Thakur

Prodigy 70 points

I want to do wavelength calibration. Can I follow this procedure?

0 Vivek Thakur over 5 years ago in reply to user6308359

TI__Mastermind 23130 points

I will investigate and get back to you.

-------- Updated ----------

Thank you for your patience. It took me some time to get the required information.

The wavelength cohabitation is intended only for manufacturing. It is not designed to support wavelength calibration by user. This requires custom built equipment to do the wavelength calibration. The wavelength calibration requires mechanical alignment of all critical components like detector, slit. You need optical fiber and adapter to connect to the EVM. You will also need standard source of light /reference to calibrate.

This is beyond the scope of this engineering forum.

Thank you for your understanding.

regards,

Vivek
