CCS/LAUNCHCC3220MODASF: DRV866EVM with LAUNCHCC3220MODASF

Nehal Rohit

Prodigy 30 points

Part Number: LAUNCHCC3220MODASF

Tool/software: Code Composer Studio

Hello,

I am new in LAUNCHCC3220MODASF.

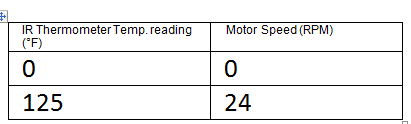

In my application Brush DC Motor shall run at “Motor Speed” specified for its temperature read by IR Thermometer.

I used this pwmled2 example .

LAUNCHCC3220MODASF Connection with DRV866EVM .

Connect a DC motor across OUT1 and GND.
Remove the jumper from the PMODE header.
Apply 12V power to J1 header.

after this connection motor run contentiously.

Please suggest me What changes will require in pwmled2 example to drive motor on different speed .

Thanks and Regards,

Nehal.

over 5 years ago

0 Jesu over 5 years ago

TI__Mastermind 22935 points

Hi Nehal,

Assuming the motor driver speed changing by PWM duty cycle you will have to change the duty cycle. Please refer to our PWM API documentation for more details.

https://dev.ti.com/tirex/explore/node?node=AIQLpsWAlAhNbRw7tZeAww__fc2e6sr__LATEST

Jesu

0 Nehal Rohit over 5 years ago in reply to Jesu

Prodigy 30 points

Hello Jesu

Thanks for your Reply.

I successfully changed speed of Motor.

I am also trying to detect the Motor load using VIPROPI.

according my requirement I need RIPROPI is 860 ohm

MD019E3(001)_Sch.PDF

I found R7 is 1.5K and R10(RIPROPI ) on DRV866EVM,but I am confused which register to changed ? R7 or R10?

Nehal

0 Jesu over 5 years ago in reply to Nehal Rohit

TI__Mastermind 22935 points

Hi Nehal,

Your thread reached me in the Simplelink Wi-Fi forum. Glad I could help you on your speed problem but I now have to move this thread to the motor driver team as they would better serve you on your last question.

Good luck!

Jesu
