Hello Louis,

Please archive and share your project. See instructions here: https://e2e.ti.com/support/tools/simulation-hardware-system-design-tools-group/sim-hw-system-design/f/simulation-hardware-system-design-tools-forum/969692/faq-pspice-for-ti-how-do-i-share-pspice-for-ti-projects?tisearch=e2e-sitesearch&keymatch=faq%252525253Atrue

Can you please try removing the voltage regulator? Does this resolve the problem?

Thank you,

Jackie

Here is a simple RC LP Filter design I was working with the troubleshoot the problem.

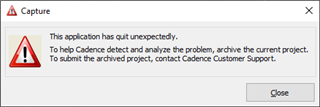

It doesn't matter what project I open (even examples) the program aborts whenever I try to create a new simulation or edit a previous one.

On another note my laptop has a problem when I create a new simulation the simulation opens up but is blank and I cannot make any selections.

The program does not crash but I cannot perform any simulations except by hitting the run button on a previous created simulation

Question:  How do I include my archived project as an attachment? Don't see the option below

LM

simple_rc-2021-10-05T16-38.zip

Hi Louis,

Thank you for sharing. I will have a look and let you know my findings.

-Jackie

Capture245074328.zip

Here is the crashdump log from my last simulation attempt

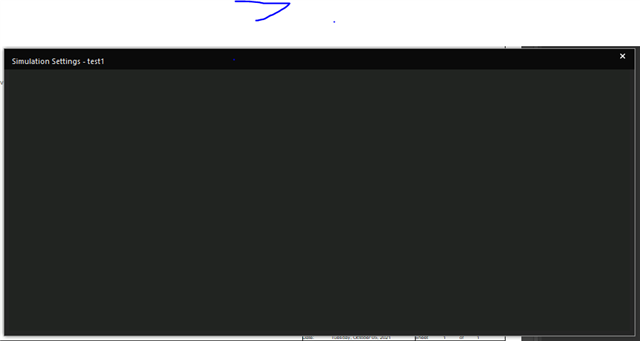

The following blank screen appears on my laptop when I try to edit or create a simulation. This does not crash lik my desktop but I am unable to run a simulation

Hi Louis,

Could you provide more information? You are seeing a similar issue while using a different computer, correct? Does this machine have the same version installed? Is this an issue for all designs, or only certain designs?

Did you also use the model from another vendor as described previously?

Thank you,

Jackie

Encrypted models used were from ST Micro for voltage regulators RHFL4913 and RHFL7913

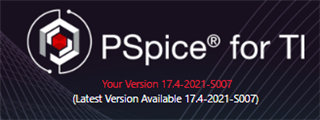

Both desktop and laptop have version 17.4.2021 S007 Windows SPB 64-Bit Edition

Problem on desktop is program crashes when I try to create a new or edit an existing simulation

Problem on laptop is simulation screen blank when I try to create a new or edit an existing simulation but does not crash

Problem exists on all designs even a simple RC low pass filter design

Thank you,

Louis

Hi Louis,

I'm not sure what is causing this problem. I'm going to reach out to the developer and see what they advise. Please confirm for me that both machines are using Windows 10.

Additionally, will you please capture the crash on your desktop machine? Please produce a crash and then share the files as described here: https://e2e.ti.com/support/tools/simulation-hardware-system-design-tools-group/sim-hw-system-design/f/simulation-hardware-system-design-tools-forum/969700/faq-pspice-for-ti-what-do-i-do-if-pspice-for-ti-has-crashed-or-quit-unexpectedly?tisearch=e2e-sitesearch&keymatch=faq%2525253Atrue

Thank you,

Jackie

rhfl4913a_eor_test-2021-10-11T19-18.zipCapture604133281.zip

The attached file are the project archive and Capture file after a crash

Windows 10 Enterprise N

Version 21H1

Thank you! I will let you know when Cadence responds.

Hi Louis,

I need some additional information. I am reaching out to you via this forum's private messaging feature. Please accept my request and see my message. We need to put you in touch with the software developer.

Thank you,

Jackie
