Viknesh Vadivel

Intellectual 330 points

Part Number: TIDA-01580

/resized-image/__size/394x187/__key/communityserver-discussions-components-files/234/3225.T1.PNG

/resized-image/__size/320x240/__key/communityserver-discussions-components-files/234/T2.PNG

I have successfully installed the TIDA-01580 and found it to work correctly for ECG monitoring. However, I have encountered a significant noise issue when monitoring the SPO2 waveform and HRM waveform. The waveform appears to be highly distorted by noise, making it challenging to obtain accurate readings.

I would greatly appreciate any guidance or advice on how to reduce the noise in the SPO2 waveform. Your expertise and insights would be invaluable in helping me address this issue effectively.

Thank you in advance for your assistance.

Best regards,

Viknesh Vadivel

over 2 years ago

0 Sanjay Pithadia over 2 years ago

TI__Genius 12961 points

Hello Viknesh, did you follow the same layout and schematic for the board design? Sometimes the assembly of the board can create issues with the measurement.

0 Viknesh Vadivel over 1 year ago in reply to Sanjay Pithadia

Intellectual 330 points

Dear Sanjay,

Thank you for your response. We followed the same layout and schematic, also followed industry standards for assembly.

We noticed While working with the TIDA software, advanced filter is disabled in the runtime engine(please refer the picture). We suspect that this might be the cause of the noise in the output. We kindly request your assistance in resolving this error.

Thank you for your support.

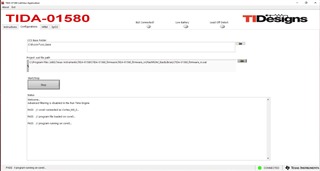

TIDA screenshot: /resized-image/__size/320x240/__key/communityserver-discussions-components-files/234/TIDA-software-screenshot.jpg

PCB front side board:/resized-image/__size/320x240/__key/communityserver-discussions-components-files/234/PCB-front.jpg

PCB back side board:/resized-image/__size/320x240/__key/communityserver-discussions-components-files/234/PCB-back.jpg

0 Sanjay Pithadia over 1 year ago in reply to Viknesh Vadivel

TI__Genius 12961 points

Dear Viknesh,

You are right, the advanced filters are disabled in the runtime engine. The screen shot is not very clear. Are you using runtime engine or full version of Labview? Can you please also share pictures of SpO2 board and the set-up you are testing with?

Regards,

Sanjay R. Pithadia

0 Viknesh Vadivel over 1 year ago in reply to Sanjay Pithadia

Intellectual 330 points

Dear Sanjay,

We using the runtime engine for our operations. We have attached a screenshot below for your reference.

Best regards,

Viknesh Vadivel

TIDA screenshot:https://drive.google.com/file/d/11Ga9s57OG7LfJWQzrllvb6MY4SMUF6EE/view?usp=drive_link

SPO2 IMAGE1: https://drive.google.com/file/d/1BrnHr-LIFgSb9-L4o-9-SISp34LVaa03/view?usp=drive_link

SPO2 IMAGE2:https://drive.google.com/file/d/1elLjM5ihxbysH0_4su6jbFQvByGkhrYh/view?usp=drive_link

SPO2 FULL ASSEMBLY:https://drive.google.com/file/d/10pEnwI35TJevBReIABxHlQtGNsqvXrN3/view?usp=drive_link

0 Sanjay Pithadia over 1 year ago in reply to Viknesh Vadivel

TI__Genius 12961 points

Dear Viknesh,

I need access to the google drive to view the files.

Regards,

Sanjay R. Pithadia

0 Viknesh Vadivel over 1 year ago in reply to Sanjay Pithadia

Intellectual 330 points

Sorry Sanjay,

Image folder: https://drive.google.com/drive/folders/1PoIHzIpIKmIeyMwWOfvuoprt_WA9JsHx?usp=sharing

0 Sanjay Pithadia over 1 year ago in reply to Viknesh Vadivel

TI__Genius 12961 points

Viknesh, sorry but I still can't access the drive - our IT system blocks the access. Is there any other way to share the images?

0 Viknesh Vadivel over 1 year ago

Intellectual 330 points

I have enclosed my screenshot within a compressed ZIP file for your reference

.TIDA Screenshot.zip

0 Sanjay Pithadia over 1 year ago in reply to Viknesh Vadivel

TI__Genius 12961 points

Thanks Viknesh for sharing the pictures. The connection looks okay. Did you try to measure the signals on the board? Do you see all LEDs being turned on?

I would be interested in knowing if the respective pins are generating correct signals for LEDs and capturing signals from PDs.
