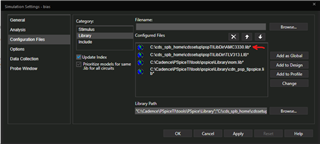

I've recently installed PSPICE-TI and am having an issue running a simulation with one of the parts form within the initial libraries provided (AMC3330-Q1). I have my library configured as:
I have the individual part in the config, as I had deleted (and was unable to re-add) the nom_pspti.lib as it wasn't in the same folder as the other included libraries. I found the individual part .lib file via its pointer within the property tab. Not sure if this requires a library update? Any help on what would be causing this to a file that the install came with would be a great help (this didn't work with the base config libraries included, that's why I deleted them in hopes to properly point to them).
I've provided the full error log below:
**** 03/11/25 14:30:11 **** PSpice 23.1.0 (30 January 2024) *** ID# 0 ********
** Profile: "SCHEMATIC1-bias" [ c:\users\ryan.blanchard\documents\projects&programs\internal_15kw\gd\ac_sense\ac_sense_ti_spice\ac_
**** CIRCUIT DESCRIPTION
******************************************************************************
** Creating circuit file "bias.cir"
** WARNING: THIS AUTOMATICALLY GENERATED FILE MAY BE OVERWRITTEN BY SUBSEQUENT SIMULATIONS
*Libraries:
* Profile Libraries :
* Local Libraries :
* From [PSPICE NETLIST] section of C:\cds_spb_home\cdssetup\OrCAD_PSpiceTIPSpice_Install\23.1.0\PSpice.ini file:
.lib "C:\cds_spb_home\cdssetup\pspTILibDir\AMC3330.lib"
.lib "C:\cds_spb_home\cdssetup\pspTILibDir\TLV313.LIB"
.lib "C:\Cadence\PSpiceTI\tools\pspice\Library\nom.lib"
.lib "C:\Cadence\PSpiceTI\tools\pspice\Library\cdn_psp_tipspice.lib"
*Analysis directives:
.OP
.OPTIONS ADVCONV
.OPTIONS FILEMODELSEARCH
.PROBE64 V(alias(*)) I(alias(*)) W(alias(*)) D(alias(*)) NOISE(alias(*))
.INC "..\SCHEMATIC1.net"
**** INCLUDING SCHEMATIC1.net ****
* source AC_INPUT_SENSING
V_V1 5VDC 0 5VDC
V_V2 3P3VDC 0 3.3VDC
V_V3 1P5VDC 0 1.5VDC
C_C1 N14901 N15114 1.0u TC=0,0
C_C2 N14901 N15114 0.1u TC=0,0
C_C3 N14901 N15114 1000p TC=0,0
C_C4 N14901 N14916 0.1u TC=0,0
C_C5 N14901 N14916 1000p TC=0,0
R_R1 VAC_A N15429 249k TC=0,0
R_R2 N15429 N15433 249k TC=0,0
R_R3 VAC_B N15513 249k TC=0,0
R_R4 N15513 N14901 249k TC=0,0
R_R5 N14901 N15433 1270 TC=0,0
C_C6 N14901 N15433 56p TC=0,0
V_V4 VAC_A 0
+SIN 0 118 400 0 0 0
V_V5 VAC_B 0
+SIN 0 118 400 0 0 120
C_C7 0 N16615 0.1u TC=0,0
C_C8 0 5VDC 0.1u TC=0,0
C_C9 0 5VDC 1000p TC=0,0
C_C10 N17032 N17023 56p TC=0,0
R_R6 N17023 N17059 10K TC=0,0
R_R7 N17032 N17044 10k TC=0,0
R_R8 N17262 3P3VDC 47.5K TC=0,0
R_R9 1P5VDC N17044 10k TC=0,0
C_C11 1P5VDC N17044 56p TC=0,0
C_C12 0 1P5VDC 0.1u TC=0,0
C_C13 0 1P5VDC 1000p TC=0,0
C_C14 3P3VDC 0 1.0u TC=0,0
C_C15 3P3VDC 0 0.1u TC=0,0
R_R10 N17059 N18290 10K TC=0,0
C_C16 N17059 N18290 56p TC=0,0
R_R11 V_OUT N18290 49.9 TC=0,0
R_R12 0 V_OUT 100k TC=0,0
C_C17 0 V_OUT 0.1u TC=0,0
X_U1 N16615 0 N17262 5VDC 0 N17023 N17032 N15114 N14901 N15114 N14916
+ N14901 N14901 N15433 N16615 AMC3330
X_U2 N17059 N17044 3P3VDC 0 N18290 TLV313
**** RESUMING bias.cir ****
.END
.SUBCKT HYSTCOMPG_THLRF inp inm out gnd
+ Params: Vthres=0 Vhyst=1 VoutH=5 VoutL=0 Rout=1 Tdlh=1N Tdhl=1N Trise=1N Tfall=1N
* Trise -> 90%*(VoutH-VoutL), Tfall -> 10%*(VoutH-VoutL)
.Param MinADel = 1n
.PARAM Tdellh = {MAX(Tdlh,MinADel)}
.PARAM Tdelhl = {MAX(Tdhl,MinADel)}
.Param Rdel = {IF ( ((Tdellh > 1E-15)|(Tdelhl > 1E-15)) & (Rout < 1), 1, Rout ) }
.Param Ro = {IF ( ((Trise > 1E-15)|(Tfall > 1E-15)) & (Rout < 1), 1, Rout ) }
.Param VoutM={(VoutH+VoutL)/2}
.Param Tdmin= 1p
*.Param Cdel={Sqrt((Tdelhl+Tdmin)*(Tdellh+Tdmin))/(0.693*(Rdel+1u))}
.Param Cdel={Sqrt((Tdelhl+Tdmin)*(Tdellh+Tdmin))/(4.6*(Rdel+1u))}
.Param Gdlh={Sqrt((Tdelhl+Tdmin)/(Tdellh+Tdmin))/Rdel}
.Param Gdhl={(Tdellh+Tdmin)/(Tdelhl+Tdmin)*Gdlh}
.Param Cout={Sqrt(Tfall*Trise)/(2.287*(Ro+1u))}
.Param Gr={Sqrt(Tfall/(Trise+Tdmin))/Ro}
.Param Gf={(Trise+Tdmin)/Tfall*Gr}
.Param VthH={Vthres+Vhyst}
.Param VthL={Vthres-Vhyst}
·
$
ERROR(ORPSIM-16364): Invalid device in subcircuit
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.VHYST> not a subcircuit param
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.VTHRES> not a subcircuit param
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.TFALL> not a subcircuit param
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.TRISE> not a subcircuit param
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.TDHL> not a subcircuit param
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.TDLH> not a subcircuit param
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.ROUT> not a subcircuit param
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.VOUTL> not a subcircuit param
WARNING(ORPSIM-15256): <X_U1.XAMP.XU1.VOUTH> not a subcircuit param
**** EXPANSION OF SUBCIRCUIT X_U1.XAMP.XU1 ****
.Param MinADel 1n
.PARAM Tdellh {MAX(Tdlh,MinADel)}
.PARAM Tdelhl {MAX(Tdhl,MinADel)}
.Param Rdel {IF ( ((Tdellh > 1E-15)|(Tdelhl > 1E-15)) & (Rout< 1), 1, Rout
+ ) }
.Param Ro {IF ( ((Trise > 1E-15)|(Tfall > 1E-15)) & (Rout <1), 1, Rout
+ ) }
.Param VoutM {(VoutH+VoutL)/2}
.Param Tdmin 1p
.Param Cdel {Sqrt((Tdelhl+Tdmin)*(Tdellh+Tdmin))/(4.6*(Rdel+1u))}
.Param Gdlh {Sqrt((Tdelhl+Tdmin)/(Tdellh+Tdmin))/Rdel}
.Param Gdhl {(Tdellh+Tdmin)/(Tdelhl+Tdmin)*Gdlh}
.Param Cout {Sqrt(Tfall*Trise)/(2.287*(Ro+1u))}
.Param Gr {Sqrt(Tfall/(Trise+Tdmin))/Ro}
.Param Gf {(Trise+Tdmin)/Tfall*Gr}
.Param VthH {Vthres+Vhyst}
.Param VthL {Vthres-Vhyst}
X_U1.XAMP.XU1.·
-$
ERROR(ORPSIM-16316): Invalid device
