TIDA-010054: DESIGN

NETHRAA KUMAR

Prodigy 160 points

Part Number: TIDA-010054

Tool/software:

Hi,

How magnetizing inductance is calculated

0 Andreas Lechner 6 months ago

TI__Expert 4400 points

Hi,

We did not design magnetizing inductance to a specific value, since the leakage inductance + lead inductor is the key inductance which defines power transfer.
The transformer was designed in collaboration with Payton. For more detail on the transformer design please reach out to Payton directly.

Best regards,

Andreas

0 NETHRAA KUMAR 6 months ago in reply to Andreas Lechner

Prodigy 160 points

hi,

how to design lead inductor.

0 Andreas Lechner 6 months ago in reply to NETHRAA KUMAR

TI__Expert 4400 points

Hi,

Please refer to the design guide chapter 2.3.4.1.

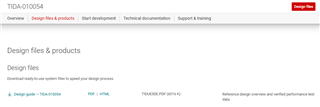

The design guide can be downloaded here: https://www.ti.com/tool/TIDA-010054#design-products

Best regards,

Andreas

0 NETHRAA KUMAR 6 months ago in reply to Andreas Lechner

Prodigy 160 points

Hi,

Please refer to the design guide chapter 2.3.4.1

In this selection only leakage inductance is calculated. how to calculate lead inductance??
