PMP41115: Middle layers missing in job files

Radko Stoyanov

Part Number: PMP41115

Tool/software:

Dear TI Tech Support,

I would like to evaluate the design of the USB C charger PMP41115.

However, the middle layers (Signal 1 and 2) are missing in the job files.

Could you please send me the full job files of this reference design.

Best regards,

Radko

+1 Max Wang1 4 months ago

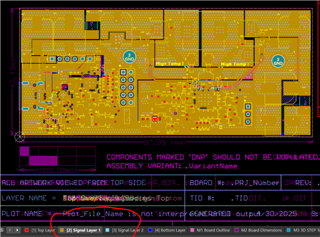

Hi, please visit PMP41115 on TI.com, and choose CAD/CAE symbol, we can see signal 1 and 2 are there, let me know if you have some issue on this

0 Radko Stoyanov 4 months ago in reply to Max Wang1

Hi,

Thanks for the quick response. This resolved my issue.

I was referring to the gerber files. You can still update these when possible.

Thanks again!
