I export my Webench design in Altium format. When do fie->open-> *.schdoc Altium crashes

"Access violation at address 34656B02 in module 'AdvSch.dll'. Read of address 7C343D45 at 34656B02.

Exception Occurred In
OpenObject"

Any suggestions please?

Thanks

BTW, the readme directs you to open the non-existent pcbDoc file.

over 11 years ago

0 Gerold Dhanabalan - Online Design Tools over 11 years ago

TI__Genius 14455 points

Hi Nick,

Can you please let us know the part number that you are facing the issue with?

Thanks,

Gerold

0 Cscott over 11 years ago in reply to Gerold Dhanabalan - Online Design Tools

Intellectual 310 points

Hi Gerold,

Sure. It's a TPS57060-Q1.

Nick

0 Gerold Dhanabalan - Online Design Tools over 11 years ago in reply to Cscott

TI__Genius 14455 points

Hi Nick,

I was able to export it to Altium. Please see attachment. What version of Altium are you using?

Regards,

Gerold

0 Cscott over 11 years ago in reply to Gerold Dhanabalan - Online Design Tools

Intellectual 310 points

HI Gerold,

It's 14.2.5. Can you please try the attached and see if it works for you. This is the export I did from Webench.

Thanks

webench_schematic_exchange_design_3886498_2_Altium.zip

0 Gerold Dhanabalan - Online Design Tools over 11 years ago in reply to Cscott

TI__Genius 14455 points

Hi Nick,

I checked that the zip file had two folders 2014-08-11-05-05-42 and 2014-08-11-05-05-43. The -42 folder had a SchDoc and I could open it in Altium version 12. The -43 folder did not have a Schdoc

Regards,

Gerold

0 Gerold Dhanabalan - Online Design Tools over 11 years ago in reply to Gerold Dhanabalan - Online Design Tools

TI__Genius 14455 points

Hi Nick,

We checked Altium version 14 and it opens in it as well. Can you please ensure that you are double clicking on the Schdoc and not the PRJSCR or PRJDOC file?

Thanks,

Gerold

0 Cscott over 11 years ago in reply to Gerold Dhanabalan - Online Design Tools

Intellectual 310 points

Yes, I'm attempting to open the schdoc.

You are correct in that -43 does not have a schdoc - that is exactly what came from the export. Is that not what you expected?

I'll try a re-install my end even though I don't have any issues with anything else but it won't happen few a few days due to networking issue here.

Thanks again. I'll update after re-install.

0 Gerold Dhanabalan - Online Design Tools over 11 years ago in reply to Cscott

TI__Genius 14455 points

Hi Nick,

Did you try the -42 Schdoc? Please send us the exact input conditions for which you got -43.

Regards,

Gerold

0 Cscott over 11 years ago in reply to Gerold Dhanabalan - Online Design Tools

Intellectual 310 points

HI Gerold,

Only -42 has a schDOc so yes, I did try it.

Input conditions: I'll hare the project with you.It should be with you shortly.

Thanks,

Nick

0 Cscott over 11 years ago in reply to Gerold Dhanabalan - Online Design Tools

Intellectual 310 points

Hi Gerold,

Ran into some problems:

(1) I can't share the design without exposing my email address on a public forum

(2) I opened the saved design and found things were not as I have saved. I reset the inputs and redid the export. There was only a single folder this time but still causes the crash .

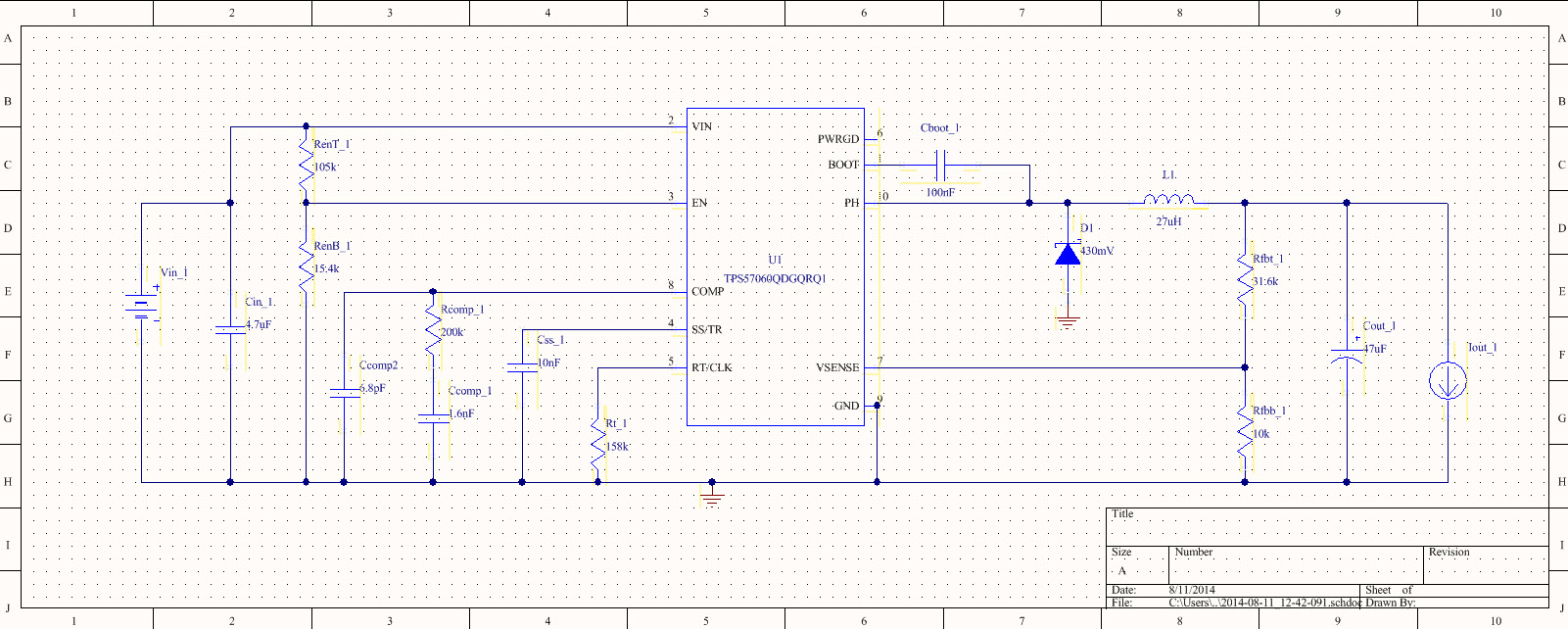

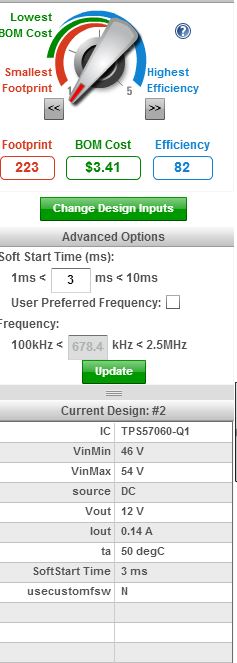

(3) Specific inputs are

In addition, I selected a Coilcraft LPS6225-334MRB for the inductor.

Thanks - it's appreciated!

Nick

0 Cscott over 11 years ago in reply to Gerold Dhanabalan - Online Design Tools

Intellectual 310 points

Hi Gerold,

I completely removed Altium, re-installed and it's now working.

Thanks for taking the time to look into this.

0 Gerold Dhanabalan - Online Design Tools over 11 years ago in reply to Cscott

TI__Genius 14455 points

Hi Nick,

We are glad to support you. Please let us know if you have other questions on WEBENCH.

Regards,

Gerold
