About LM5576MH

Jungsik Kim

Prodigy 80 points

Other Parts Discussed in Thread: LM5576

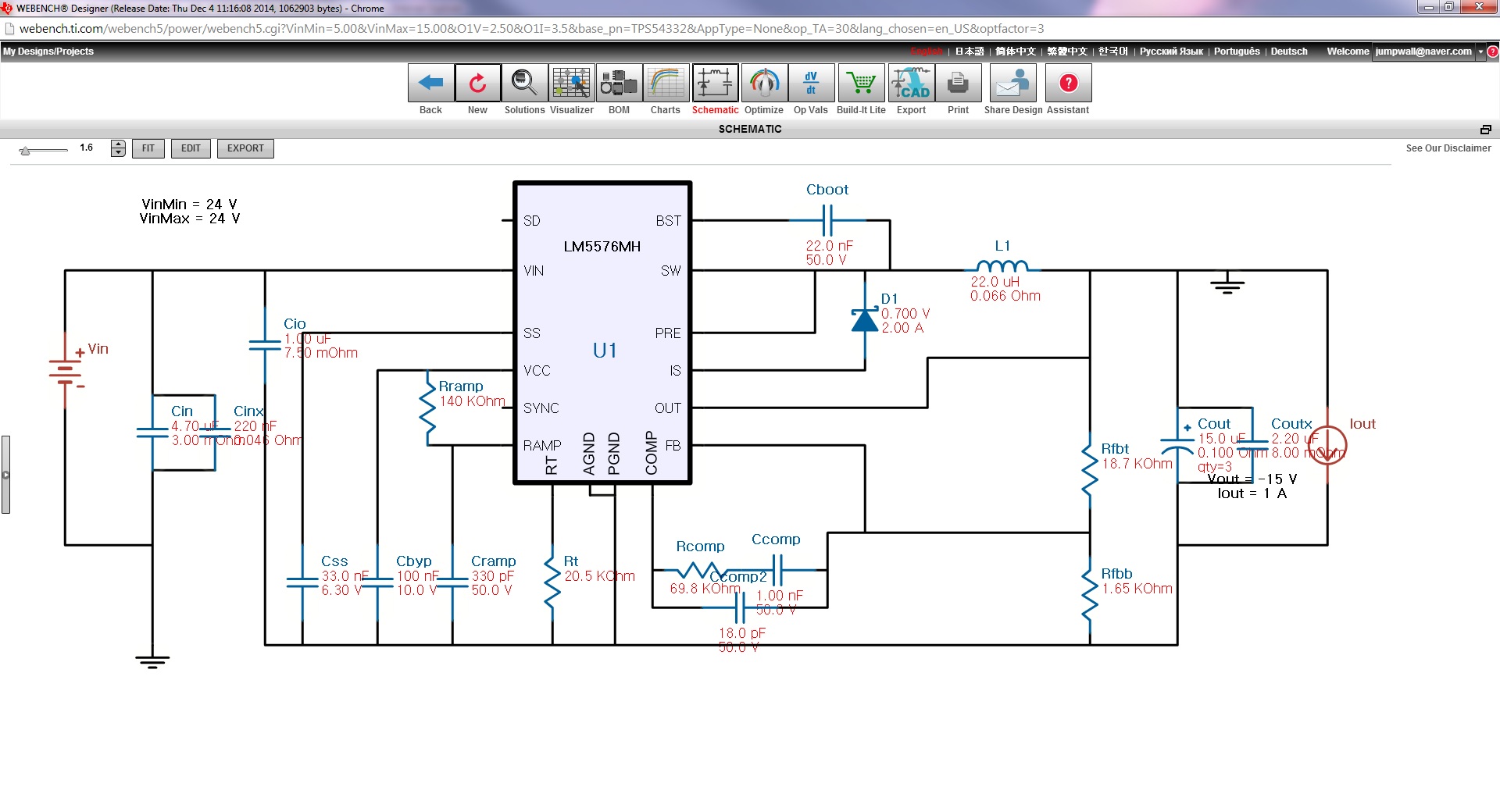

If I use LM5576MH as negative Power Source like below, should I connect Thermal pad to GND? or elsewhere?

over 10 years ago

0 Wanda Garrett - WEBENCH Design Center over 10 years ago

TI__Intellectual 2360 points

Hi,
The Exposed Pad of the LM5576 is internally connected to the ground pin of the device. In the inverting buck-boost application, the Exposed Pad should be connected to the same potential as the ground pin, which is the negative output voltage of the circuit.
