How can I print a WEBENCH schematic? 'Print' is not an option with a right mouse click. 'Print Report' does not include the schematic. Copy & Paste into Word is time consuming! tnx Dale.

Dale Yurkovich

Prodigy 40 points

Dale

over 9 years ago

0 Britt Brooks - Online Design Tools over 9 years ago

TI__Mastermind 41310 points

Dale,

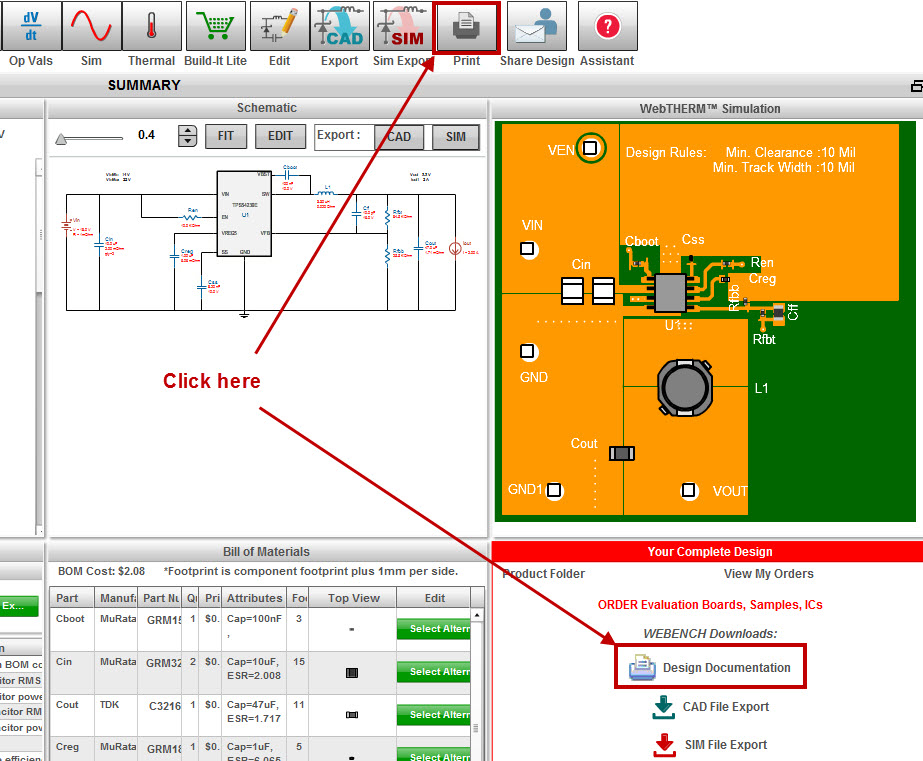

The Print Icon (Print Report) does include the schematic in the pdf file. Here is a simple example:

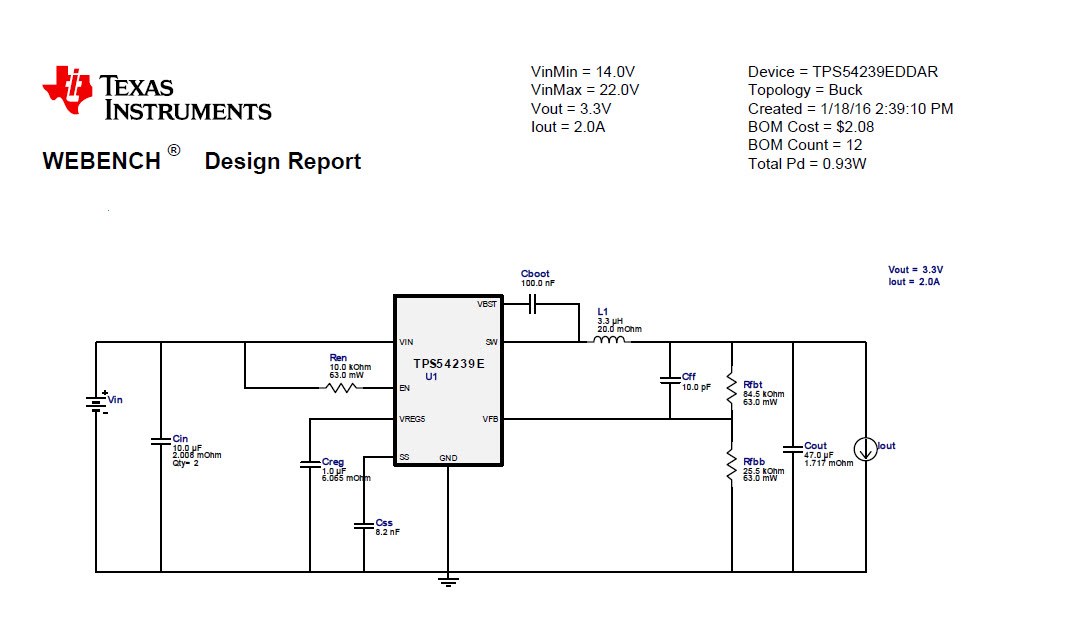

The pdf file is created and the schematic is shown as the first item:

Alternatively, you could use the snipping tool from the Schematic window and copy and paste the image into whatever document you wish.

0 Dale Yurkovich over 9 years ago in reply to Britt Brooks - Online Design Tools

Prodigy 40 points

Britt, thanks for the info. I would love to figure out why I do not have the schematic via 'Design Documentation' or 'Print Report'. Am I allowed to paste in screen shots so you can see what I am looking at? Doesn't seem that I can.

0 Britt Brooks - Online Design Tools over 9 years ago in reply to Dale Yurkovich

TI__Mastermind 41310 points

Dale,

You should be able to attach/insert files. I don't think that cut and paste works (it does not for me).

If you choose Use rich formatting, there are buttons to use to insert pictures if you save them on your PC. If you want, you can attach a word doc with all of the information you want as well. Just insert the file and it should take it.

I, too, would love to find out why the schematic is not appearing.
