How to specify a number of cycles and delay for a periodic signal in Tina-TI

Peter Borenstein

Other Parts Discussed in Thread: TINA-TI

How can I make a voltage or current generator only perform a few cycles of a signal? For example, how would I tell a current generator to wait 4 us, then give 5 periods of a sign wave? I want to see the steady state, then the signal applied, and then how the circuit settles towards that steady state.

LTSpice has settings called Ncycles and Tdelay. What are the TINA-TI equivalents?

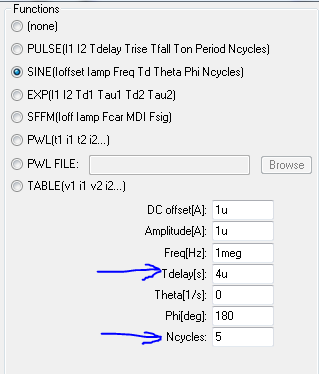

Here are screenshots of the input signal I requested for clarity:

over 9 years ago

0 Britt Brooks - Online Design Tools over 9 years ago

TI__Mastermind 41310 points

Peter,

I am not sure that TINA-TI has this exact capability. I will check into it.

0 Britt Brooks - Online Design Tools over 9 years ago

TI__Mastermind 41310 points

Peter,

I have contacted DesignSoft and they do not have an equivalent way of delaying a sine wave source or of providing a number of cycles to run only for the periodic source.

There is a delay in the general waveform for triangle and square wave functions, but not for a sine wave generator. The only option in TINA is the user defined excitation (which is ONLY available in the full version of TINA, not in TINA-TI).

I have an example of the time delayed sinusoid, but it is using a controlled source and the time based switch in TINA-TI. The source is continuous, but it is only passed when the switch is used. You could make the switch periodic and try that with the proper timings and get close to the same waveform.

Let me know if you would like to try it.

0 Peter Borenstein over 9 years ago in reply to Britt Brooks - Online Design Tools

Mastermind 8695 points

I would like to see what you have. Can you upload the file to this thread or send it so me directly?

0 Britt Brooks - Online Design Tools over 9 years ago in reply to Peter Borenstein

TI__Mastermind 41310 points

Here is the circuit:

Time delayed sinusoid source.TSC

It was used with a 3V offset for 0-6V output. You can adjust the values and timings at your leisure.

I did make the switch periodic to check it and it looks OK.
