Model for a saturable transformer in TINA

Stephen Oberholzer
Intellectual 895 points
Other Parts Discussed in Thread: TINA-TI

Is there a model available for a saturable transformer in TINA?

Thank you.

  • 0
    TI__Mastermind 41310 points

    Stephan,

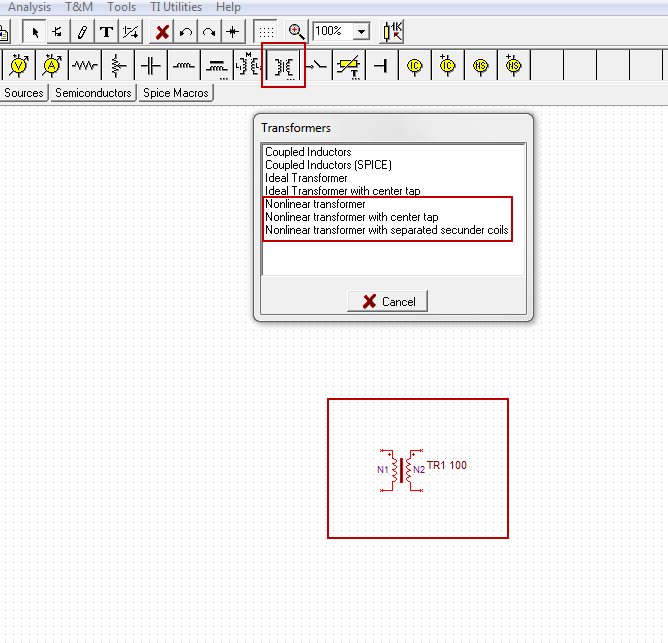

    There are transformer models that are available in TINA-TI. Some of these allow you to specify the core material and the saturation magnetization of the core, but I am not sure how the model translates this into a saturation of the coil.

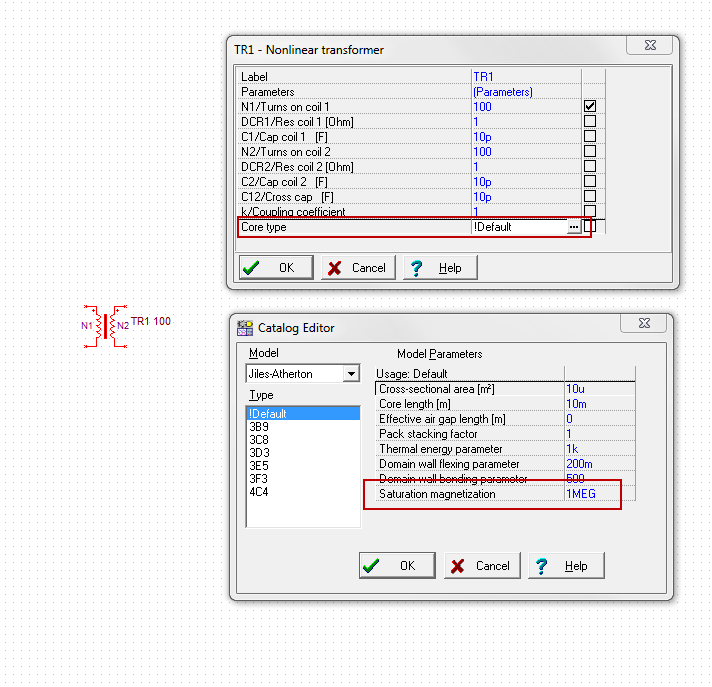

    When you select the coil, you can enter the Properties and see what is there to customize.
