Simple WEBENCH question: Pinout doesn't match part.

Jeff Bratten

Other Parts Discussed in Thread: TPS54821

WEBENCH created a design for TPS54821 following my requirements; however, when I selected "Show Pins" in schematic the pins did not match the part. Is this common with WEBENCH? It makes me a little nervous if the tool can't get match the correct pinout.

Thanks for any feedback!

over 9 years ago

0 Nikhil Gupta (Product Folder Models) over 9 years ago

TI__Mastermind 39210 points

Jeff,

For some older parts, we show a simplified schematic in WEBENCH (remove redundant pins). However if you are doing Schematic Export, it should export out the correct number of pins. Are you having issues with just the schematic or with schematic export.

0 Jeff Bratten over 9 years ago in reply to Nikhil Gupta (Product Folder Models)

Prodigy 110 points

I have not tried an export yet - its just the schematic. Its your thought the export would match the part?

0 Nikhil Gupta (Product Folder Models) over 9 years ago in reply to Jeff Bratten

TI__Mastermind 39210 points

Let me check this and get back to you.

0 Nikhil Gupta (Product Folder Models) over 9 years ago in reply to Nikhil Gupta (Product Folder Models)

TI__Mastermind 39210 points

Jeff,

Yes, the exported schematic has all the pins, but they may be stacked. Note that newer parts should show you all the pins in WEBENCH directly.

0 Jeff Bratten over 9 years ago in reply to Nikhil Gupta (Product Folder Models)

Prodigy 110 points

Thank you!

0 DMor over 9 years ago in reply to Nikhil Gupta (Product Folder Models)

Intellectual 510 points

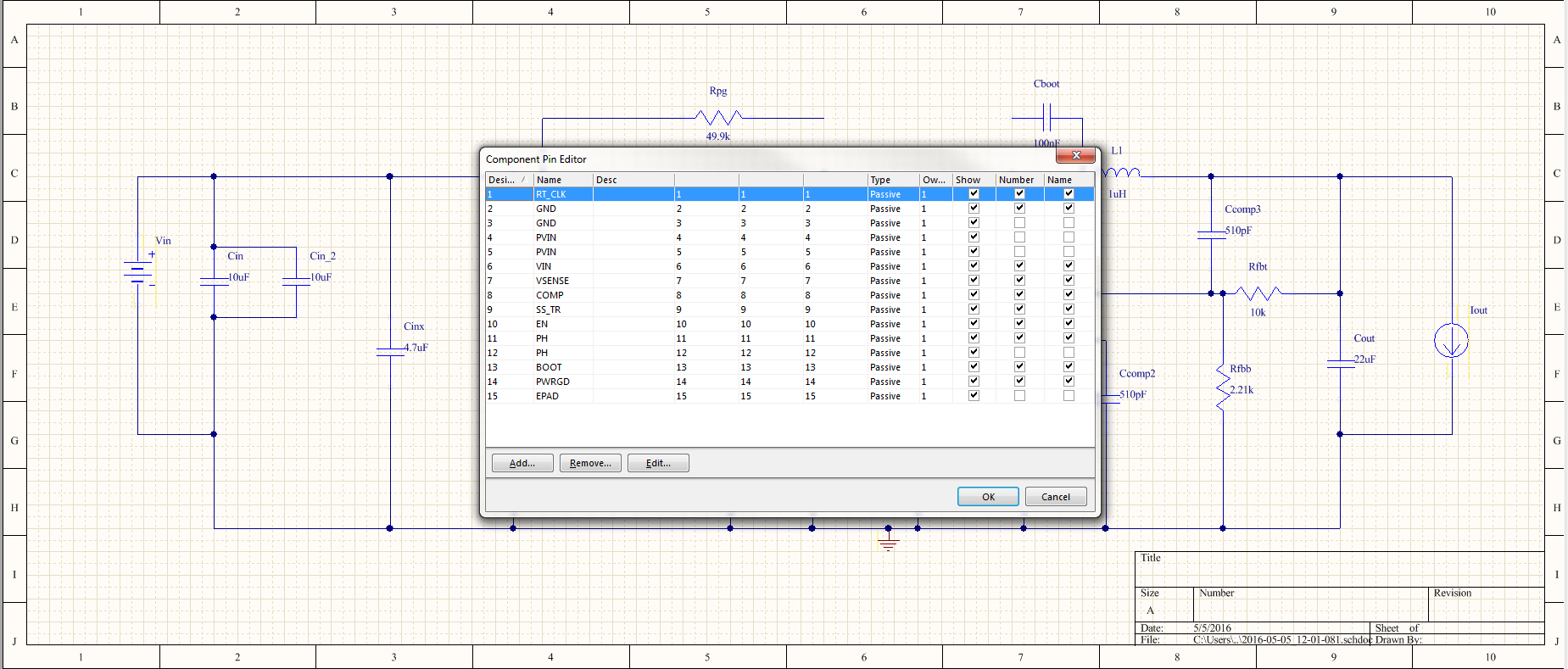

I'm using TPS54821 from webench and exported to EAGLE. The schematic symbol had 10 pins, where the actual part had 12 non-redundant pins (15 total). The eagle part itself actually had 5 pins connected to nothing, including but not limited the thermal pad (pin 15), second ground pin, and a few others.
