Osciloscop probe buton works?

Petuker Rudolf

Prodigy 100 points

Hi!

osciloscop node probe button not working ,trace always show 0v ? (analysis options /save all analysis results).

over 9 years ago

0 JC Zhu over 9 years ago

TI__Mastermind 37630 points

Petuker,

Would you mind sharing the tsc file here?

Thanks,
JC

0 Petuker Rudolf over 9 years ago in reply to JC Zhu

Prodigy 100 points

TPS54331 exemplu.TSC

0 Britt Brooks - Online Design Tools over 9 years ago in reply to Petuker Rudolf

TI__Mastermind 41310 points

Petuker,

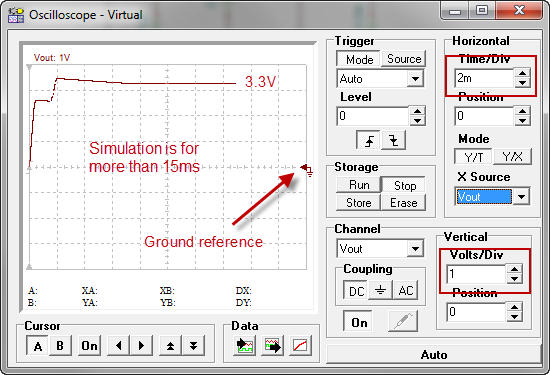

The simulation appears to be working with the oscilloscope when I use it. I would use a much larger time step, however since the simulation needs to run for quite some time before settling down:

If you run it with the 200us time that you were using, the line just looks flat, but it does go to 3.3V after 15ms of simulation time.
