Webench: Error by exporting the webench shematic to eagle version 7.7.0

Huguette Djoumsap Takam

Prodigy 30 points

Tool/software: Webench

Hi ,

i can not use the schematisch from webench in eagle. I have so many errors.

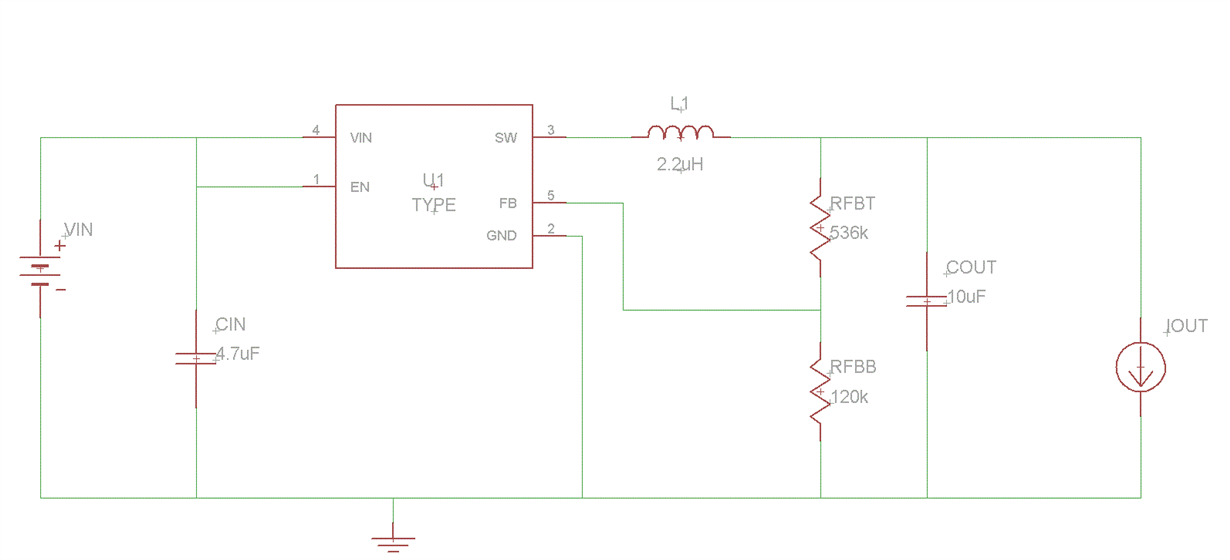

Find my schematic attachedwebench_schematic_exchange_design_4894260_2_Eagle.zip

over 7 years ago

0 Howard Chen-WEBENCH Design Center over 7 years ago

TI__Expert 6365 points

Hello Huguette,

Thank you for the support using Ti's WEBENCH tool. I took a look of your attached file and i was able to import the schematic in EAGLE 7.7.0.

I have included the converted schematic here as well.

2017-01-19_02-54-01.zip

Please note that there is a readme.txt provides the instructions on how to import the schematic, library or PCB. Please take a look and let us know if you still have trouble with importing the schematic.

0 Huguette Djoumsap Takam over 7 years ago in reply to Howard Chen-WEBENCH Design Center

Prodigy 30 points

Hi Howard,

i found no imported library for this schematic.
I´m trying to follow the instruction, but i have no .src file for this schematic.

Regards
Huguette

0 Howard Chen-WEBENCH Design Center over 7 years ago in reply to Huguette Djoumsap Takam

TI__Expert 6365 points

Hi Huguette,

The .src file is a separate file and it's contained in the same export zipped file.

Run the script from the library window and save the library file as " AcceleratedDesigns_Lib.lbr" where the schematic looked for this library name.

Go the schematic window, select Library from the tool bar and select Update; choose the newly imported library and sync each part.

Let me know if you still have trouble sync. up the library to the schematic which I have included here:

TLV62565DBV.zip

0 Huguette Djoumsap Takam over 7 years ago in reply to Howard Chen-WEBENCH Design Center

Prodigy 30 points

Thanks it works!!
